Planmeca Compact I Technical Manual page 178

Chapter G - PARTS REPLACEMENT & REPAIR

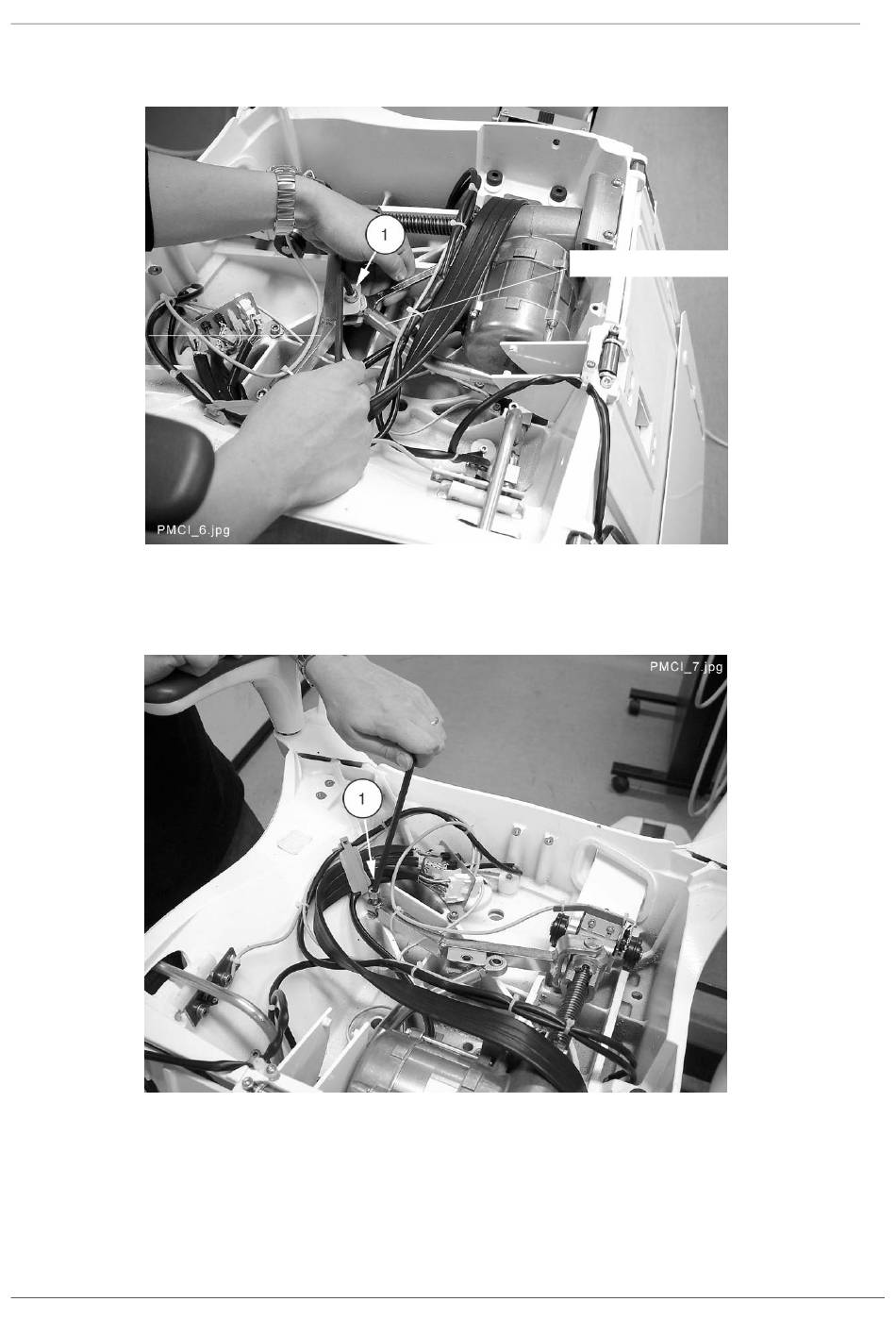

e) Detach the legrest support bar from the spindle fork assembly by unscrewing the attachment
screw using the 6mm Allen key (1).
Spindle fork
assembly
f) Detach the spindle fork assembly from the seat casting by unscrewing the attachment screw
using the 6mm Allen key (1).
G-28 Planmeca Compact i
MOTORS REPLACEMENT
Legrest support bar
Technical Manual
