MECHANICAL ADJUSTMENTS
1.7 Adjusting the side delivery arm instrument console friction
1.8 Adjusting the lifting friction of the side delivery arm
Technical Manual

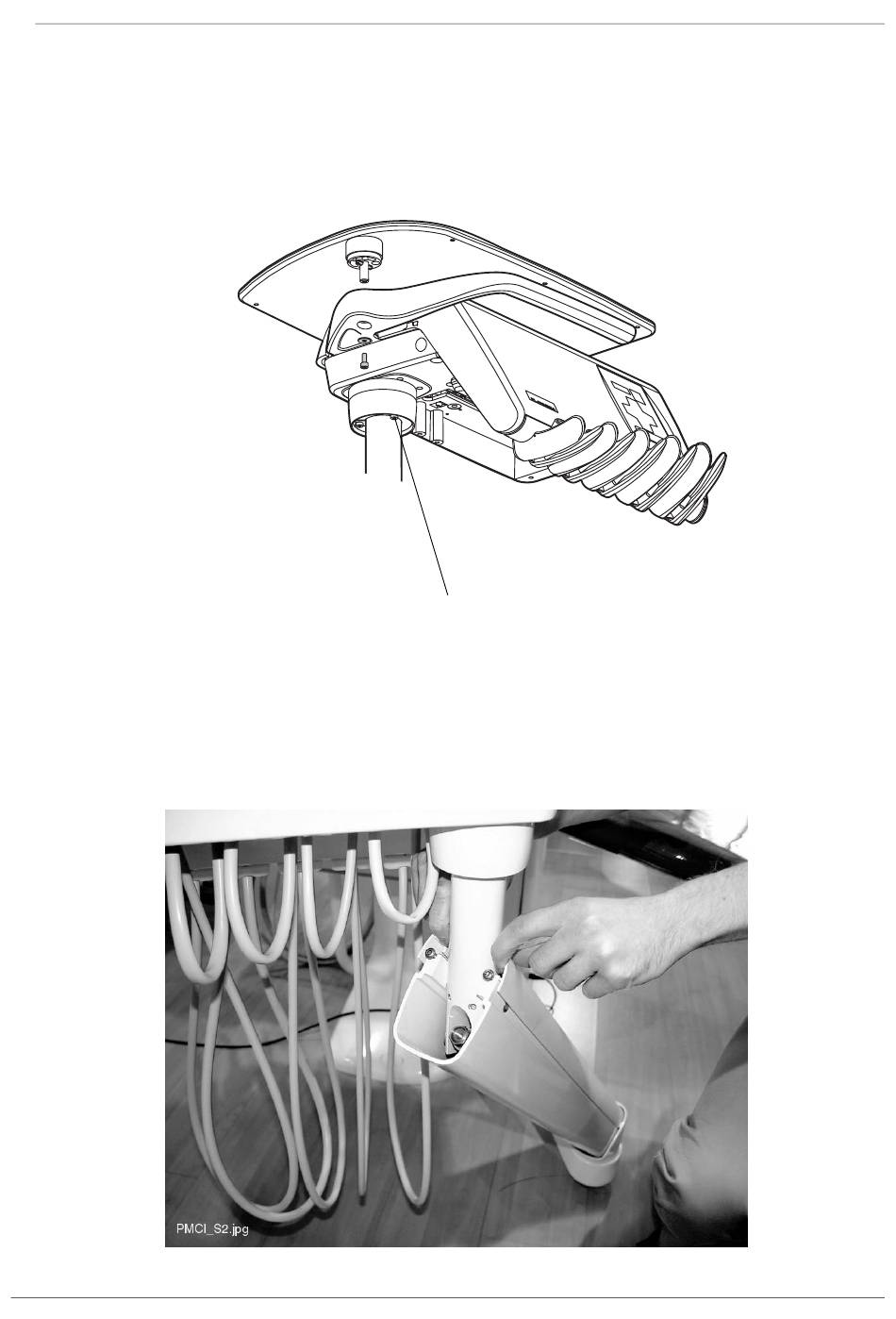

Adjust the rotational friction of the instrument console with the adjustment screw located
below the instrument console. There is a black washer below the adjustment screw (attach-
ment screws do not have washers).
Remove the level arm cover by first pulling it from its upper end with both hands as shown on
the figure below. After detaching the upper end the cover can be lifted away from its position.
Friction adjustment screw
Chapter F - ADJUSTMENTS
Planmeca Compact i F-11
