Chapter
F

1 MECHANICAL ADJUSTMENTS

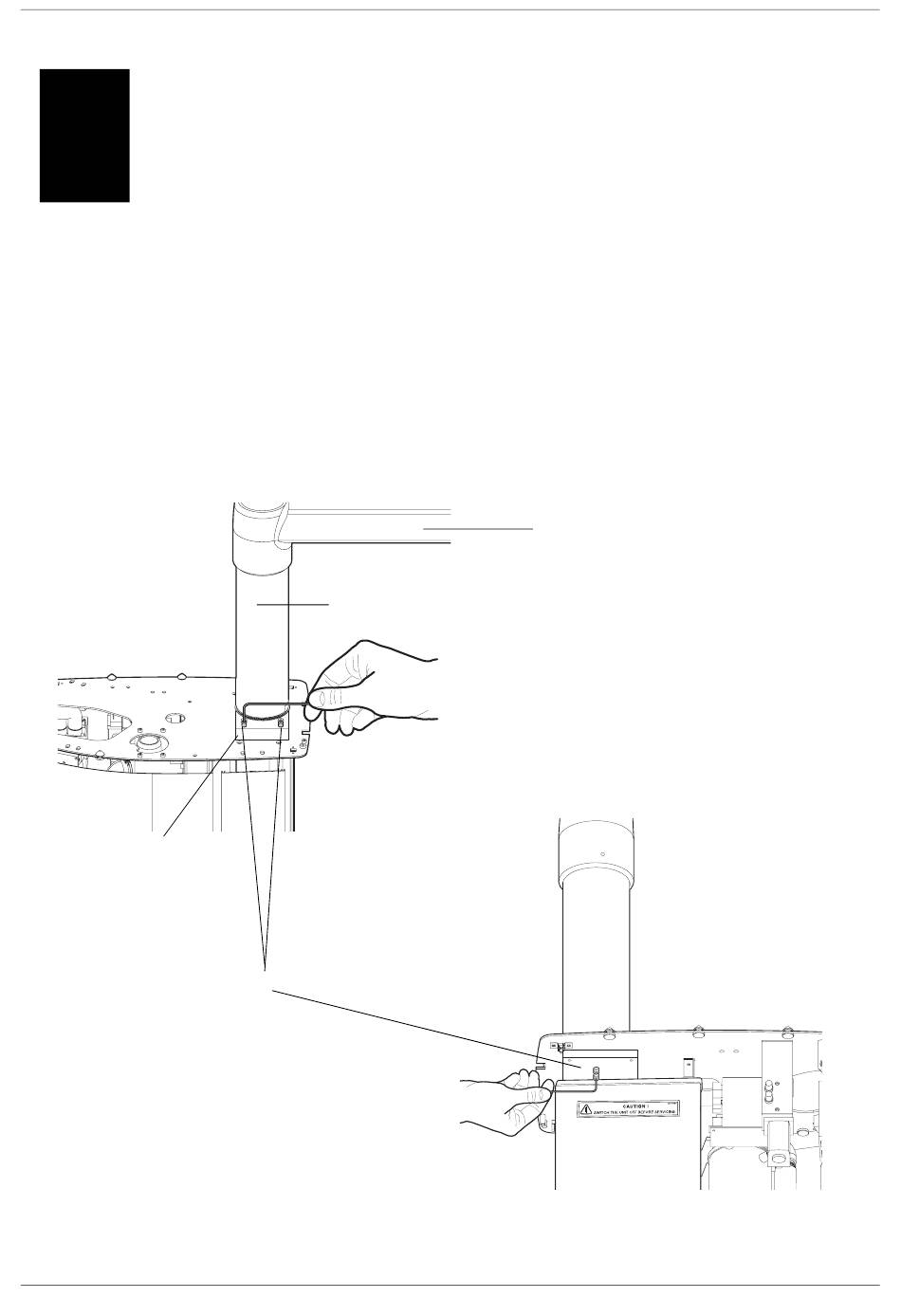

1.1 Adjusting vertical position of the OP delivery arm column

The console arm column must be vertical. You may have to adjust its position, if the floor is
very inclined.
Console arm adapter
Adjustment screws
Technical Manual
ADJUSTMENTS
Console arm
column
Console arm
To adjust the vertical position of the console arm col-
umn:
1. Remove the bowl.
2. Remove the cuspidor covers.
3. Adjust the position of the console arm adapter with
the three M8x12 DIN 913 adjustment screws sup-
plied with the mounting accessories. Refer to the fig-
ures for the location of the three holes.
4. Reassemble in reverse order.
Planmeca Compact i F-1
