MECHANICAL ADJUSTMENTS

1.4 Adjusting angle of the OP delivery arm instrument console

a)
b)
c)
d)

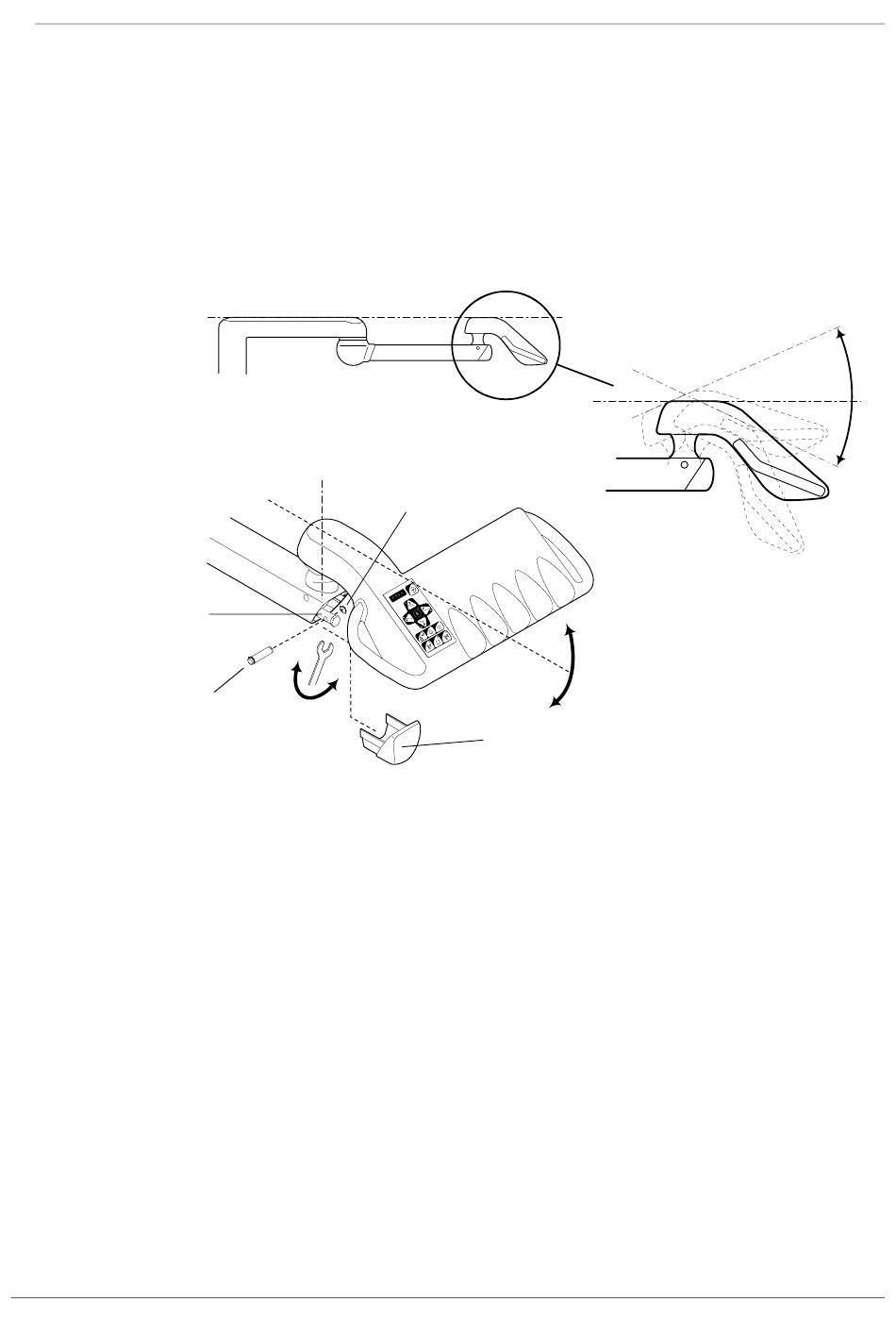

Lower joint
adjustment screw
Lower joint
pin (short)
Technical Manual
Remove the lifting arm cover.
Remove the ø8 DIN 471 locking ring and pull out the lower joint pin (short).
Adjust the angle of the instrument console by turning the lower joint adjustment screw with a
15mm set wrench. The angle is preset at the factory to level with the rotating arm.
Assemble the lower joint in reverse order.
The angle is preset at the factory
to level with the rotating arm.
Locking ring
ø8 DIN 471
Lifting arm cover
