b) To exit the foot control calibration mode, press the calibration switch briefly with the
screwdriver. The blinking sequence of the indicator light inside the foot control cover alters.
Calibrating the foot control
a) Enter foot control calibration mode.
b) Move the foot control pedal to the leftmost position.
Press the pedal down and hold. While holding,
move the chair control briefly to the 'chair up'
direction. Release the foot control pedal.
c) Move the foot control pedal to the leftmost position
and hold. While holding, move the chair control
briefly to the 'chair up' direction. Release the foot
control pedal.
d) Press the foot control pedal downwards and hold.
While holding, move the chair control briefly to
the 'chair up' direction. Release the foot control
pedal.
e) Remain the foot control pedal at the center position.
Move the chair control briefly to the 'chair up'
direction.
f) Move the foot control pedal to the rightmost position.
Press the pedal down and hold. While holding,
move the chair control briefly to the 'chair up'
direction. Release the foot control pedal.
g) Move the foot control pedal to the rightmost position
and hold. While holding, move the chair control
briefly to the 'chair up' direction. Release the foot
control pedal.
h) Exit foot control calibration mode.
H-16 Planmeca Compact i

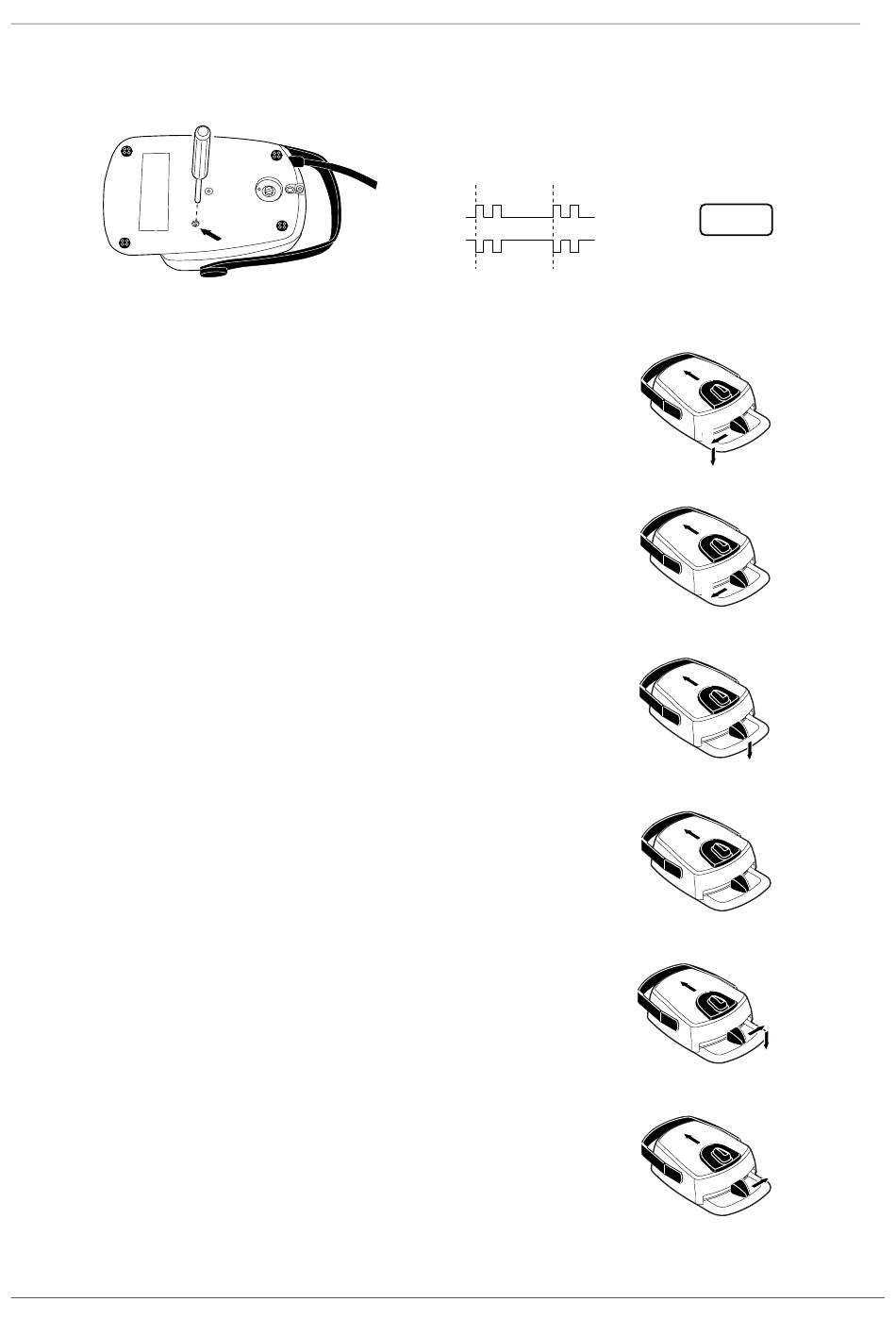

BLINKING SEQUENCE OF
