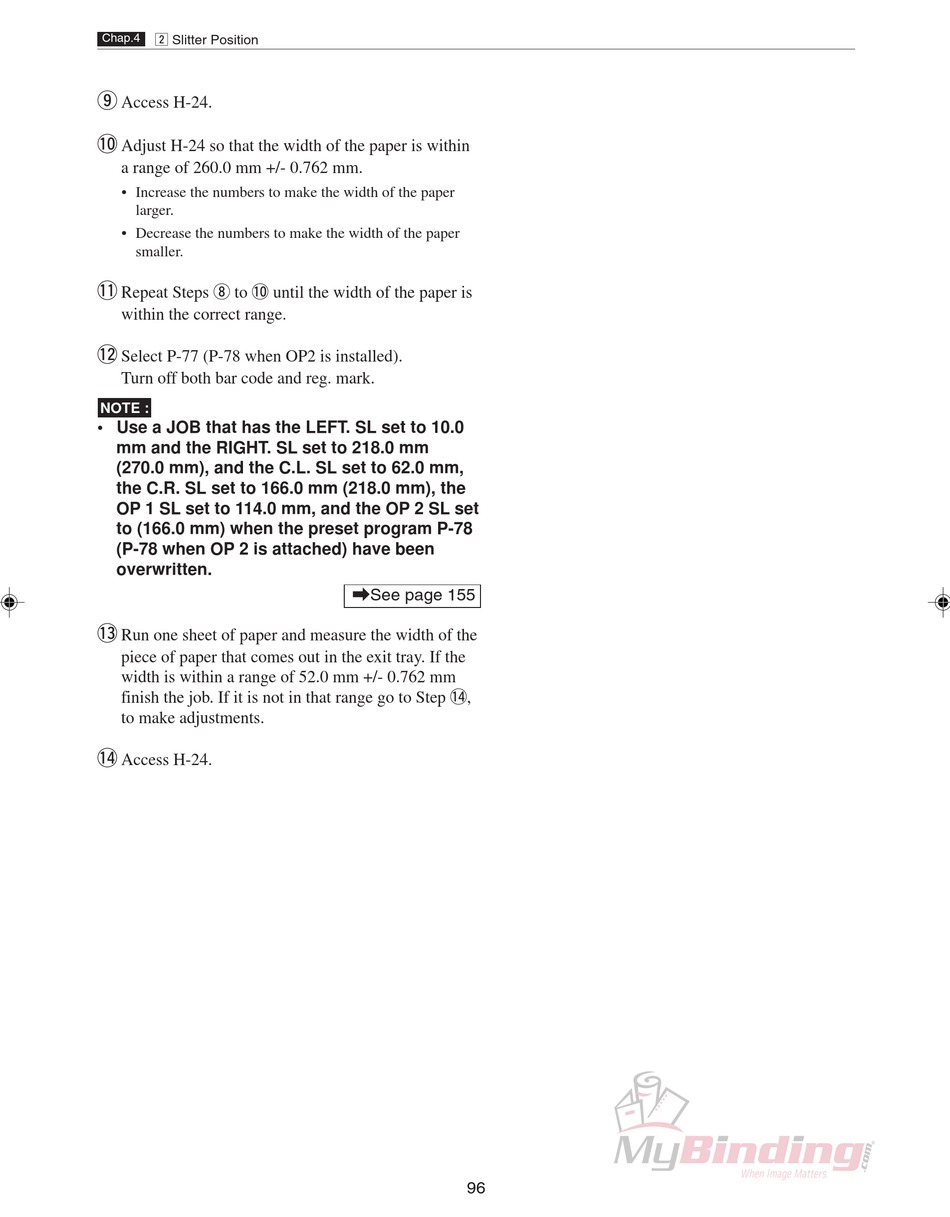

MyBinding DC-545HC Service Manual page 99

x Slitter Position
Chap.4
o
Access H-24.
!0
Adjust H-24 so that the width of the paper is within
a range of 260.0 mm +/- 0.762 mm.
• Increase the numbers to make the width of the paper
larger.
• Decrease the numbers to make the width of the paper
smaller.
!1
Repeat Steps i to !0 until the width of the paper is
within the correct range.
!2
Select P-77 (P-78 when OP2 is installed).
Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the LEFT. SL set to 10.0
mm and the RIGHT. SL set to 218.0 mm
(270.0 mm), and the C.L. SL set to 62.0 mm,
the C.R. SL set to 166.0 mm (218.0 mm), the
OP 1 SL set to 114.0 mm, and the OP 2 SL set
to (166.0 mm) when the preset program P-78
(P-78 when OP 2 is attached) have been
overwritten.
!3
Run one sheet of paper and measure the width of the
piece of paper that comes out in the exit tray. If the
width is within a range of 52.0 mm +/- 0.762 mm
finish the job. If it is not in that range go to Step !4 ,
to make adjustments.
!4
Access H-24.
\See page 155
96
