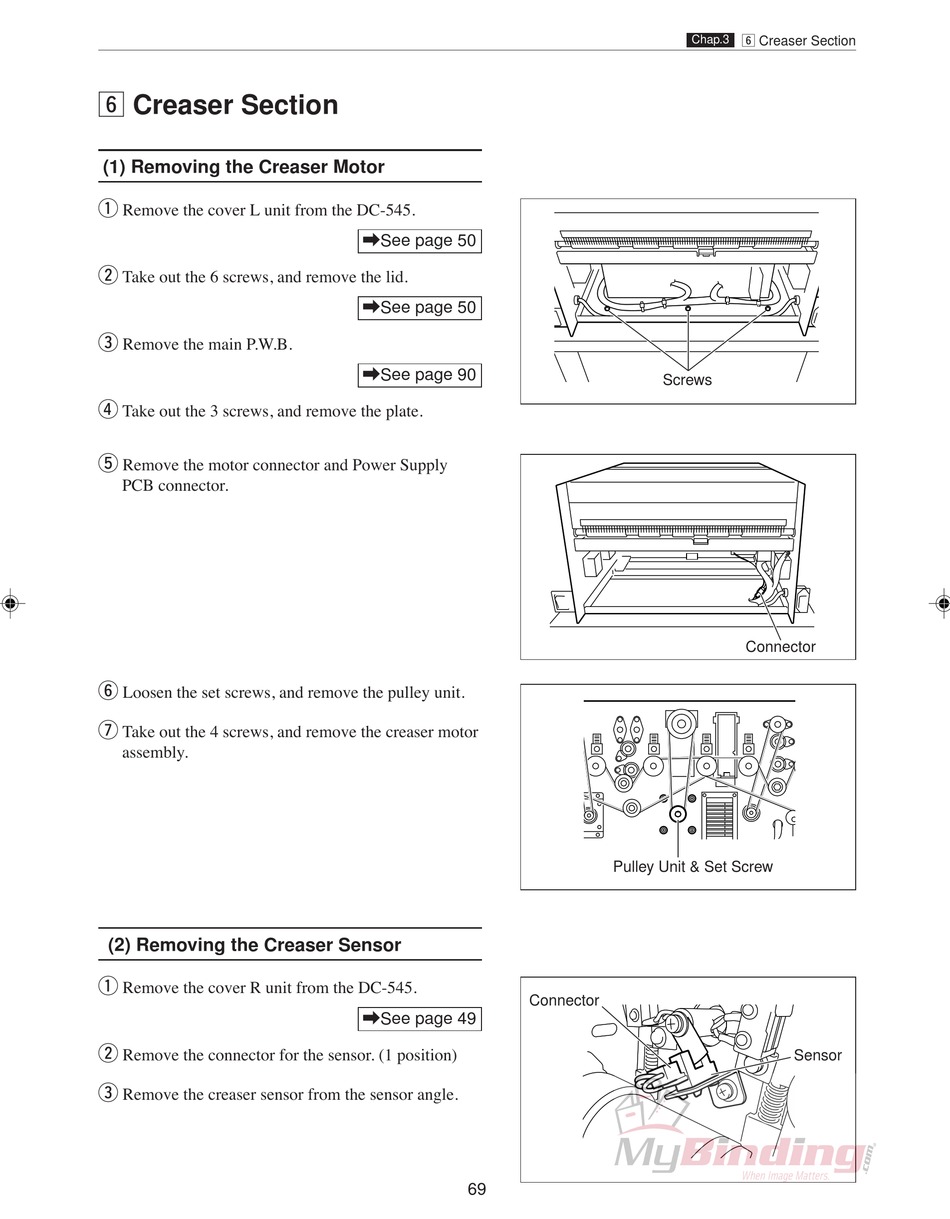

n Creaser Section

(1) Removing the Creaser Motor

q
Remove the cover L unit from the DC-545.
w
Take out the 6 screws, and remove the lid.
e
Remove the main P.W.B.
r
Take out the 3 screws, and remove the plate.
t
Remove the motor connector and Power Supply
PCB connector.
y
Loosen the set screws, and remove the pulley unit.
u
Take out the 4 screws, and remove the creaser motor
assembly.

(2) Removing the Creaser Sensor

q
Remove the cover R unit from the DC-545.
w
Remove the connector for the sensor. (1 position)
e
Remove the creaser sensor from the sensor angle.
\See page 50
\See page 50
\See page 90
\See page 49
69
Screws
Pulley Unit & Set Screw
Connector
n Creaser Section
Chap.3
Connector
Sensor
