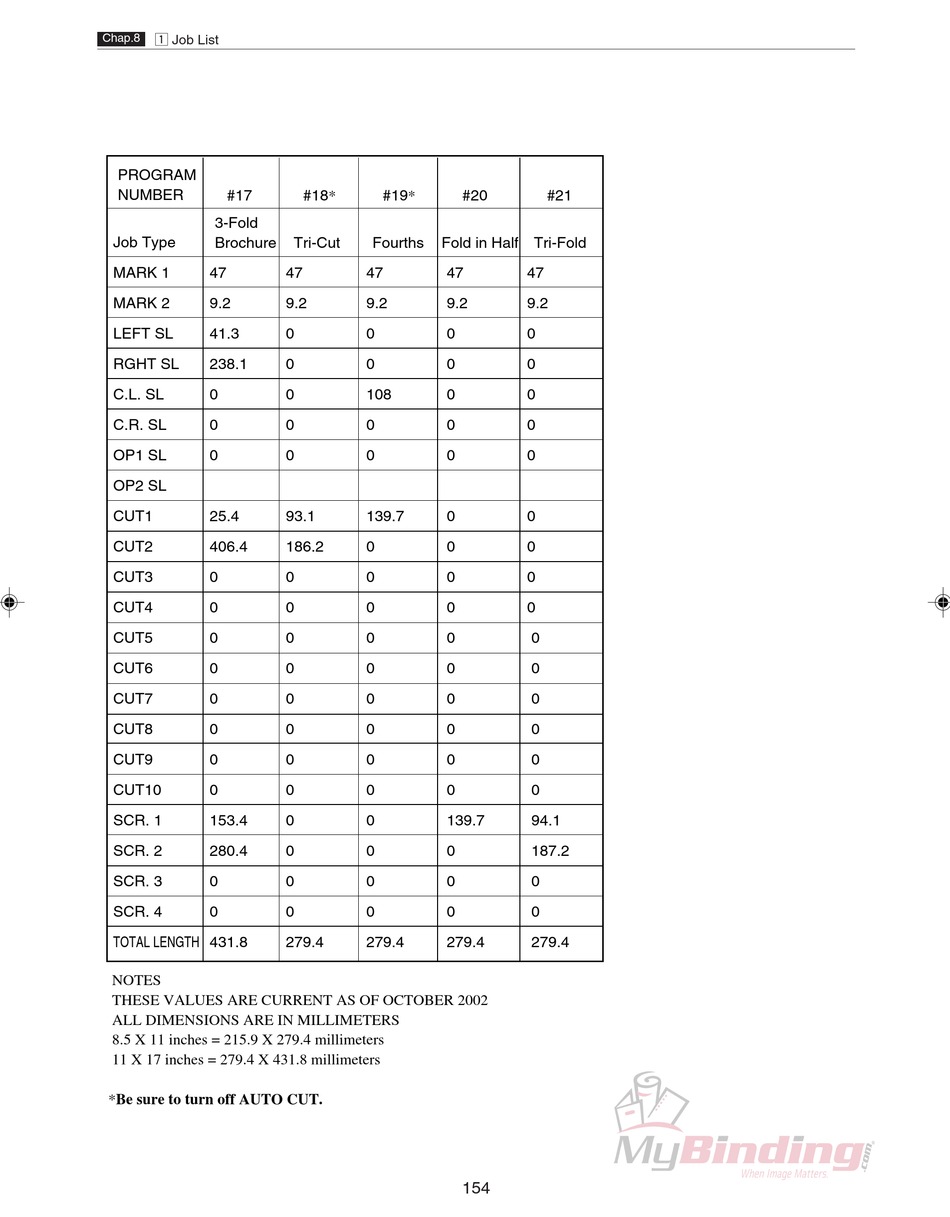

MyBinding DC-545HC Service Manual page 157

z Job List
Chap.8
PROGRAM
NUMBER
#17
3-Fold
Job Type Brochure
MARK 1 47
MARK 2 9.2
LEFT SL 41.3
RGHT SL 238.1
C.L. SL 0
C.R. SL 0
OP1 SL 0
OP2 SL
CUT1 25.4
CUT2 406.4
CUT3 0
CUT4 0
CUT5 0
CUT6 0
CUT7 0
CUT8 0
CUT9 0
CUT10 0
SCR. 1 153.4
SCR. 2 280.4
SCR. 3 0
SCR. 4 0
TOTAL LENGTH 431.8
NOTES
THESE VALUES ARE CURRENT AS OF OCTOBER 2002
ALL DIMENSIONS ARE IN MILLIMETERS
8.5 X 11 inches = 215.9 X 279.4 millimeters
11 X 17 inches = 279.4 X 431.8 millimeters
*Be sure to turn off AUTO CUT.
#18* #19*
Tri-Cut Fourths Fold in Half Tri-Fold
47 47
9.2 9.2
0 0
0 0
0 108
0 0
0 0
93.1 139.7
186.2 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
279.4 279.4
#20 #21
47 47
9.2 9.2
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
139.7 94.1
0 187.2
0 0
0 0
279.4 279.4
154
