, Driving Section
Chap.3

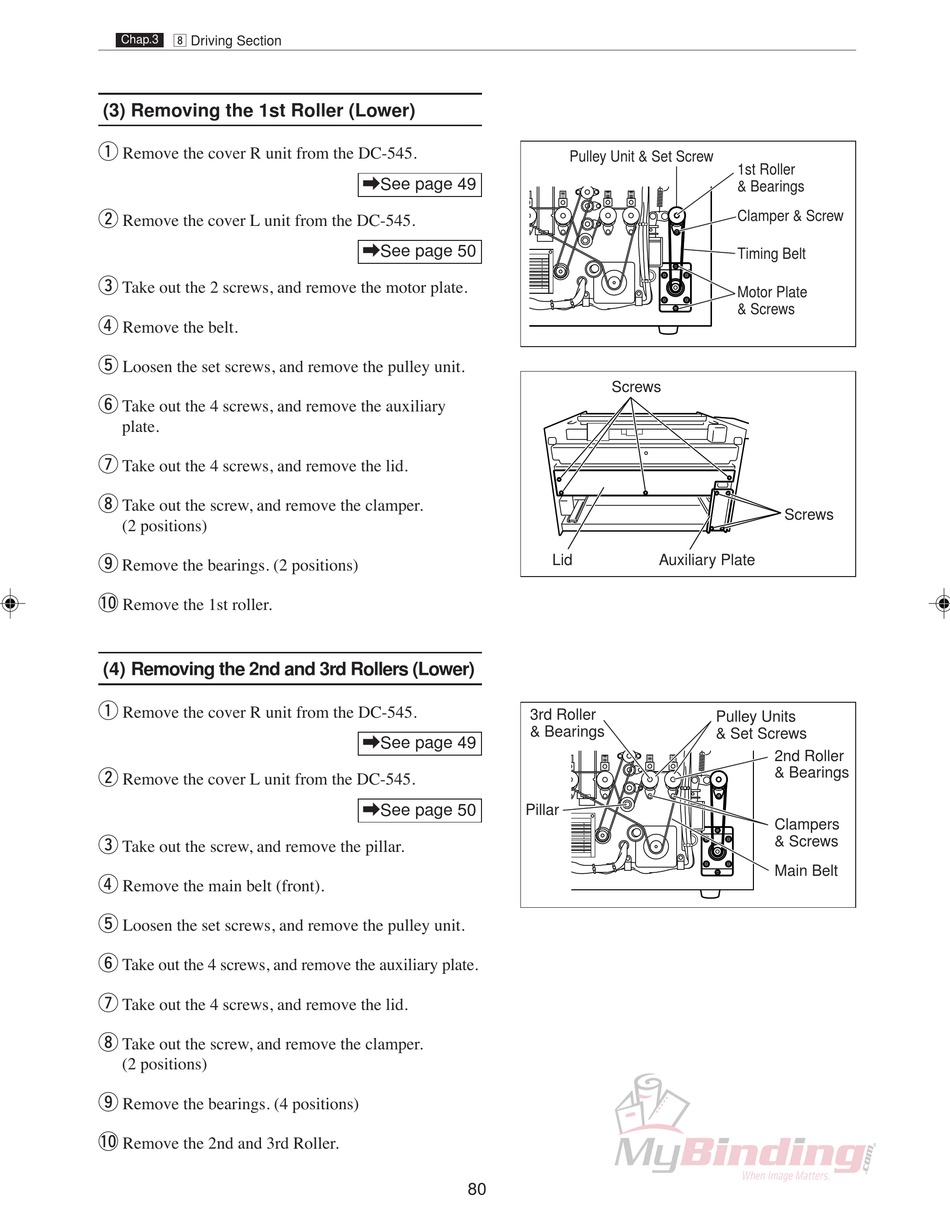

(3) Removing the 1st Roller (Lower)

q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the 2 screws, and remove the motor plate.
r
Remove the belt.
t
Loosen the set screws, and remove the pulley unit.
y
Take out the 4 screws, and remove the auxiliary
plate.
u
Take out the 4 screws, and remove the lid.
i
Take out the screw, and remove the clamper.
(2 positions)
o
Remove the bearings. (2 positions)
!0
Remove the 1st roller.

(4) Removing the 2nd and 3rd Rollers (Lower)

q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the screw, and remove the pillar.
r
Remove the main belt (front).
t
Loosen the set screws, and remove the pulley unit.
y
Take out the 4 screws, and remove the auxiliary plate.
u
Take out the 4 screws, and remove the lid.
i
Take out the screw, and remove the clamper.
(2 positions)
o
Remove the bearings. (4 positions)
!0
Remove the 2nd and 3rd Roller.
\See page 49
\See page 50
\See page 49
\See page 50
80
Pulley Unit & Set Screw
Screws
Lid Auxiliary Plate
3rd Roller
& Bearings
Pillar
1st Roller
& Bearings
Clamper & Screw
Timing Belt
Motor Plate
& Screws
Screws
Pulley Units
& Set Screws
2nd Roller
& Bearings
Clampers
& Screws
Main Belt
