z Paper Feed Unit
Chap.2

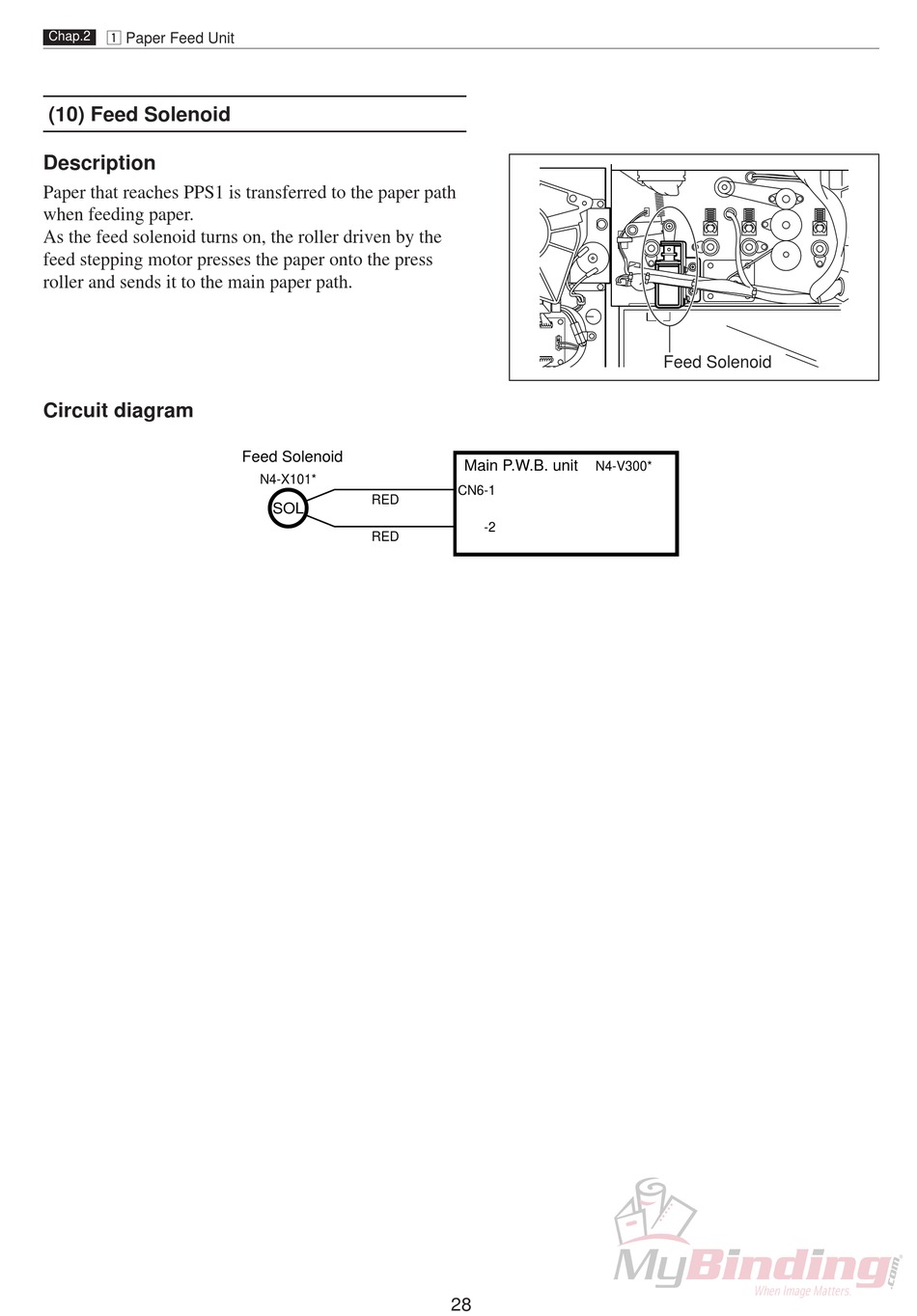

(10) Feed Solenoid

Description
Paper that reaches PPS1 is transferred to the paper path
when feeding paper.
As the feed solenoid turns on, the roller driven by the
feed stepping motor presses the paper onto the press
roller and sends it to the main paper path.
Circuit diagram
Feed Solenoid
N4-X101*
RED
SOL
RED
Main P.W.B. unit
N4-V300*
CN6-1
-2
28
