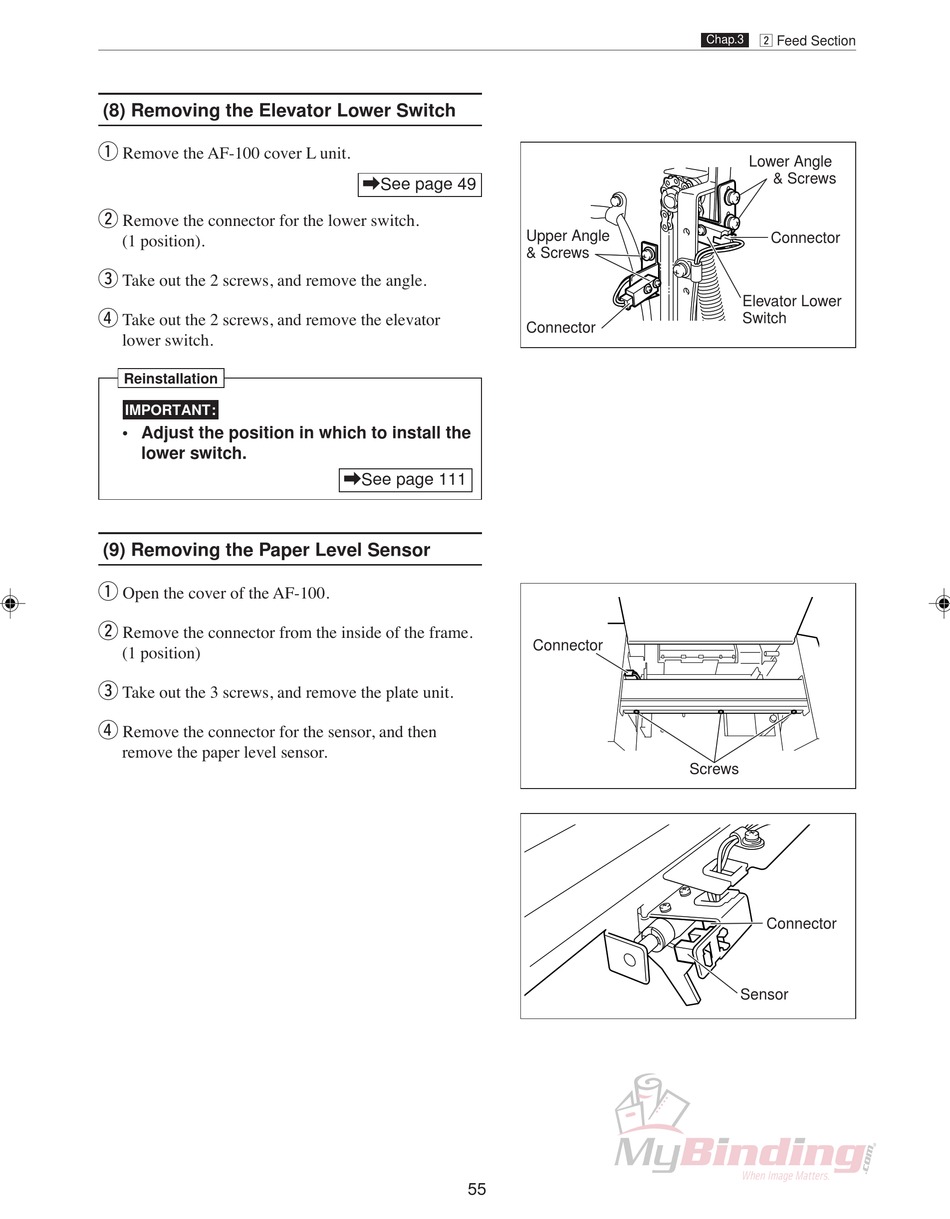

(8) Removing the Elevator Lower Switch

q
Remove the AF-100 cover L unit.
w
Remove the connector for the lower switch.
(1 position).
e
Take out the 2 screws, and remove the angle.
r
Take out the 2 screws, and remove the elevator
lower switch.
Reinstallation
IMPORTANT:
• Adjust the position in which to install the
lower switch.

(9) Removing the Paper Level Sensor

q
Open the cover of the AF-100.
w
Remove the connector from the inside of the frame.
(1 position)
e
Take out the 3 screws, and remove the plate unit.
r
Remove the connector for the sensor, and then
remove the paper level sensor.
\See page 49
\See page 111
55
Upper Angle
& Screws
Connector
Connector
x Feed Section
Chap.3
Lower Angle
& Screws
Connector
Elevator Lower
Switch
Screws
Connector
Sensor
