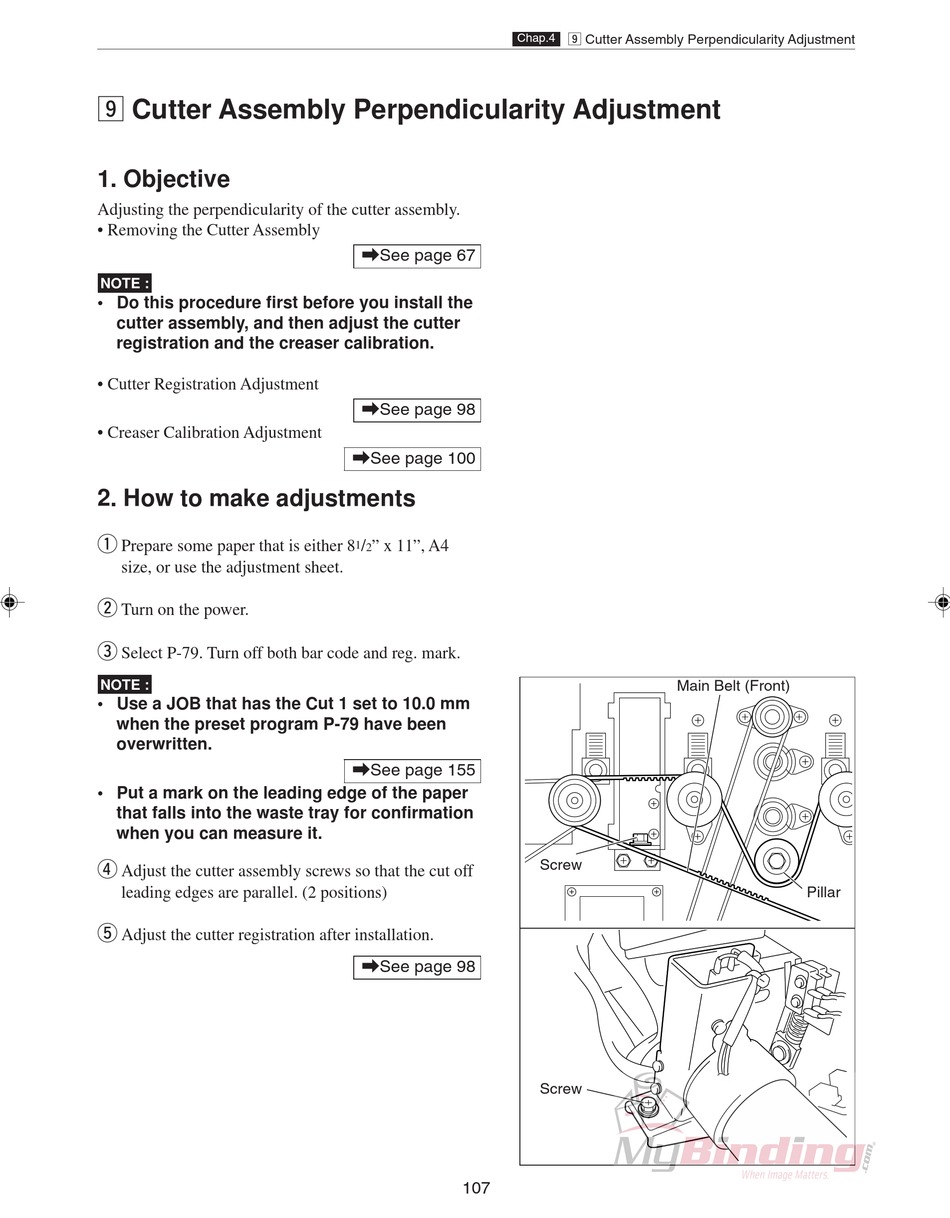

. Cutter Assembly Perpendicularity Adjustment

1. Objective

Adjusting the perpendicularity of the cutter assembly.
• Removing the Cutter Assembly
NOTE :
• Do this procedure first before you install the
cutter assembly, and then adjust the cutter
registration and the creaser calibration.
• Cutter Registration Adjustment
• Creaser Calibration Adjustment

2. How to make adjustments

q
Prepare some paper that is either 8
size, or use the adjustment sheet.
w
Turn on the power.
e
Select P-79. Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the Cut 1 set to 10.0 mm
when the preset program P-79 have been
overwritten.
• Put a mark on the leading edge of the paper
that falls into the waste tray for confirmation
when you can measure it.
r
Adjust the cutter assembly screws so that the cut off
leading edges are parallel. (2 positions)
t
Adjust the cutter registration after installation.
\See page 67
\See page 98
\See page 100
/ " x 11", A4
1
2
\See page 155
\See page 98
107
Chap.4

. Cutter Assembly Perpendicularity Adjustment

Screw
Screw
Main Belt (Front)
Pillar
