c Part Names and Functions
Chap.1

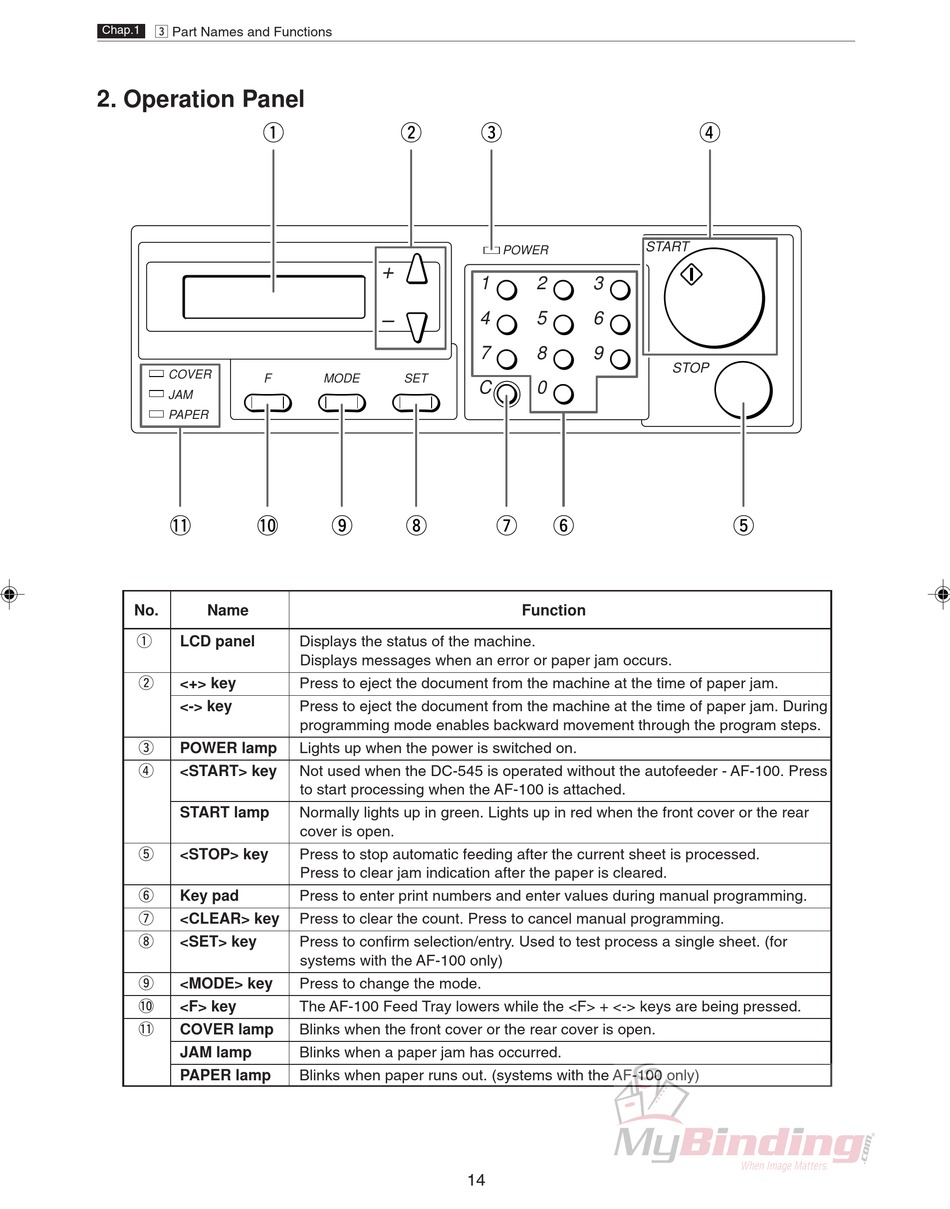

2. Operation Panel

COVER
JAM
PAPER
!1
No. Name
q
LCD panel
w
<+> key
<-> key
e
POWER lamp
r
<START> key
START lamp
t
<STOP> key
y
Key pad
u
<CLEAR> key
i
<SET> key
o
<MODE> key
!0
<F> key
!1
COVER lamp
JAM lamp
PAPER lamp
q w
+
–
F MODE SET
!0 o i
Displays the status of the machine.
Displays messages when an error or paper jam occurs.
Press to eject the document from the machine at the time of paper jam.
Press to eject the document from the machine at the time of paper jam. During
programming mode enables backward movement through the program steps.
Lights up when the power is switched on.
Not used when the DC-545 is operated without the autofeeder - AF-100. Press
to start processing when the AF-100 is attached.
Normally lights up in green. Lights up in red when the front cover or the rear
cover is open.
Press to stop automatic feeding after the current sheet is processed.
Press to clear jam indication after the paper is cleared.
Press to enter print numbers and enter values during manual programming.
Press to clear the count. Press to cancel manual programming.
Press to confirm selection/entry. Used to test process a single sheet. (for
systems with the AF-100 only)
Press to change the mode.
The AF-100 Feed Tray lowers while the <F> + <-> keys are being pressed.
Blinks when the front cover or the rear cover is open.
Blinks when a paper jam has occurred.
Blinks when paper runs out. (systems with the AF-100 only)
e
POWER
1 2 3
4 5 6
7 8 9
C 0
u y
Function
14
r
START
STOP
t
