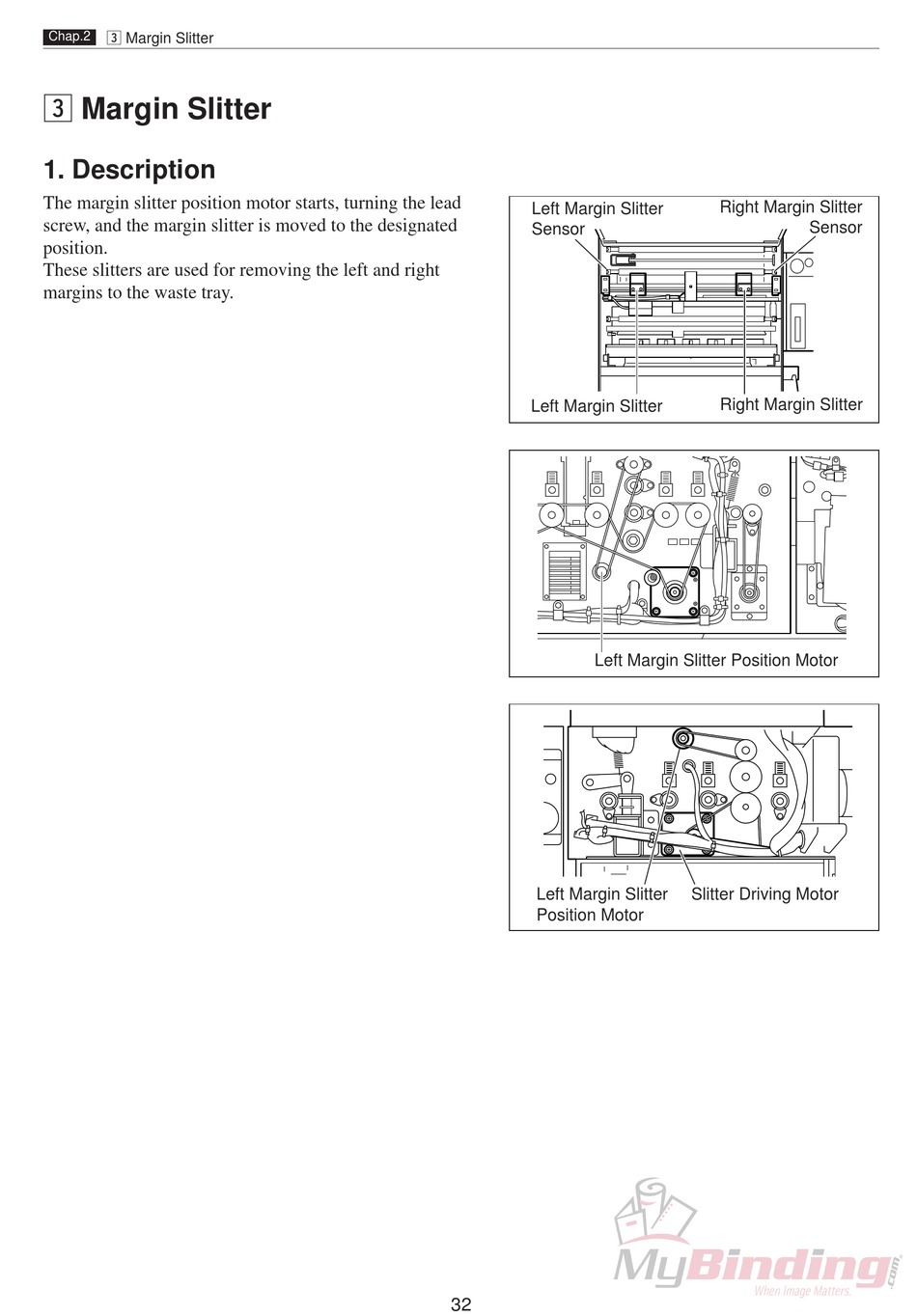

1. Description

The margin slitter position motor starts, turning the lead
screw, and the margin slitter is moved to the designated
position.
These slitters are used for removing the left and right
margins to the waste tray.
Left Margin Slitter
Sensor
Left Margin Slitter
Left Margin Slitter Position Motor
Left Margin Slitter
Position Motor
32
Right Margin Slitter
Sensor
Right Margin Slitter
Slitter Driving Motor
