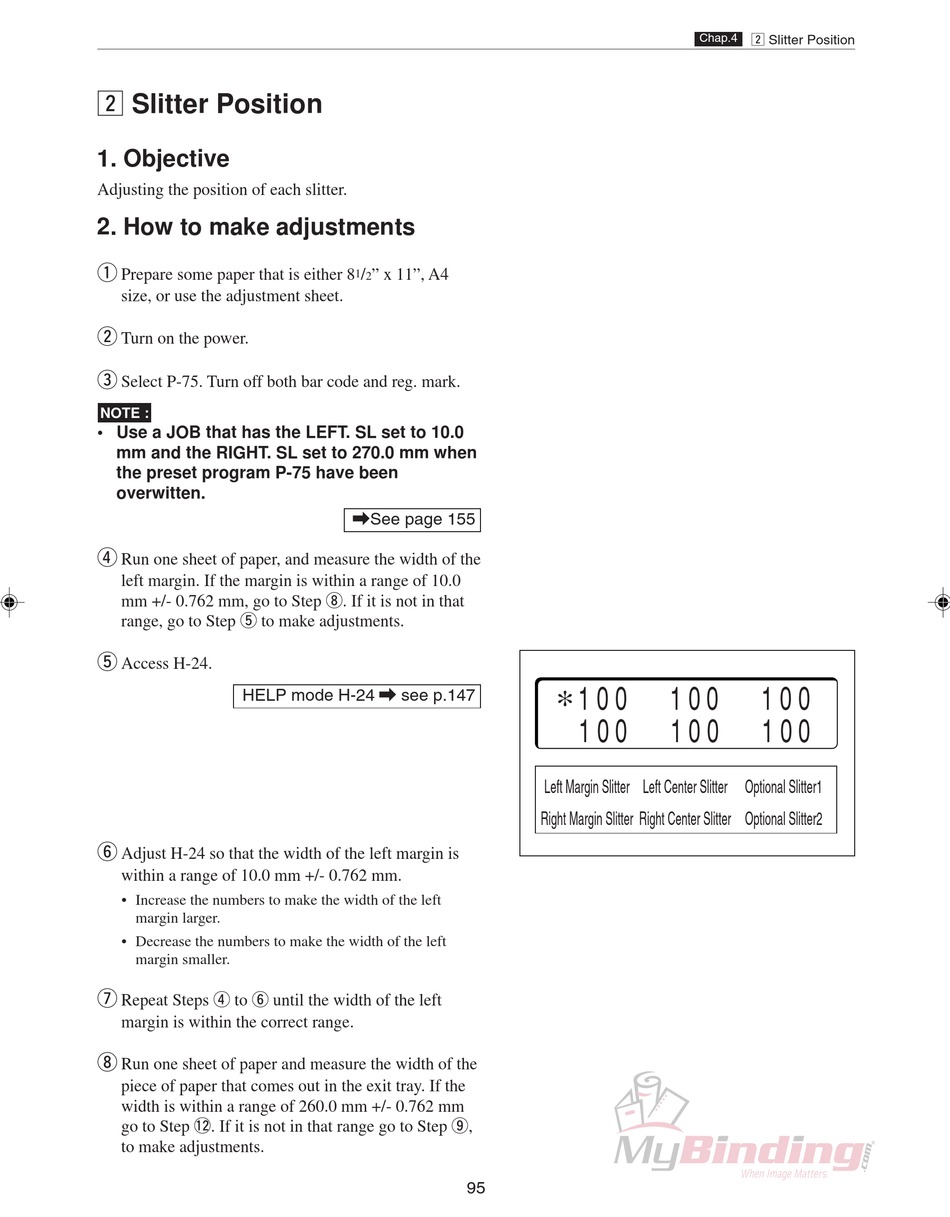

x Slitter Position

1. Objective

Adjusting the position of each slitter.

2. How to make adjustments

q
Prepare some paper that is either 8
size, or use the adjustment sheet.
w
Turn on the power.
e
Select P-75. Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the LEFT. SL set to 10.0
mm and the RIGHT. SL set to 270.0 mm when
the preset program P-75 have been
overwitten.
r
Run one sheet of paper, and measure the width of the
left margin. If the margin is within a range of 10.0
mm +/- 0.762 mm, go to Step i. If it is not in that
range, go to Step t to make adjustments.
t
Access H-24.
HELP mode H-24 \ see p.147
y
Adjust H-24 so that the width of the left margin is
within a range of 10.0 mm +/- 0.762 mm.
• Increase the numbers to make the width of the left
margin larger.
• Decrease the numbers to make the width of the left
margin smaller.
u
Repeat Steps r to y until the width of the left
margin is within the correct range.
i
Run one sheet of paper and measure the width of the
piece of paper that comes out in the exit tray. If the
width is within a range of 260.0 mm +/- 0.762 mm
go to Step !2 . If it is not in that range go to Step o,
to make adjustments.
/ " x 11", A4
1
2
\See page 155
95
∗
100 100
100 100
Left Margin Slitter Left Center Slitter
Right Margin Slitter Right Center Slitter
x Slitter Position
Chap.4
100
100
Optional Slitter1
Optional Slitter2
