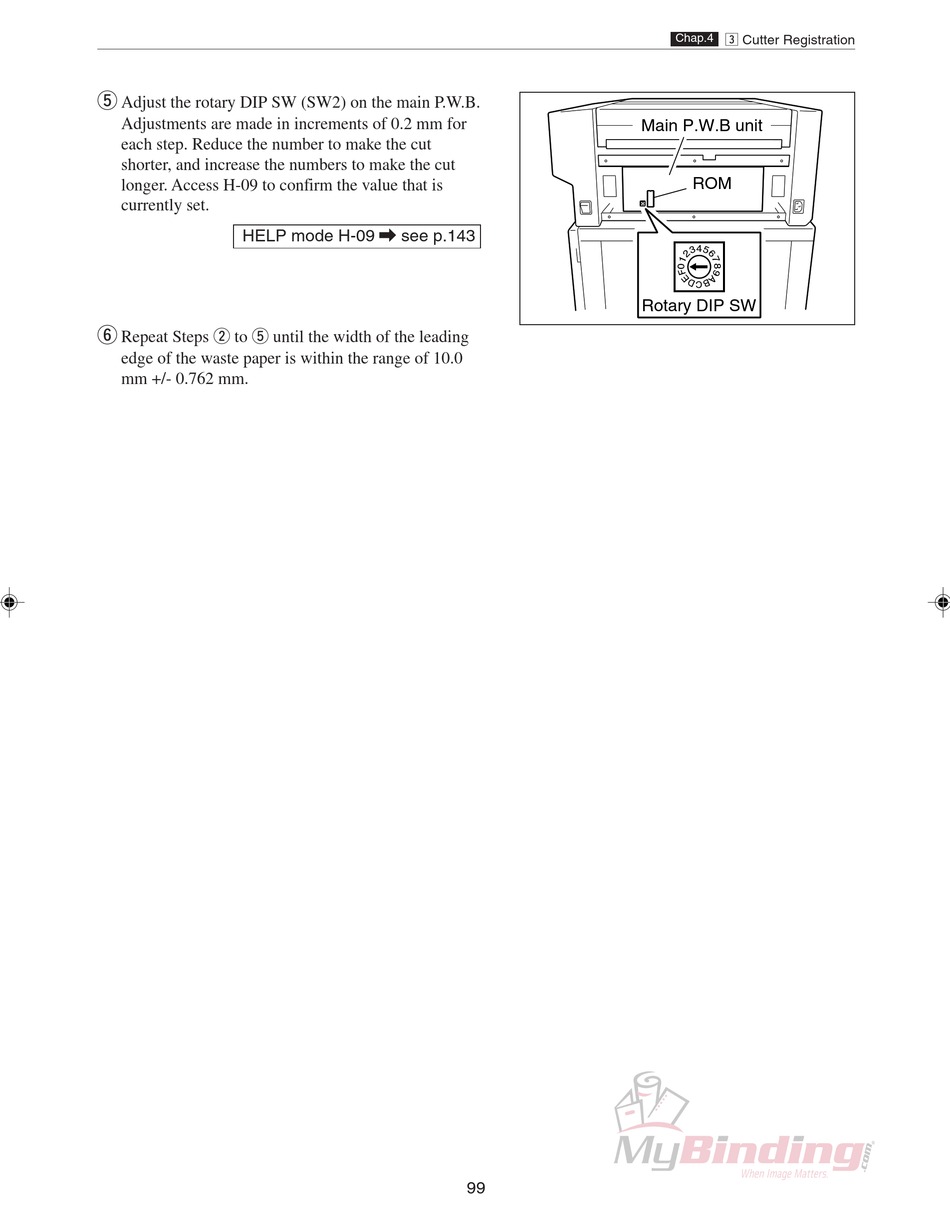

Adjust the rotary DIP SW (SW2) on the main P.W.B.
Adjustments are made in increments of 0.2 mm for
each step. Reduce the number to make the cut
shorter, and increase the numbers to make the cut
longer. Access H-09 to confirm the value that is
currently set.
HELP mode H-09 \ see p.143
y
Repeat Steps w to t until the width of the leading
edge of the waste paper is within the range of 10.0
mm +/- 0.762 mm.
99
c Cutter Registration
Chap.4
Main P.W.B unit
ROM
4
Rotary DIP SW
