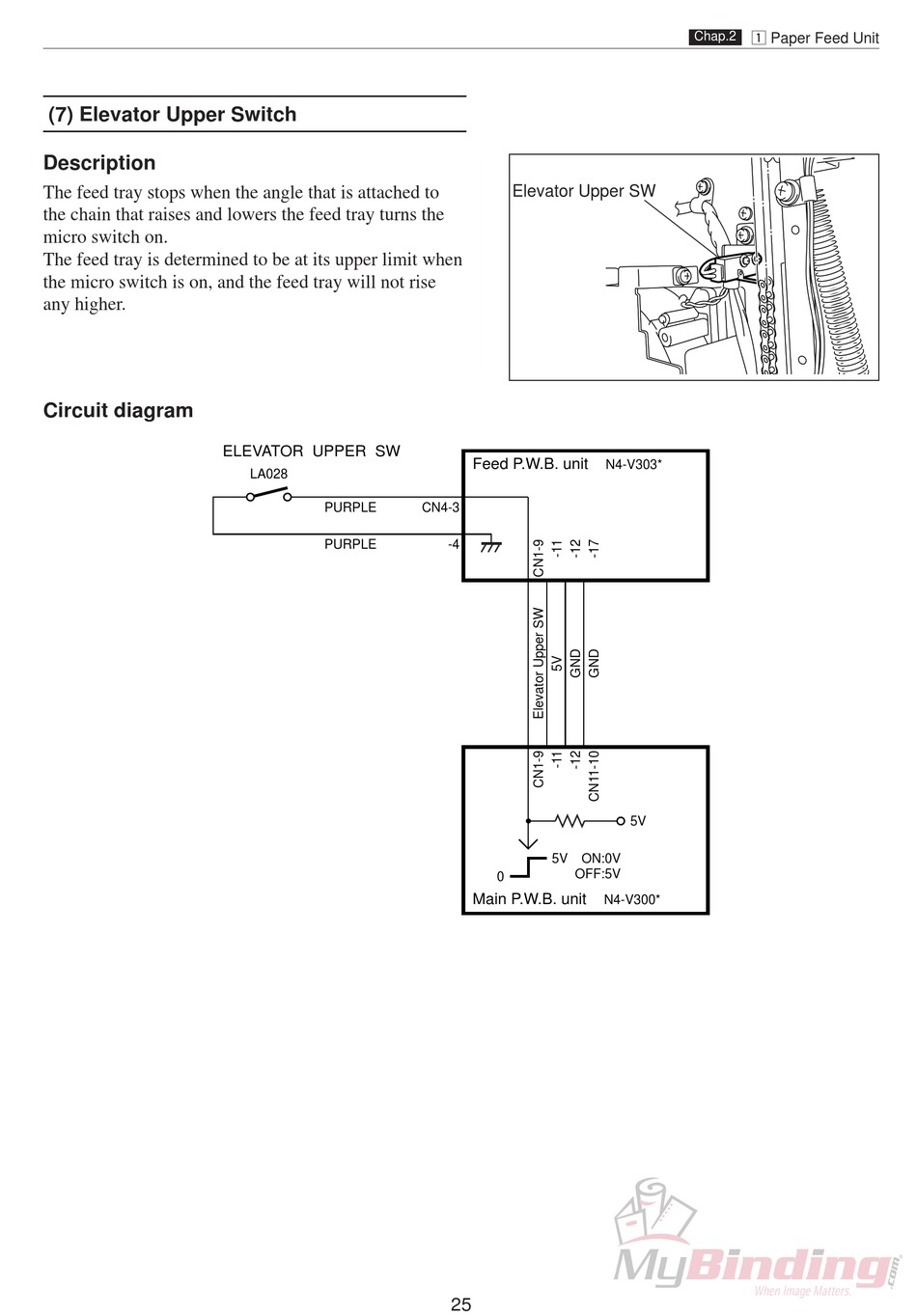

(7) Elevator Upper Switch

Description
The feed tray stops when the angle that is attached to
the chain that raises and lowers the feed tray turns the
micro switch on.
The feed tray is determined to be at its upper limit when
the micro switch is on, and the feed tray will not rise
any higher.
Circuit diagram
ELEVATOR UPPER SW
LA028
PURPLE
PURPLE
Elevator Upper SW
Feed P.W.B. unit
CN4-3
-4
5V ON:0V
OFF:5V
0
Main P.W.B. unit
25
z Paper Feed Unit
Chap.2
N4-V303*
5V
N4-V300*
