⁄1 REGISTER MARK
Chap.2

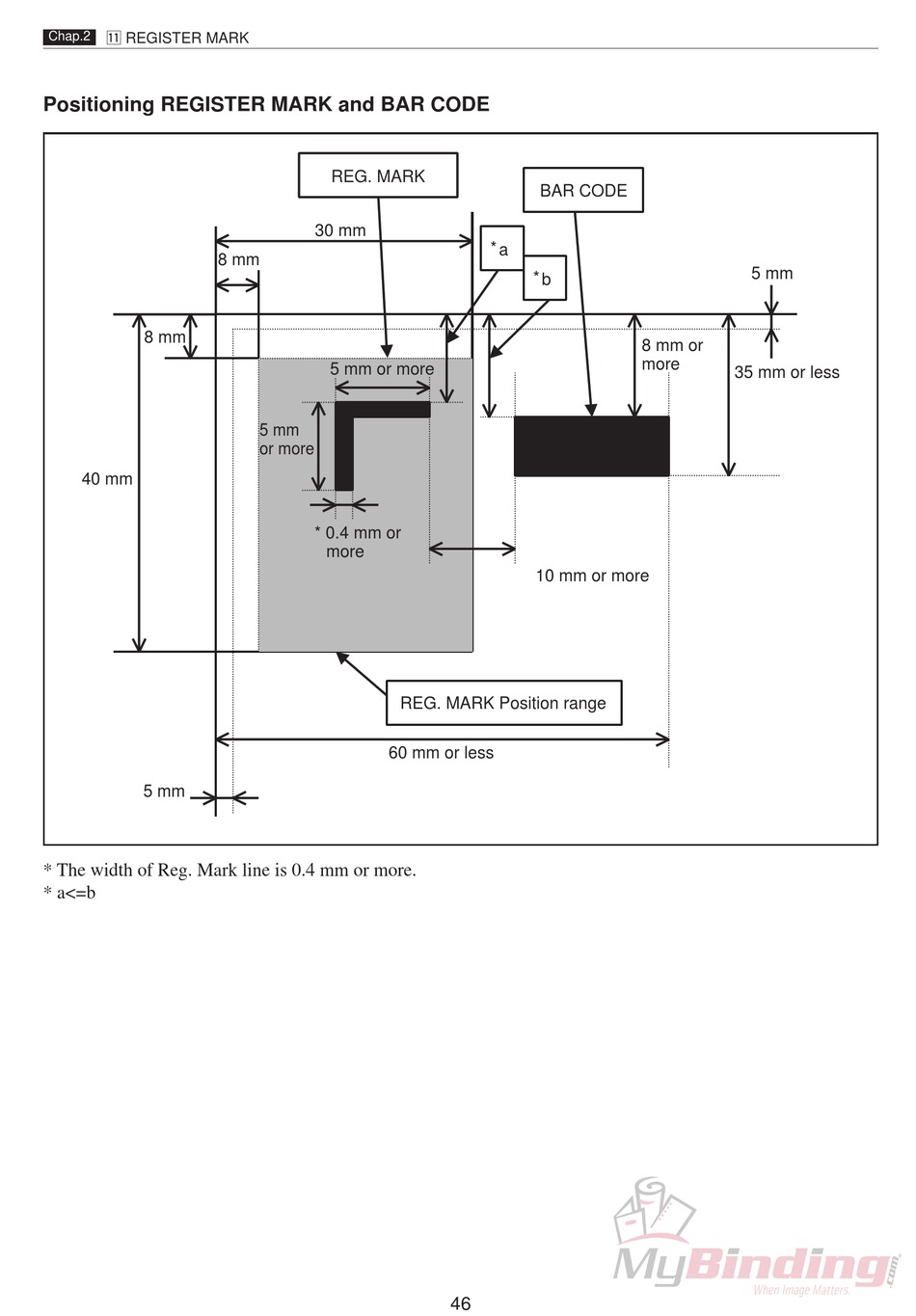

Positioning REGISTER MARK and BAR CODE
8 mm
8 mm
40 mm
5 mm
* The width of Reg. Mark line is 0.4 mm or more.
* a<=b
REG. MARK
30 mm
5 mm or more
5 mm
or more
* 0.4 mm or
more
REG. MARK Position range
60 mm or less
BAR CODE
* a
* b
10 mm or more
46
5 mm
8 mm or
more
35 mm or less
