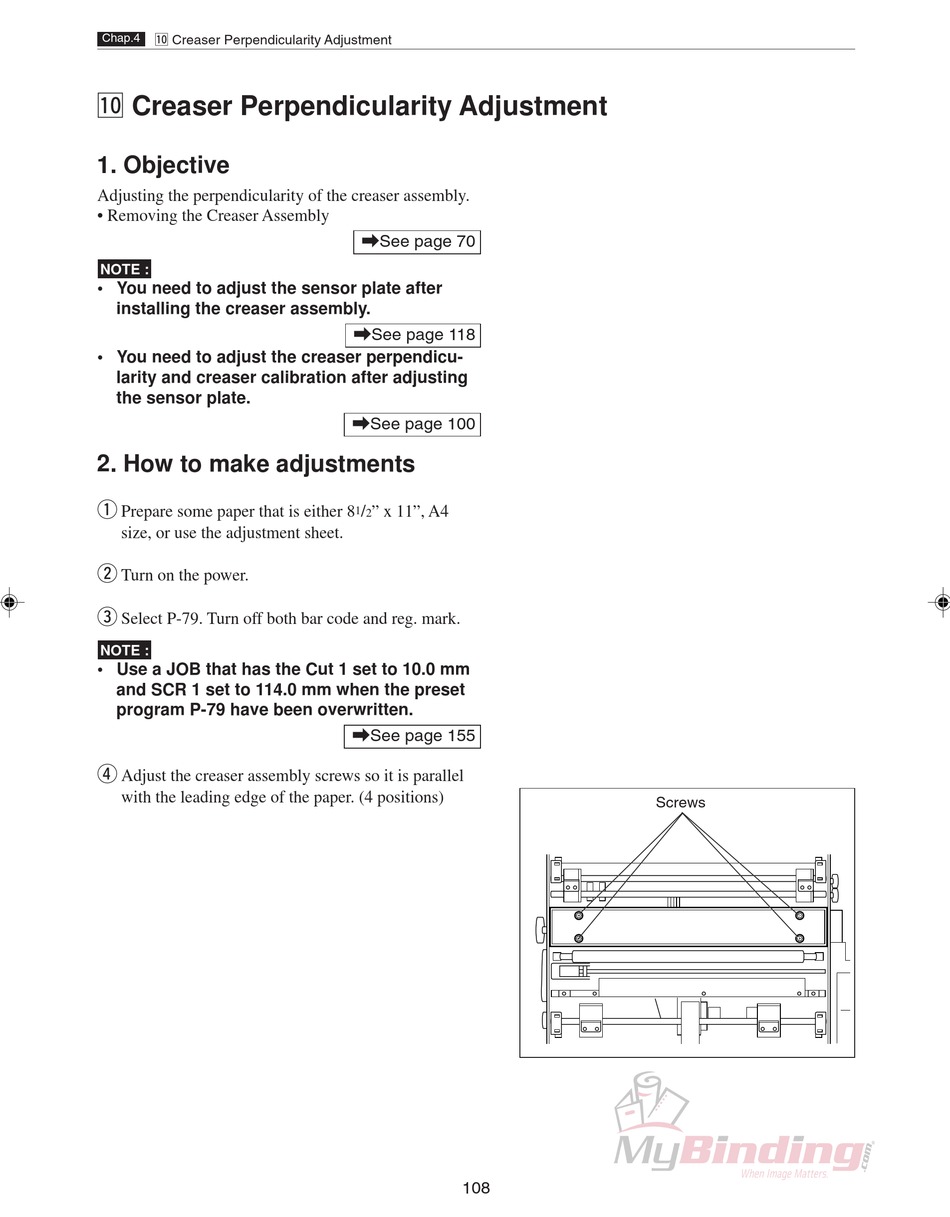

⁄0 Creaser Perpendicularity Adjustment
Chap.4
⁄0 Creaser Perpendicularity Adjustment
1. Objective
Adjusting the perpendicularity of the creaser assembly.
• Removing the Creaser Assembly
NOTE :
• You need to adjust the sensor plate after
installing the creaser assembly.
• You need to adjust the creaser perpendicu-
larity and creaser calibration after adjusting
the sensor plate.
2. How to make adjustments
q
Prepare some paper that is either 8
size, or use the adjustment sheet.
w
Turn on the power.
e
Select P-79. Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the Cut 1 set to 10.0 mm
and SCR 1 set to 114.0 mm when the preset
program P-79 have been overwritten.
r
Adjust the creaser assembly screws so it is parallel
with the leading edge of the paper. (4 positions)
\See page 70
\See page 118
\See page 100
/
" x 11", A4
1
2
\See page 155
108
Screws
