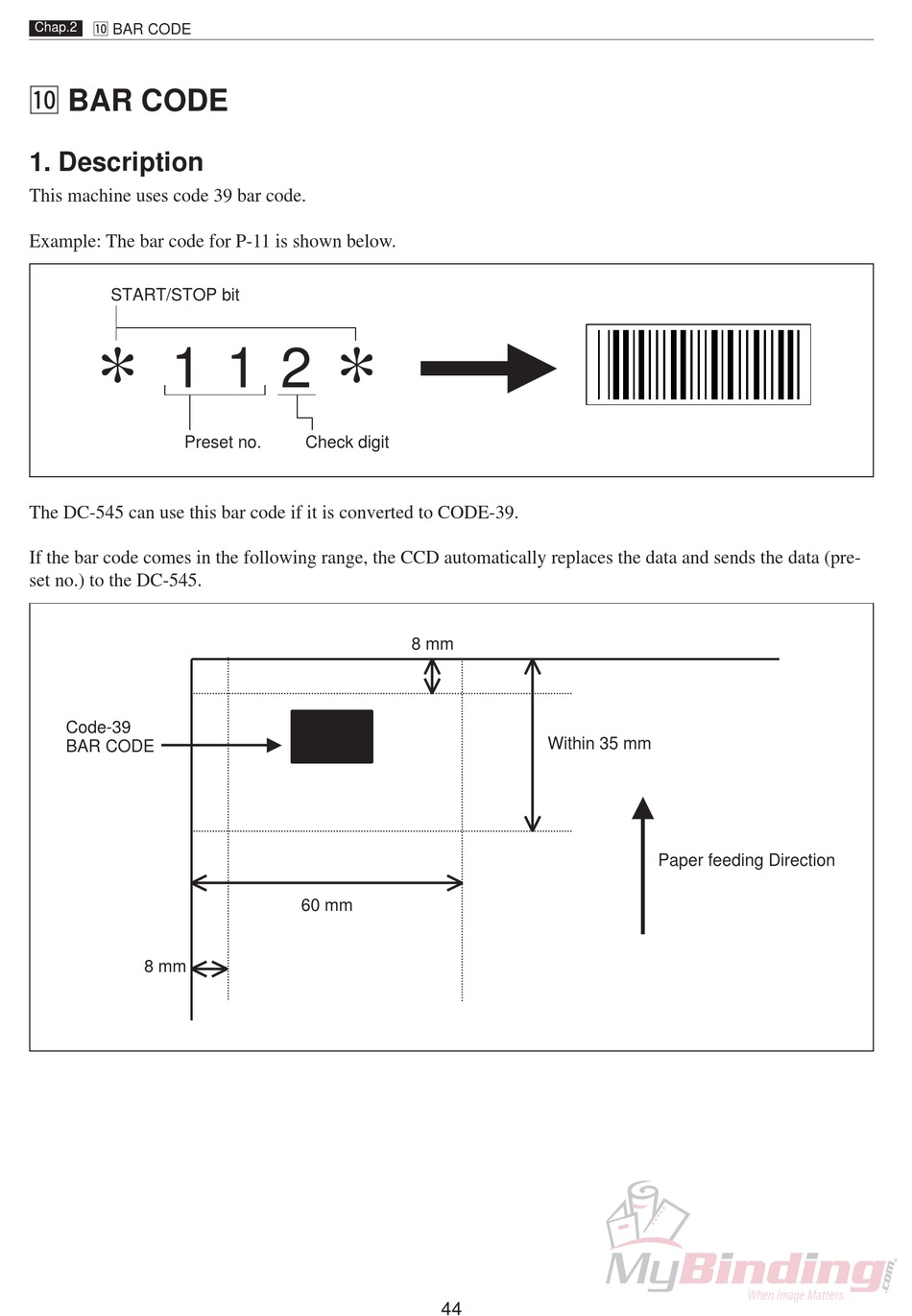

⁄0 BAR CODE
Chap.2
⁄0 BAR CODE

1. Description

This machine uses code 39 bar code.
Example: The bar code for P-11 is shown below.
START/STOP bit
*
1 1 2
Preset no.
The DC-545 can use this bar code if it is converted to CODE-39.
If the bar code comes in the following range, the CCD automatically replaces the data and sends the data (pre-
set no.) to the DC-545.
Code-39

BAR CODE

8 mm
*
Check digit
8 mm
60 mm
44
Within 35 mm
Paper feeding Direction
