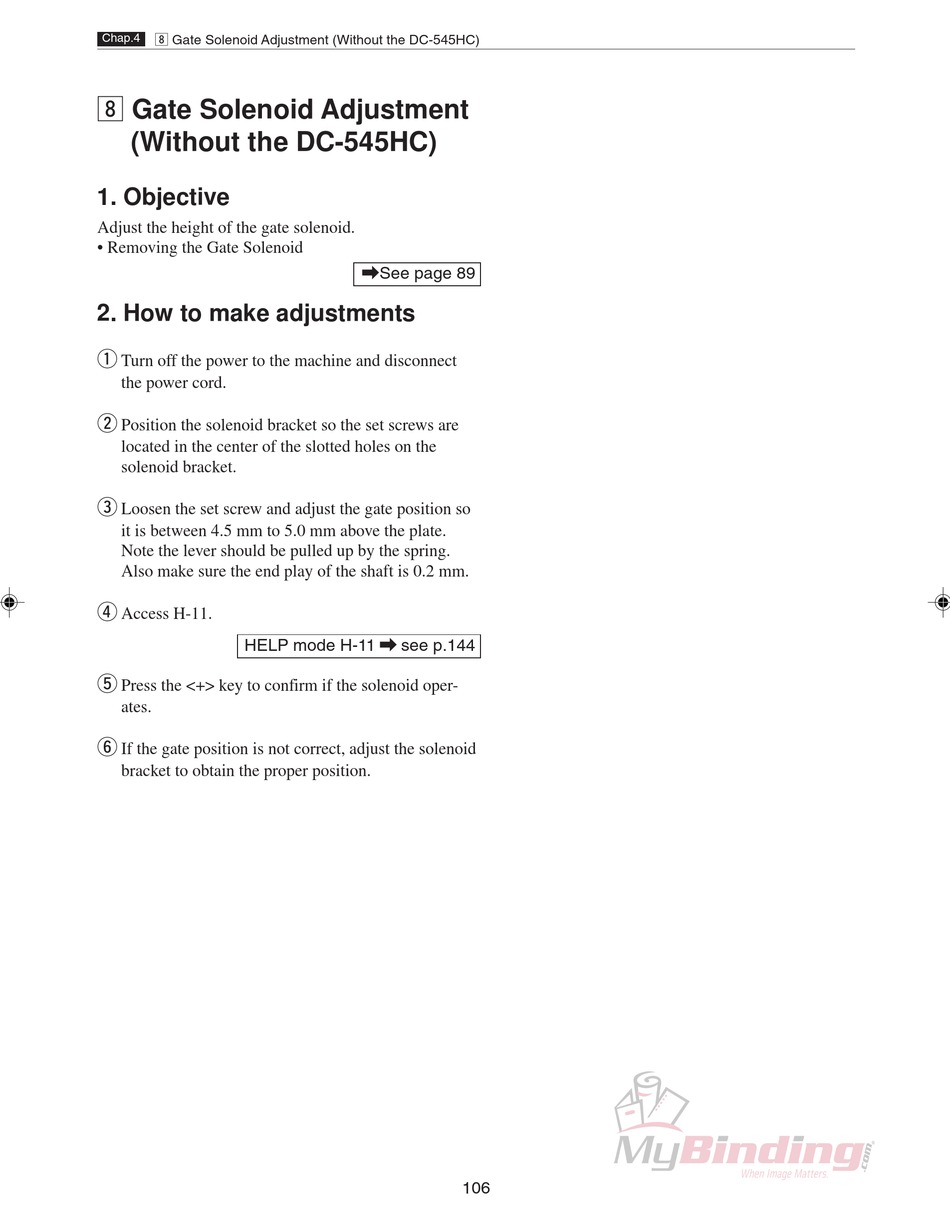

, Gate Solenoid Adjustment (Without the DC-545HC)

Chap.4
, Gate Solenoid Adjustment
(Without the DC-545HC)

1. Objective

Adjust the height of the gate solenoid.
• Removing the Gate Solenoid

2. How to make adjustments

q
Turn off the power to the machine and disconnect
the power cord.
w
Position the solenoid bracket so the set screws are
located in the center of the slotted holes on the
solenoid bracket.
e
Loosen the set screw and adjust the gate position so
it is between 4.5 mm to 5.0 mm above the plate.
Note the lever should be pulled up by the spring.
Also make sure the end play of the shaft is 0.2 mm.
r
Access H-11.
HELP mode H-11 \ see p.144
t
Press the <+> key to confirm if the solenoid oper-
ates.
y
If the gate position is not correct, adjust the solenoid
bracket to obtain the proper position.
\See page 89
106
