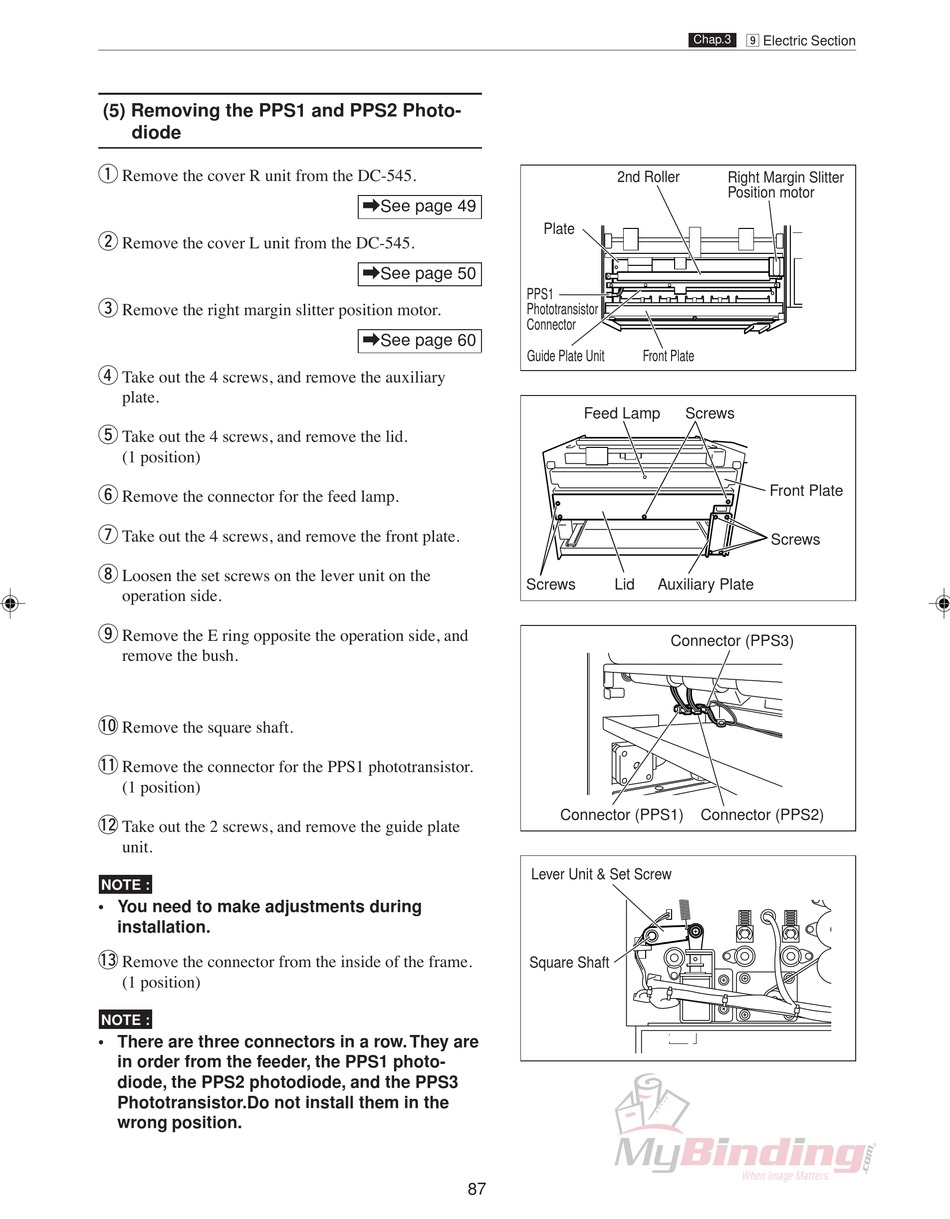

(5) Removing the PPS1 and PPS2 Photo-
diode
q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Remove the right margin slitter position motor.
r
Take out the 4 screws, and remove the auxiliary
plate.
t
Take out the 4 screws, and remove the lid.
(1 position)
y
Remove the connector for the feed lamp.
u
Take out the 4 screws, and remove the front plate.
i
Loosen the set screws on the lever unit on the
operation side.
o
Remove the E ring opposite the operation side, and
remove the bush.
!0
Remove the square shaft.
!1
Remove the connector for the PPS1 phototransistor.
(1 position)
!2
Take out the 2 screws, and remove the guide plate
unit.
NOTE :
• You need to make adjustments during
installation.
!3
Remove the connector from the inside of the frame.
(1 position)
NOTE :
• There are three connectors in a row. They are
in order from the feeder, the PPS1 photo-
diode, the PPS2 photodiode, and the PPS3
Phototransistor.Do not install them in the
wrong position.
\See page 49
\See page 50
\See page 60
87
2nd Roller
Plate
PPS1
Phototransistor
Connector
Guide Plate Unit Front Plate
Feed Lamp
Screws Lid Auxiliary Plate
Connector (PPS3)
Connector (PPS1)
Lever Unit & Set Screw
Square Shaft
. Electric Section
Chap.3
Right Margin Slitter
Position motor
Screws
Front Plate
Screws
Connector (PPS2)
