n Center Slitter
Chap.2
Possible range for each slitter
Name
Left center slitter
Right center slitter
OP1 slitter
OP2 slitter
(This is an optional slitter)

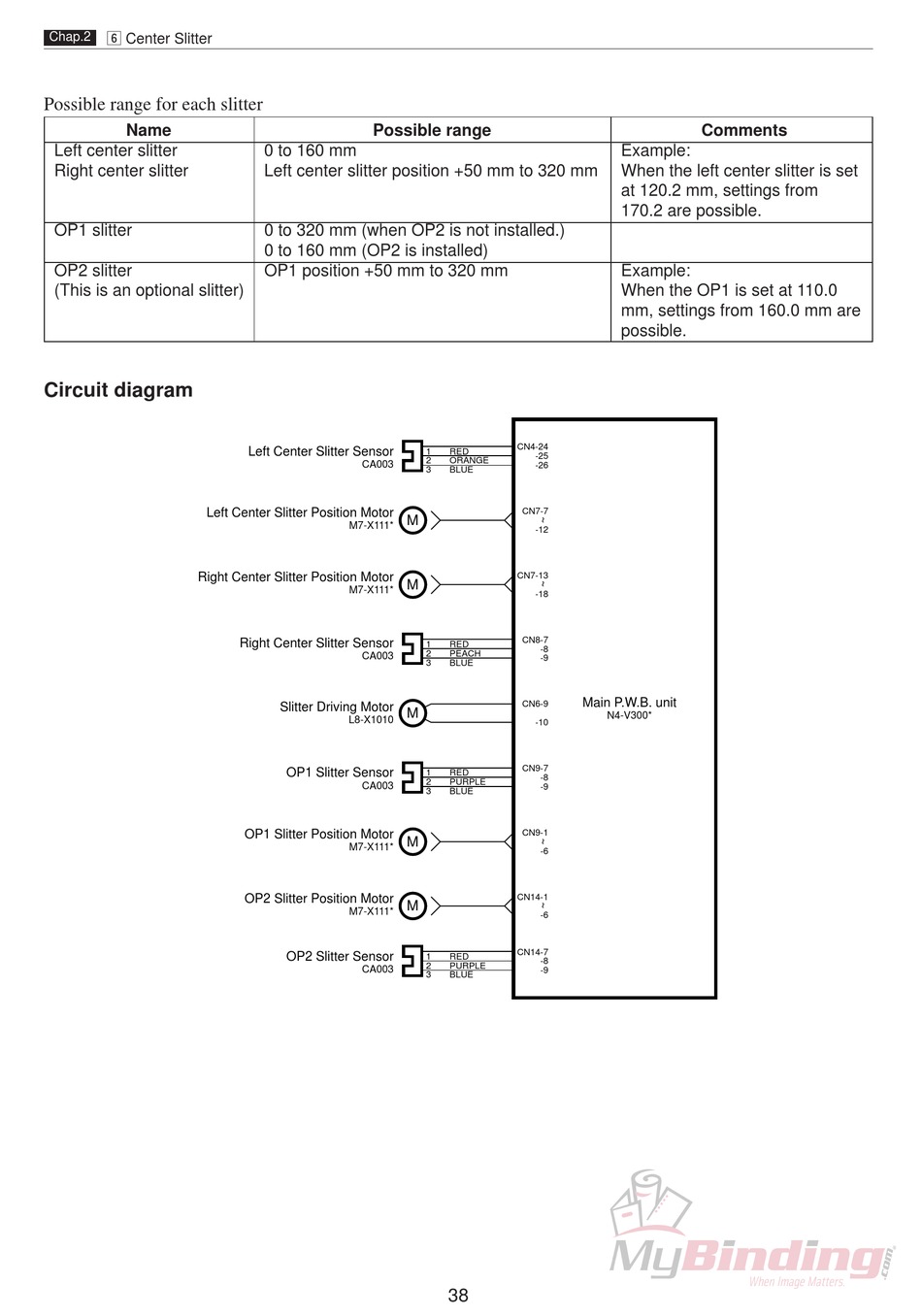

Circuit diagram
Left Center Slitter Position Motor
Right Center Slitter Position Motor
Possible range
0 to 160 mm
Left center slitter position +50 mm to 320 mm
0 to 320 mm (when OP2 is not installed.)
0 to 160 mm (OP2 is installed)
OP1 position +50 mm to 320 mm
Left Center Slitter Sensor
CA003
M
M7-X111*
M
M7-X111*
Right Center Slitter Sensor
CA003
Slitter Driving Motor
M
L8-X1010
OP1 Slitter Sensor
CA003
OP1 Slitter Position Motor
M
M7-X111*
OP2 Slitter Position Motor
M
M7-X111*
OP2 Slitter Sensor
CA003
CN4-24
1 RED
-25
2 ORANGE
-26
3 BLUE
CN7-7
-12
CN7-13
-18
CN8-7
1 RED
-8
2 PEACH
-9
3 BLUE
Main P.W.B. unit
CN6-9
-10
CN9-7
1 RED
-8
2 PURPLE
-9
3 BLUE
CN9-1
-6
CN14-1
-6
CN14-7
1 RED
-8
2 PURPLE
-9
3 BLUE
38
Comments
Example:
When the left center slitter is set
at 120.2 mm, settings from
170.2 are possible.
Example:
When the OP1 is set at 110.0
mm, settings from 160.0 mm are
possible.
N4-V300*
