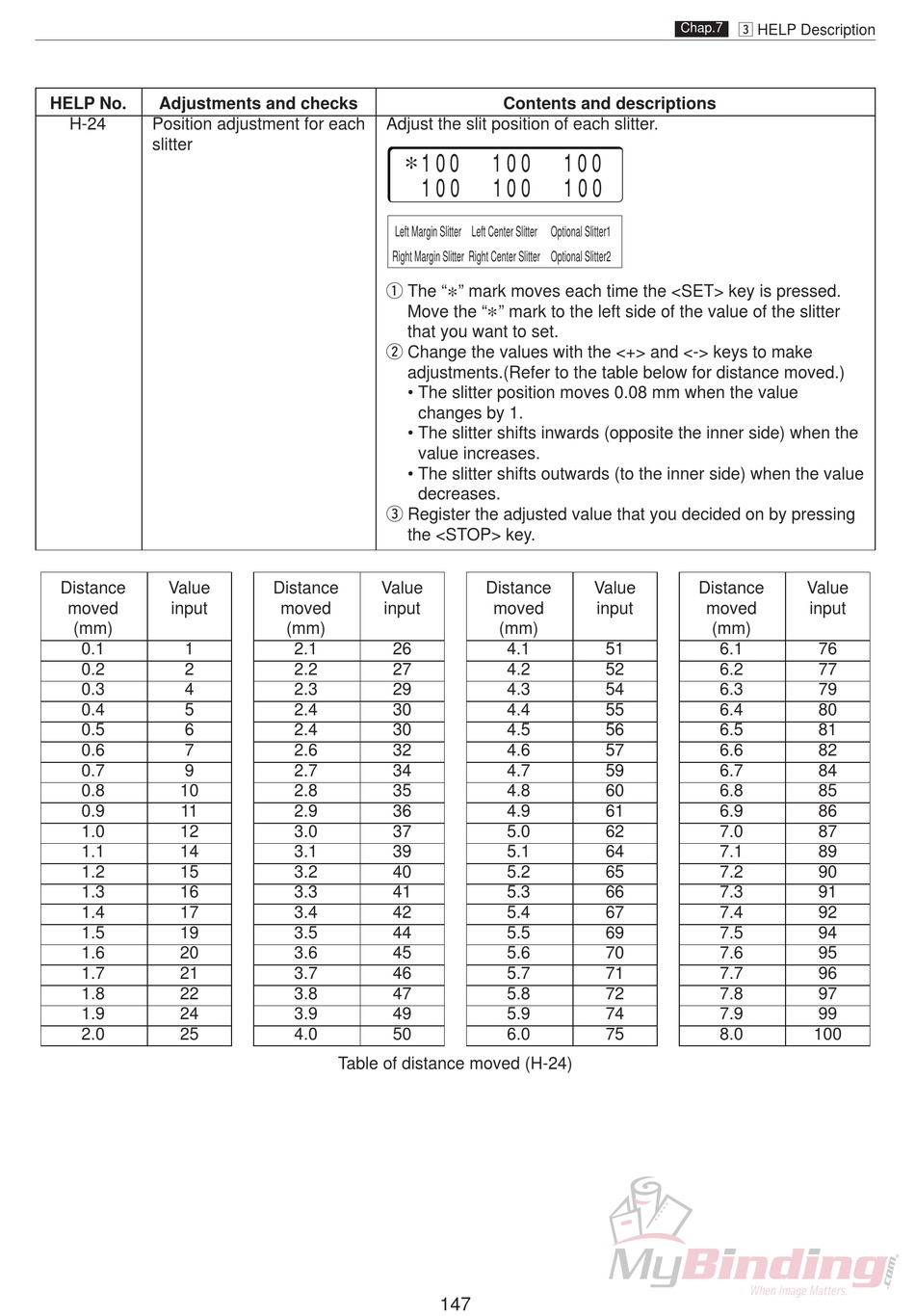

MyBinding DC-545HC Service Manual page 150

HELP No. Adjustments and checks
H-24 Position adjustment for each
slitter
Distance Value
moved input
(mm)
0.1 1
0.2 2
0.3 4
0.4 5
0.5 6
0.6 7
0.7 9
0.8 10
0.9 11
1.0 12
1.1 14
1.2 15
1.3 16
1.4 17
1.5 19
1.6 20
1.7 21
1.8 22
1.9 24
2.0 25
Adjust the slit position of each slitter.
∗
100
100
Left Margin Slitter
Right Margin Slitter
q The "
Move the "
that you want to set.
w Change the values with the <+> and <-> keys to make
adjustments.(Refer to the table below for distance moved.)
• The slitter position moves 0.08 mm when the value
changes by 1.
• The slitter shifts inwards (opposite the inner side) when the
value increases.
• The slitter shifts outwards (to the inner side) when the value
decreases.
e Register the adjusted value that you decided on by pressing
the <STOP> key.
Distance Value
moved input
(mm)
2.1 26
2.2 27
2.3 29
2.4 30
2.4 30
2.6 32
2.7 34
2.8 35
2.9 36
3.0 37
3.1 39
3.2 40
3.3 41
3.4 42
3.5 44
3.6 45
3.7 46
3.8 47
3.9 49
4.0 50
Table of distance moved (H-24)
147
Contents and descriptions
100 100
100 100
Left Center Slitter Optional Slitter1
Right Center Slitter Optional Slitter2
" mark moves each time the <SET> key is pressed.
*
" mark to the left side of the value of the slitter
*
Distance Value
moved input
(mm)
4.1 51
4.2 52
4.3 54
4.4 55
4.5 56
4.6 57
4.7 59
4.8 60
4.9 61
5.0 62
5.1 64
5.2 65
5.3 66
5.4 67
5.5 69
5.6 70
5.7 71
5.8 72
5.9 74
6.0 75
c HELP Description
Chap.7
Distance Value
moved input
(mm)
6.1 76
6.2 77
6.3 79
6.4 80
6.5 81
6.6 82
6.7 84
6.8 85
6.9 86
7.0 87
7.1 89
7.2 90
7.3 91
7.4 92
7.5 94
7.6 95
7.7 96
7.8 97
7.9 99
8.0 100
