v Margin Slitter Section
Chap.3

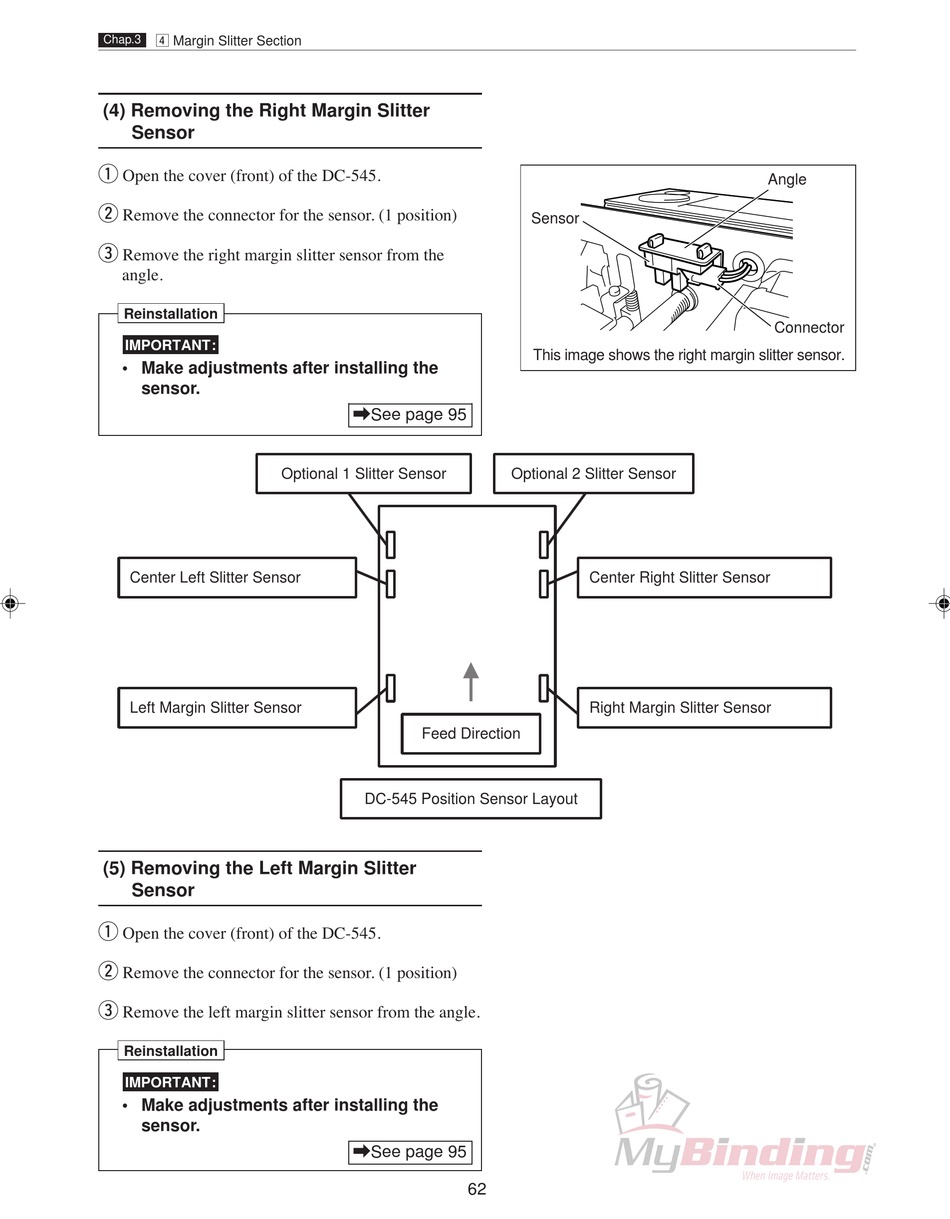

(4) Removing the Right Margin Slitter
Sensor
q
Open the cover (front) of the DC-545.
w
Remove the connector for the sensor. (1 position)
e
Remove the right margin slitter sensor from the
angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
sensor.
Center Left Slitter Sensor
Left Margin Slitter Sensor
(5) Removing the Left Margin Slitter
Sensor
q
Open the cover (front) of the DC-545.
w
Remove the connector for the sensor. (1 position)
e
Remove the left margin slitter sensor from the angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
sensor.
\See page 95
Optional 1 Slitter Sensor
Feed Direction
DC-545 Position Sensor Layout
\See page 95
Sensor
This image shows the right margin slitter sensor.
Optional 2 Slitter Sensor
Center Right Slitter Sensor
Right Margin Slitter Sensor
62
Angle
Connector
