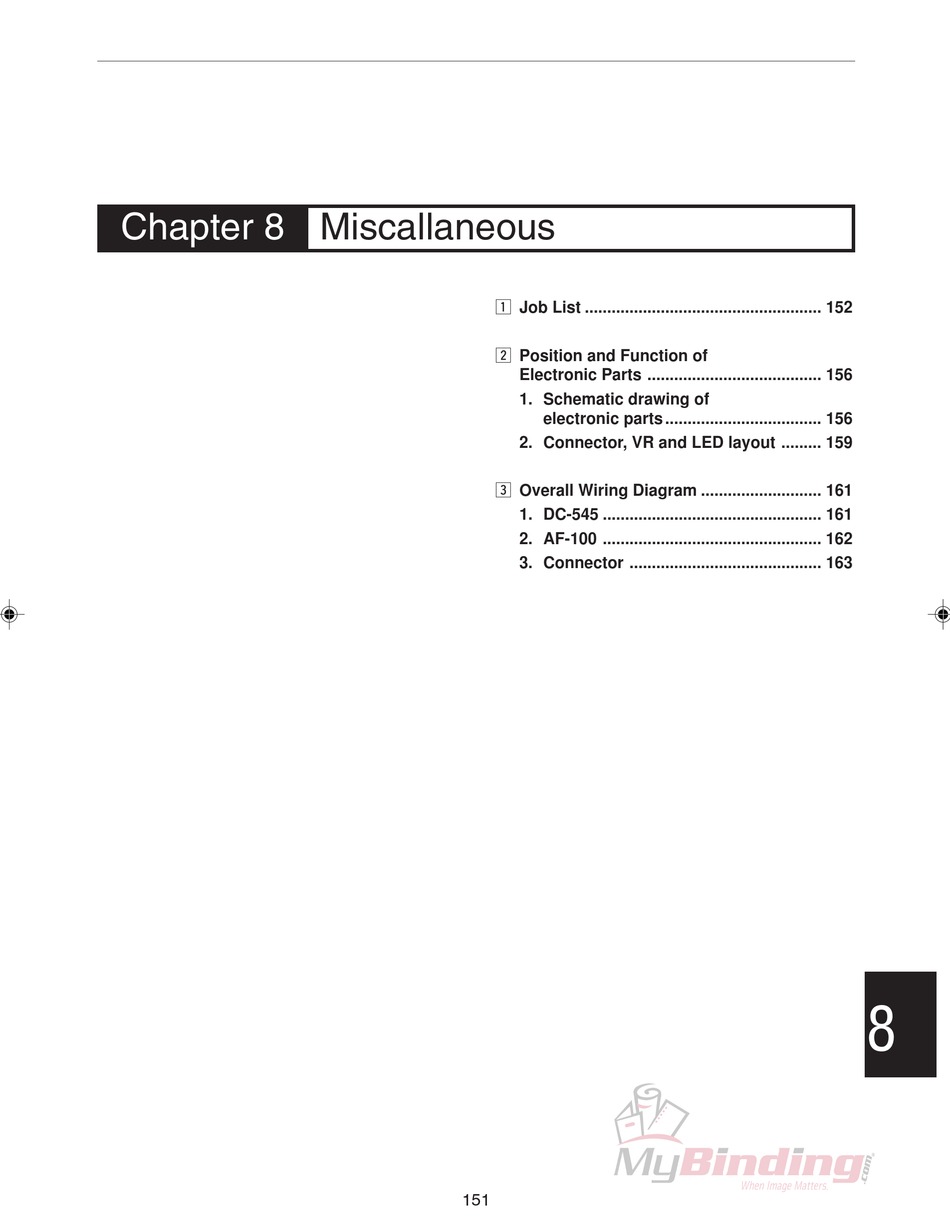

Chapter 8
Miscallaneous
151
z Job List ..................................................... 152
x Position and Function of
Electronic Parts ....................................... 156
1. Schematic drawing of
electronic parts ................................... 156
2. Connector, VR and LED layout ......... 159
c Overall Wiring Diagram ........................... 161
1. DC-545 ................................................. 161
2. AF-100 ................................................. 162
3. Connector ........................................... 163
8
