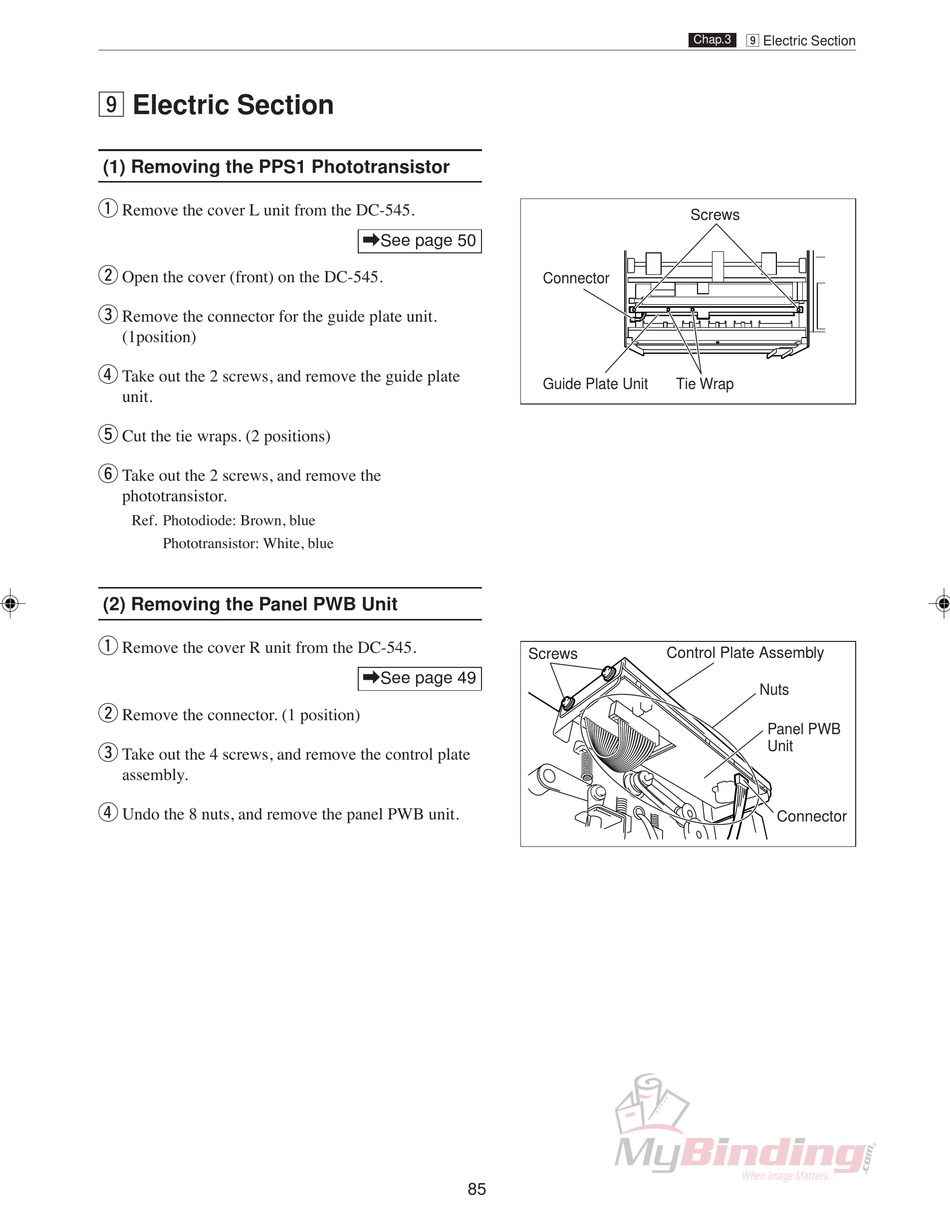

. Electric Section

(1) Removing the PPS1 Phototransistor

q
Remove the cover L unit from the DC-545.
w
Open the cover (front) on the DC-545.
e
Remove the connector for the guide plate unit.
(1position)
r
Take out the 2 screws, and remove the guide plate
unit.
t
Cut the tie wraps. (2 positions)
y
Take out the 2 screws, and remove the
phototransistor.
Ref. Photodiode: Brown, blue
Phototransistor: White, blue

(2) Removing the Panel PWB Unit

q
Remove the cover R unit from the DC-545.
w
Remove the connector. (1 position)
e
Take out the 4 screws, and remove the control plate
assembly.
r
Undo the 8 nuts, and remove the panel PWB unit.
\See page 50
\See page 49
85
Connector
Guide Plate Unit Tie Wrap
Control Plate Assembly
Screws

. Electric Section

Chap.3
Screws
Nuts
Panel PWB
Unit
Connector
