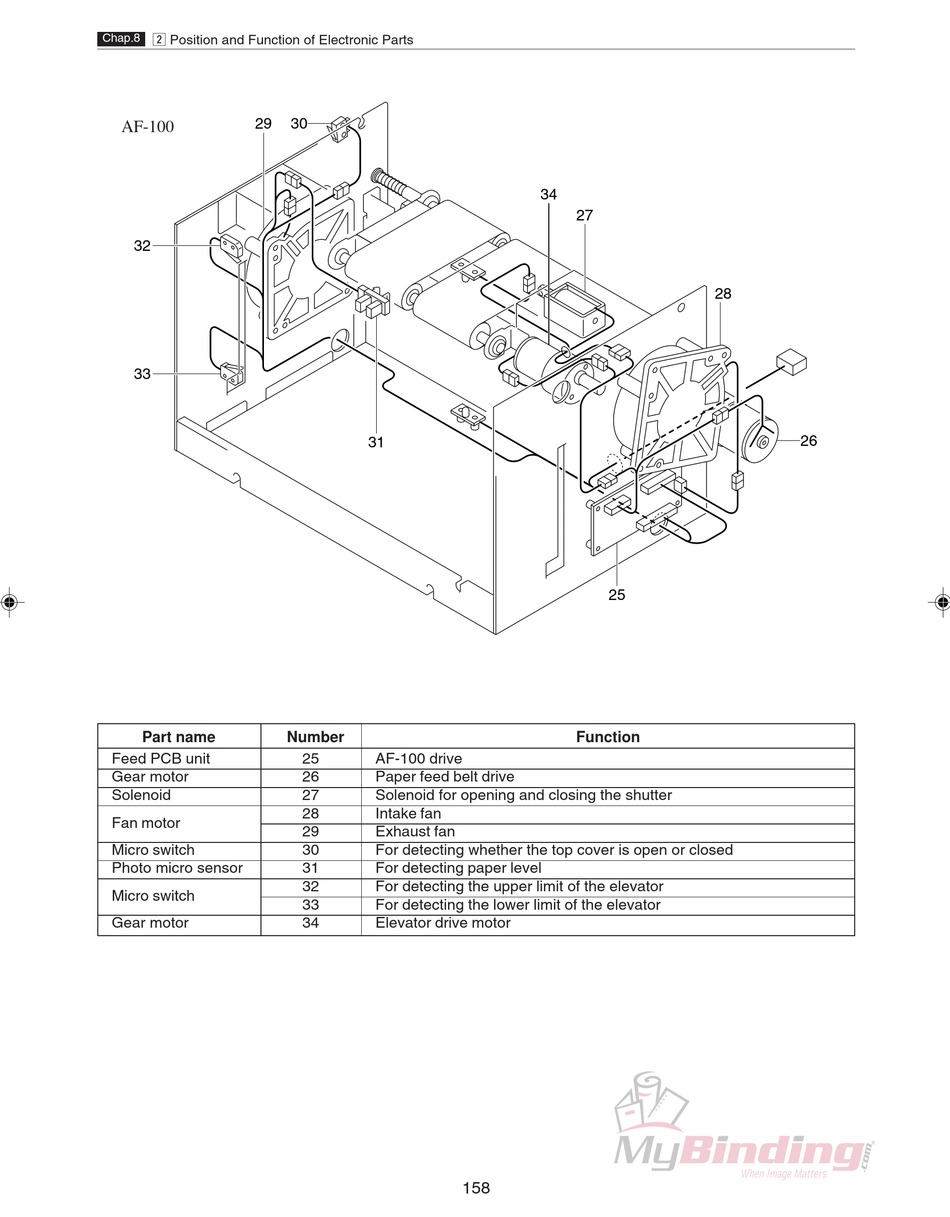

MyBinding DC-545HC Service Manual page 161

x Position and Function of Electronic Parts
Chap.8
29
AF-100
32
33
Part name
Feed PCB unit
Gear motor
Solenoid
Fan motor
Micro switch
Photo micro sensor
Micro switch
Gear motor
30
31
Number
25 AF-100 drive
26 Paper feed belt drive
27 Solenoid for opening and closing the shutter
28 Intake fan
29 Exhaust fan
30 For detecting whether the top cover is open or closed
31 For detecting paper level
32 For detecting the upper limit of the elevator
33 For detecting the lower limit of the elevator
34 Elevator drive motor
34
27
25
Function
158
28
26
