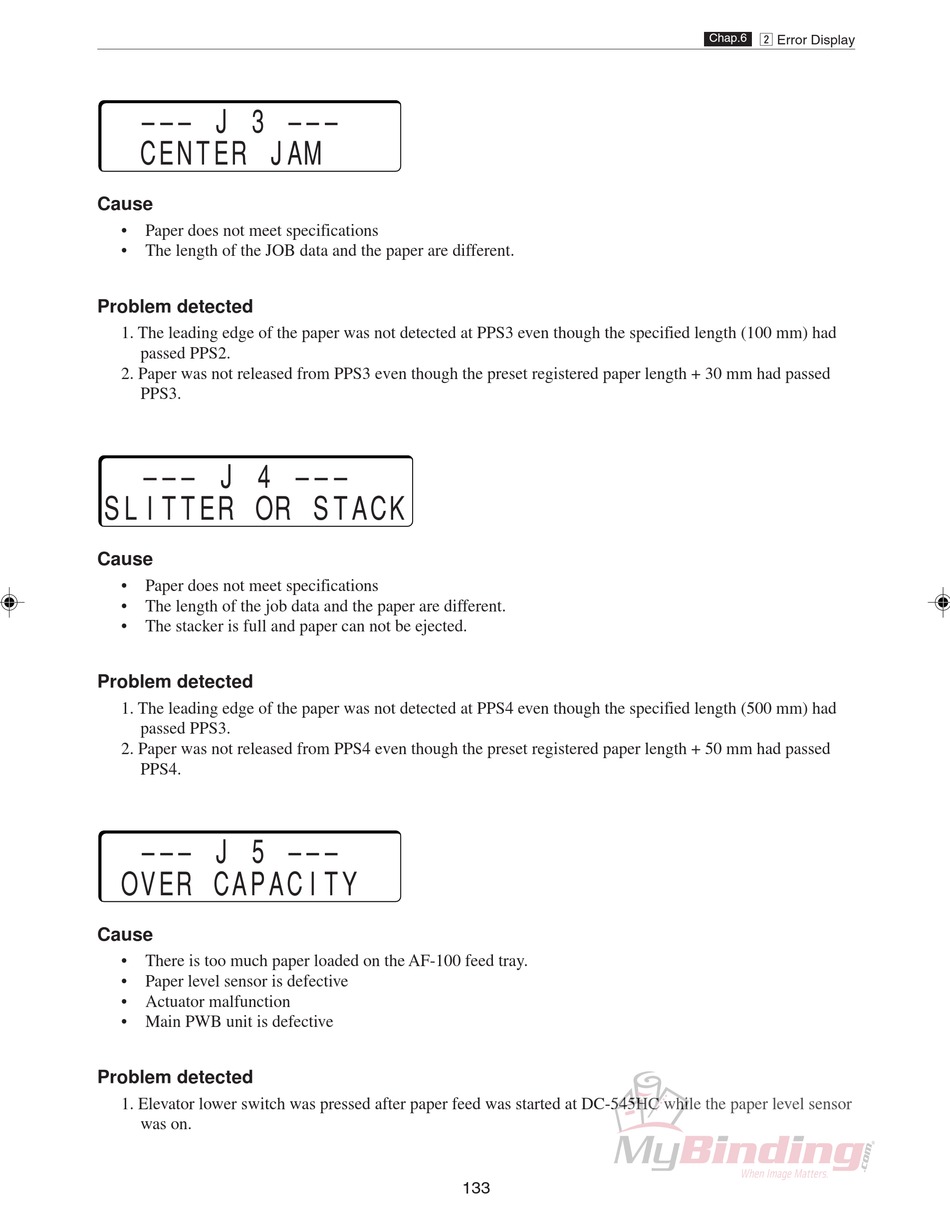

––– J 3 –––
CENTER JAM
Cause
• Paper does not meet specifications
• The length of the JOB data and the paper are different.
Problem detected
1. The leading edge of the paper was not detected at PPS3 even though the specified length (100 mm) had
passed PPS2.
2. Paper was not released from PPS3 even though the preset registered paper length + 30 mm had passed
PPS3.
––– J 4 –––
SLITTER OR STACK
Cause
• Paper does not meet specifications
• The length of the job data and the paper are different.
• The stacker is full and paper can not be ejected.
Problem detected
1. The leading edge of the paper was not detected at PPS4 even though the specified length (500 mm) had
passed PPS3.
2. Paper was not released from PPS4 even though the preset registered paper length + 50 mm had passed
PPS4.
––– J 5 –––
OVER CAPACITY
Cause
• There is too much paper loaded on the AF-100 feed tray.
• Paper level sensor is defective
• Actuator malfunction
• Main PWB unit is defective
Problem detected
1. Elevator lower switch was pressed after paper feed was started at DC-545HC while the paper level sensor
was on.
