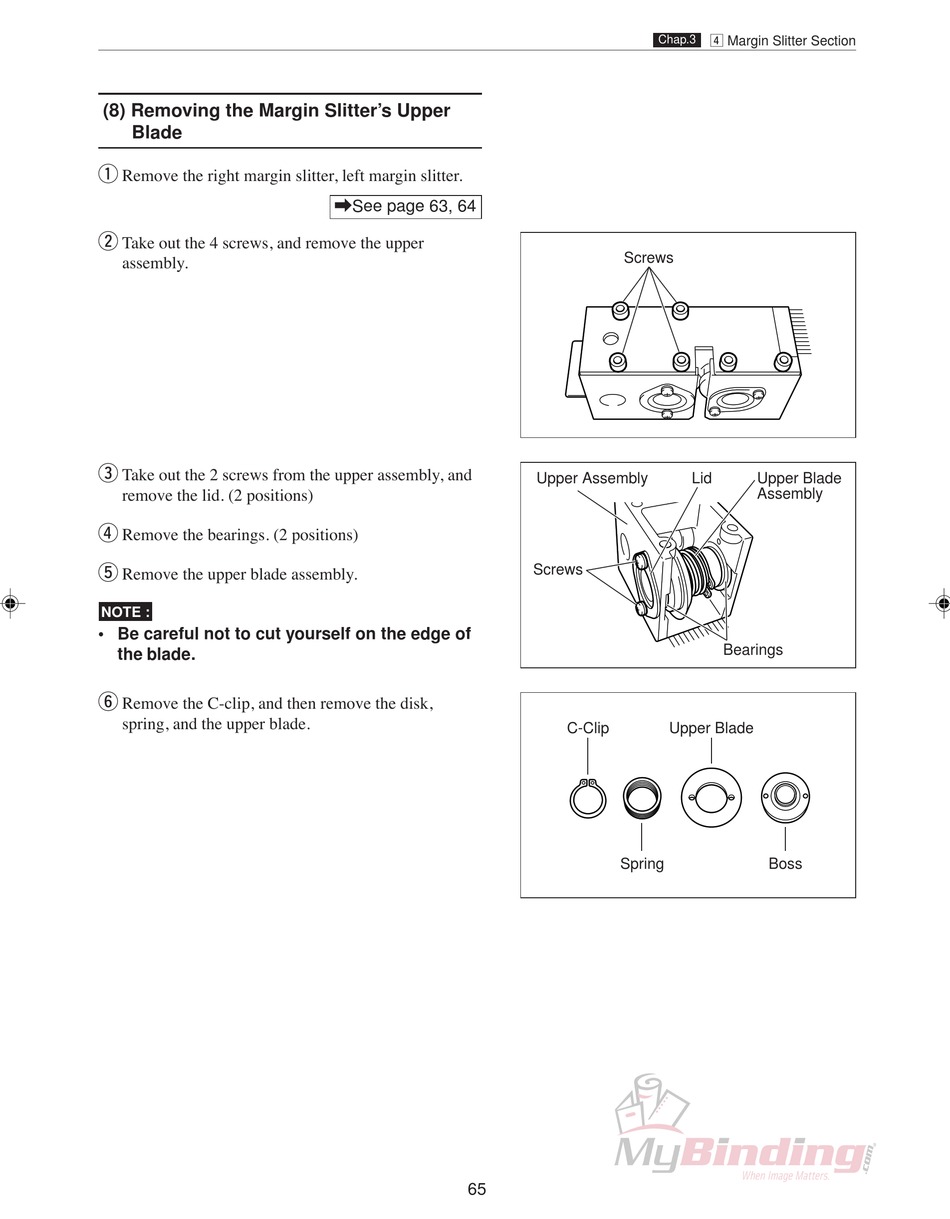

(8) Removing the Margin Slitter's Upper
Blade
q
Remove the right margin slitter, left margin slitter.
w
Take out the 4 screws, and remove the upper
assembly.
e
Take out the 2 screws from the upper assembly, and
remove the lid. (2 positions)
r
Remove the bearings. (2 positions)
t
Remove the upper blade assembly.
NOTE :
• Be careful not to cut yourself on the edge of
the blade.
y
Remove the C-clip, and then remove the disk,
spring, and the upper blade.
\See page 63, 64
65
Chap.3
Screws
Upper Assembly Lid
Screws
C-Clip Upper Blade
Spring
v Margin Slitter Section
Upper Blade
Assembly
Bearings
Boss
