18
18(Interior)
Part name
Panel P.W.B. unit
Power switch
Switching power supply
Stepping motor
Motor driver
Stepping motor
Gear motor
DC Gear motor
DC Gear motor
CCD sensor
Memory P.W.B. unit
Main P.W.B. unit
Solenoid
Solenoid
Power P.W.B. unit
Micro Switch
Photo Micro Switch
Number
1 Operation panel and display
2 Switch to turn on the power
3 DC power supply (AC 100 to 240 V
4 Main motor
5 Driver for the main motor
6 Slitter drive motor
7 Feed stepping motor
8 Margin slitter drive motor
9 Center slitter drive motor
10 Cutter drive motor
11 Score drive motor
12 For reading the bar codes and reg. marks
13 For saving job data
14 For controlling the DC-545
15 For controlling the gate (not used by DC-545HC)
16 Paper feed solenoid
17 Printed wiring board for the power supply (DC 24 V
18 For detecting cutter motor interlock and whether the cover is open or closed
19 Home position for the left margin slitter
20 Home position for the right margin slitter
21 Home position for the left center slitter
22 Home position for the right center slitter
23 Home position for the OP1 slitter
24 Home position for the OP2 slitter

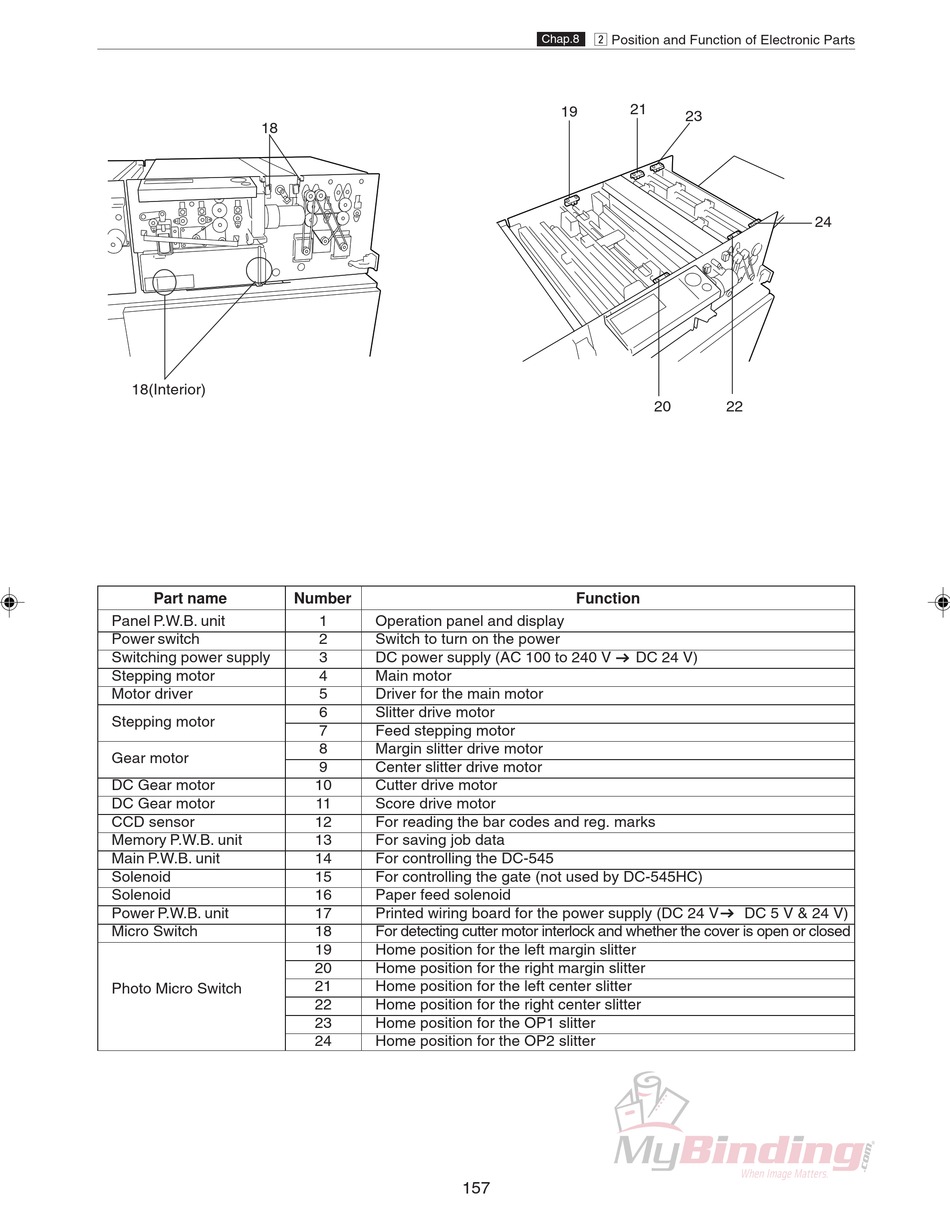

x Position and Function of Electronic Parts
Chap.8
19
Function
157
21
23
20 22
DC 24 V)
DC 5 V & 24 V)
24
