c HELP Description
Chap.7
HELP No. Adjustments and checks

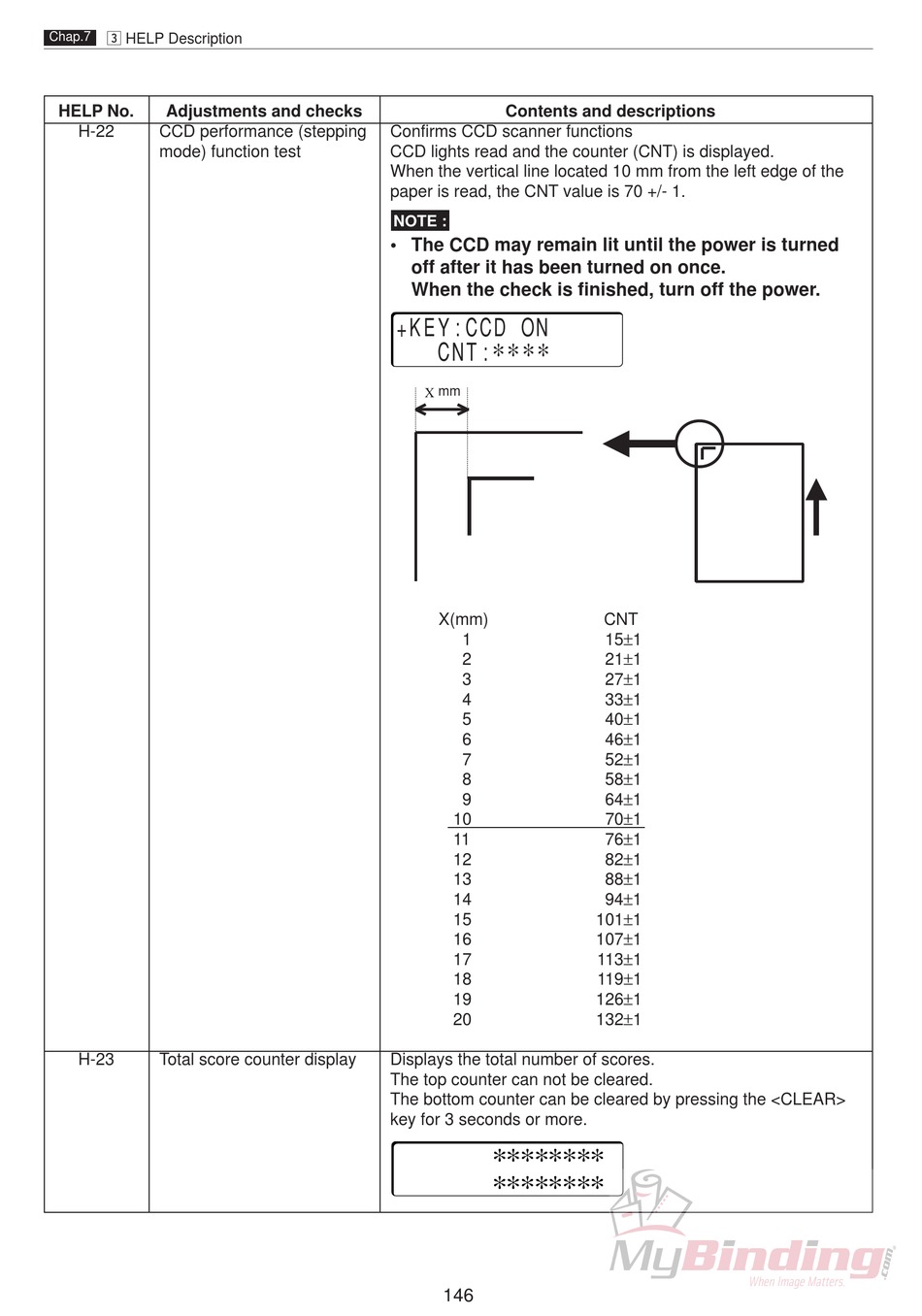

H-22 CCD performance (stepping
mode) function test
H-23 Total score counter display
Contents and descriptions
Confirms CCD scanner functions
CCD lights read and the counter (CNT) is displayed.
When the vertical line located 10 mm from the left edge of the
paper is read, the CNT value is 70 +/- 1.
NOTE :
• The CCD may remain lit until the power is turned
off after it has been turned on once.
When the check is finished, turn off the power.
+KEY:CCD ON
∗ ∗ ∗ ∗
CNT:
X mm
X(mm)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Displays the total number of scores.
The top counter can not be cleared.
The bottom counter can be cleared by pressing the <CLEAR>
key for 3 seconds or more.
∗∗∗∗∗∗∗∗
∗∗∗∗∗∗∗∗
