MyBinding DC-545HC Service Manual page 171

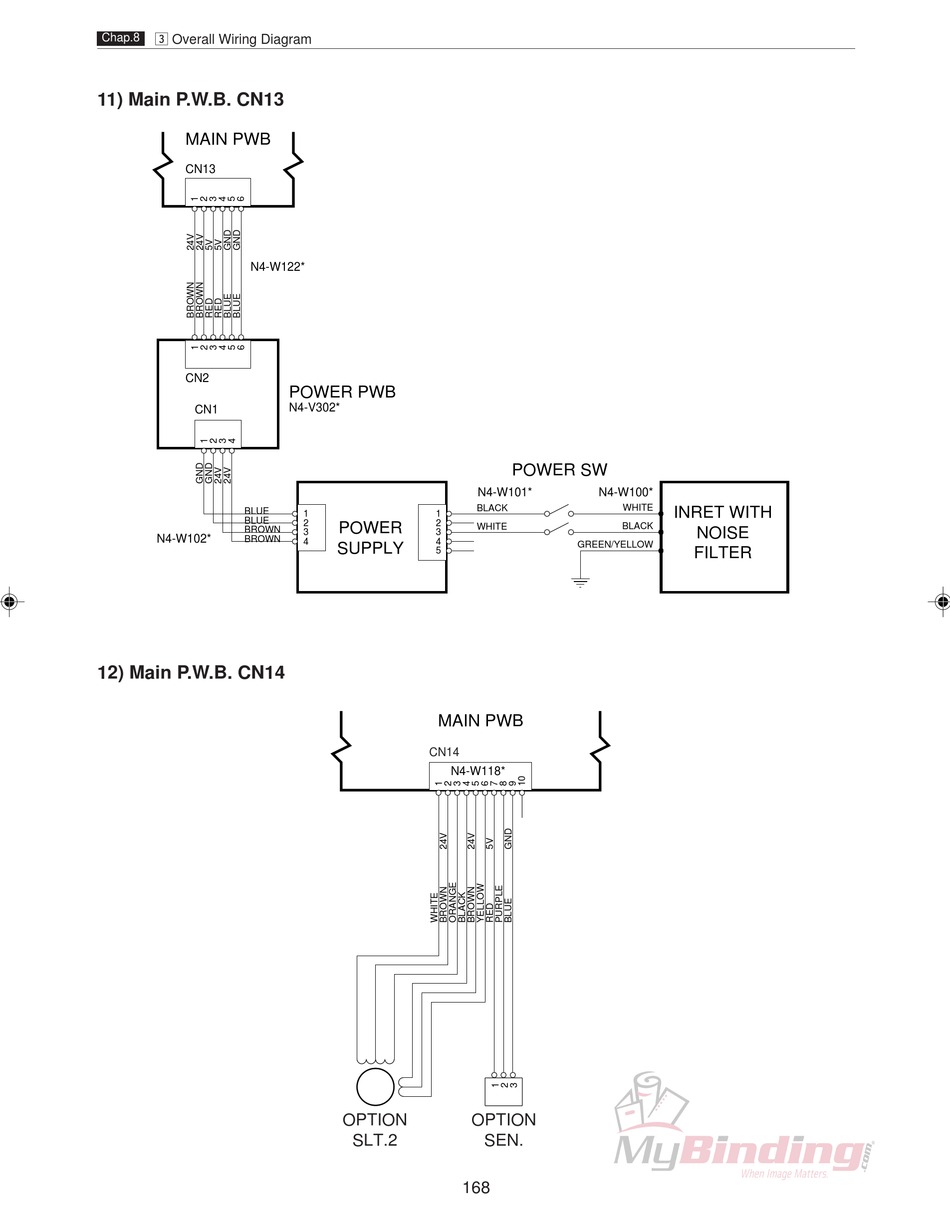

c Overall Wiring Diagram
Chap.8
11) Main P.W.B. CN13
MAIN PWB
CN13
N4-W122*
CN2
CN1
BLUE
BLUE
BROWN
N4-W102*
BROWN
12) Main P.W.B. CN14
POWER PWB
N4-V302*
1 1
2 2
POWER
3 3
4 4
SUPPLY
5
MAIN PWB
CN14
OPTION
SLT.2
POWER SW
N4-W101* N4-W100*
BLACK
WHITE
GREEN/YELLOW
N4-W118*
OPTION
SEN.
168
WHITE
INRET WITH
BLACK
NOISE
FILTER
