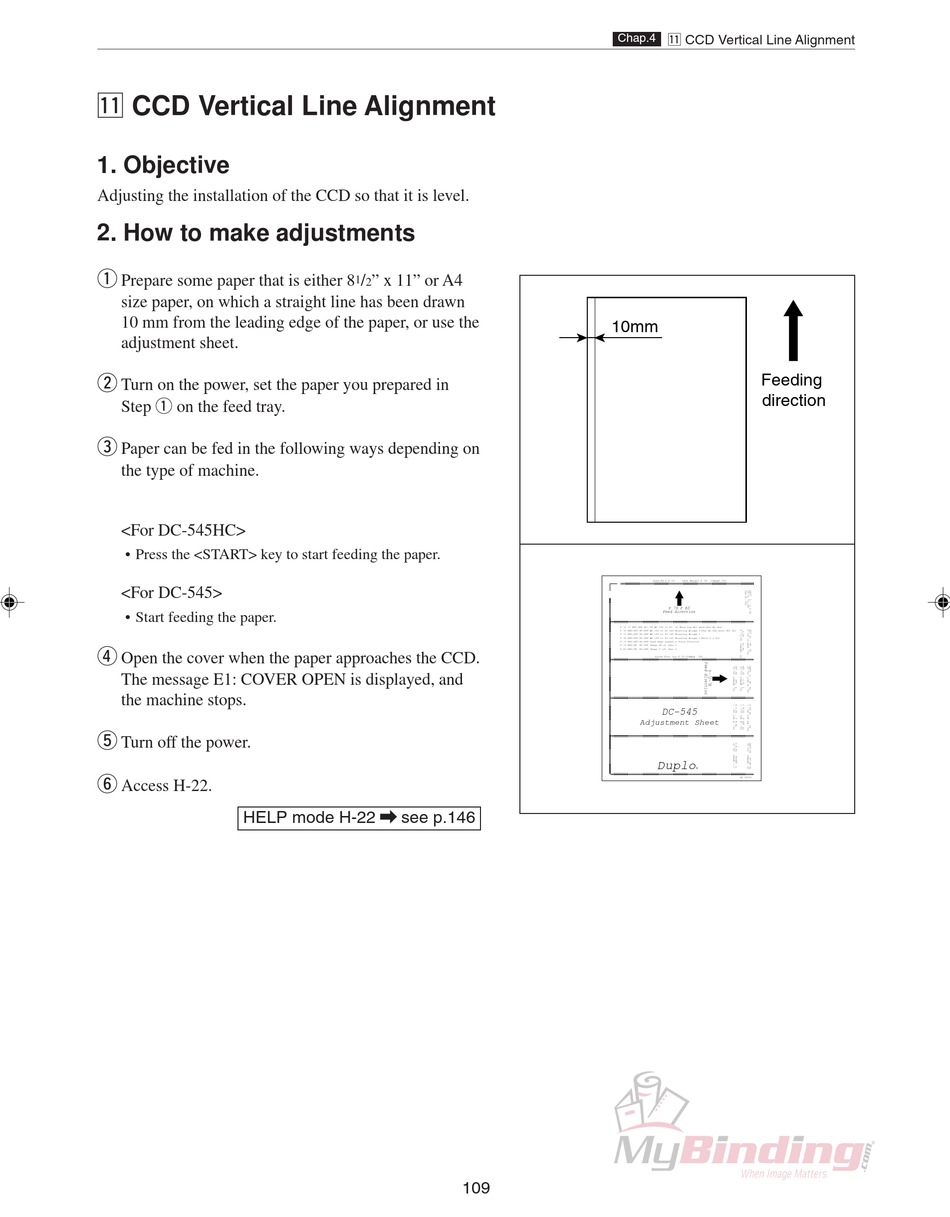

⁄1 CCD Vertical Line Alignment

1. Objective

Adjusting the installation of the CCD so that it is level.

2. How to make adjustments

q
Prepare some paper that is either 8
size paper, on which a straight line has been drawn
10 mm from the leading edge of the paper, or use the
adjustment sheet.
w
Turn on the power, set the paper you prepared in
Step q on the feed tray.
e
Paper can be fed in the following ways depending on
the type of machine.
<For DC-545HC>
• Press the <START> key to start feeding the paper.
<For DC-545>
• Start feeding the paper.
r
Open the cover when the paper approaches the CCD.
The message E1: COVER OPEN is displayed, and
the machine stops.
t
Turn off the power.
y
Access H-22.
HELP mode H-22 \ see p.146
/ " x 11" or A4
1
2
109
⁄1 CCD Vertical Line Alignment
Chap.4
10mm
Feeding
direction
Lead Ed e P 79 Left Margin P 78 10mm 0 762
P 79 P 80
Feed direction
P 72 75 REG OFF BC: FF AF 100 to DC 45 Moun ing Ali ment(One By One)
P 76 REG:OFF BC:OFF AF 100 to DC 545 Mounting Aligme t(One By One with OP2 SL)
P 77 REG:OFF BC:OFF AF 100 to DC 545 Mounting Aligme t
P 78 REG:OFF BC:OFF AF 100 to DC 545 Mounting Aligme t(With O 2 SL)
P 79 REG:OFF BC:OFF Lead Edge Lehgth & Score Position
P 79 REG:ON BC:OFF Image Sh ft Chec 1
P 80 REG:ON BC:OFF Image S ift Chec 2
Score Posi ion P 79 104mm 762
DC-545
Adjustment Sheet
Duplo
N4 Y2061
