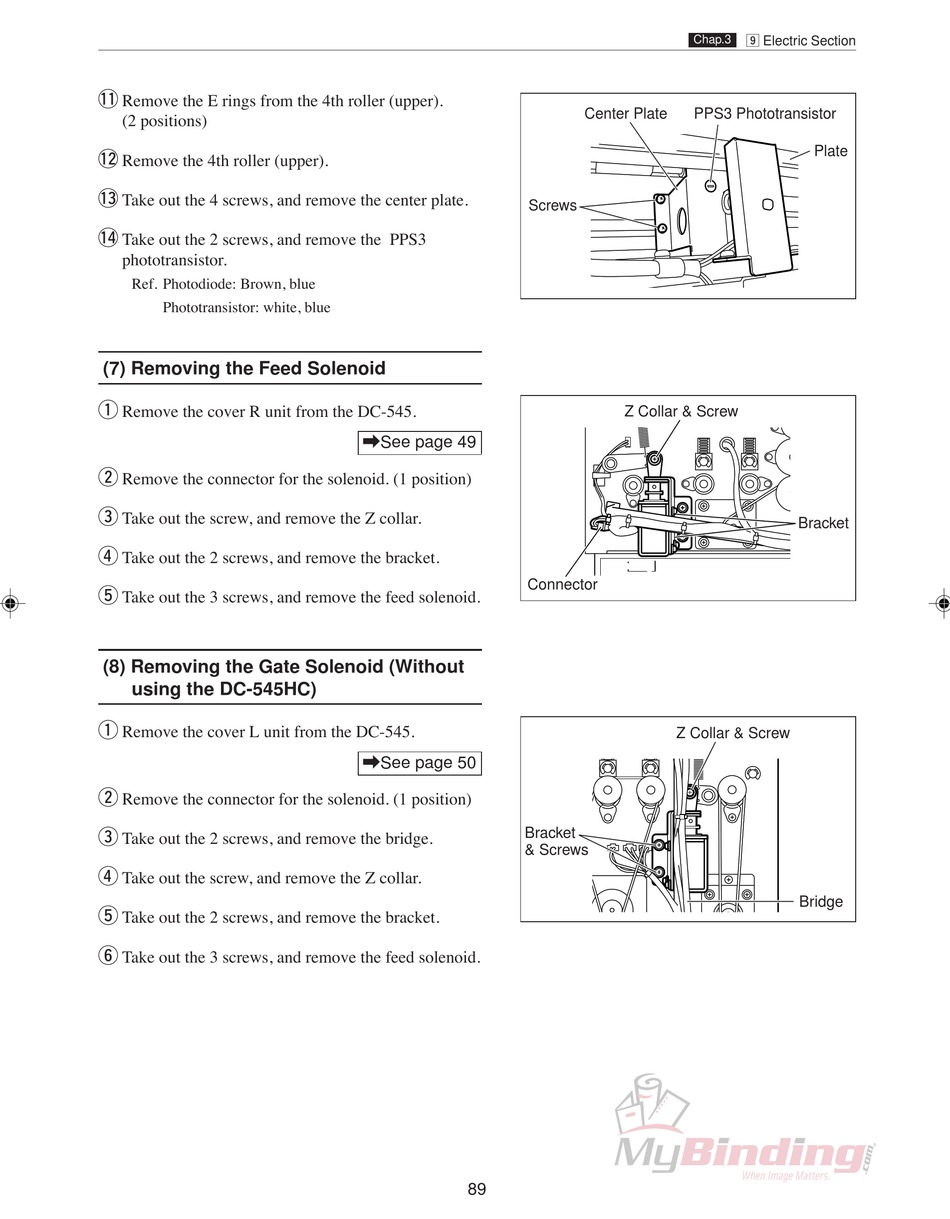

Removing The Feed Solenoid; Removing The Gate Solenoid (Without Using The Dc 545Hc) - MyBinding DC-545HC Service Manual

!1
Remove the E rings from the 4th roller (upper).
(2 positions)
!2
Remove the 4th roller (upper).
!3
Take out the 4 screws, and remove the center plate.
!4
Take out the 2 screws, and remove the PPS3
phototransistor.
Ref. Photodiode: Brown, blue
Phototransistor: white, blue

(7) Removing the Feed Solenoid

q
Remove the cover R unit from the DC-545.
w
Remove the connector for the solenoid. (1 position)
e
Take out the screw, and remove the Z collar.
r
Take out the 2 screws, and remove the bracket.
t
Take out the 3 screws, and remove the feed solenoid.
(8) Removing the Gate Solenoid (Without
using the DC-545HC)
q
Remove the cover L unit from the DC-545.
w
Remove the connector for the solenoid. (1 position)
e
Take out the 2 screws, and remove the bridge.
r
Take out the screw, and remove the Z collar.
t
Take out the 2 screws, and remove the bracket.
y
Take out the 3 screws, and remove the feed solenoid.
\See page 49
\See page 50
89
Center Plate
Screws
Z Collar & Screw
Connector
Z Collar & Screw
Bracket
& Screws
. Electric Section
