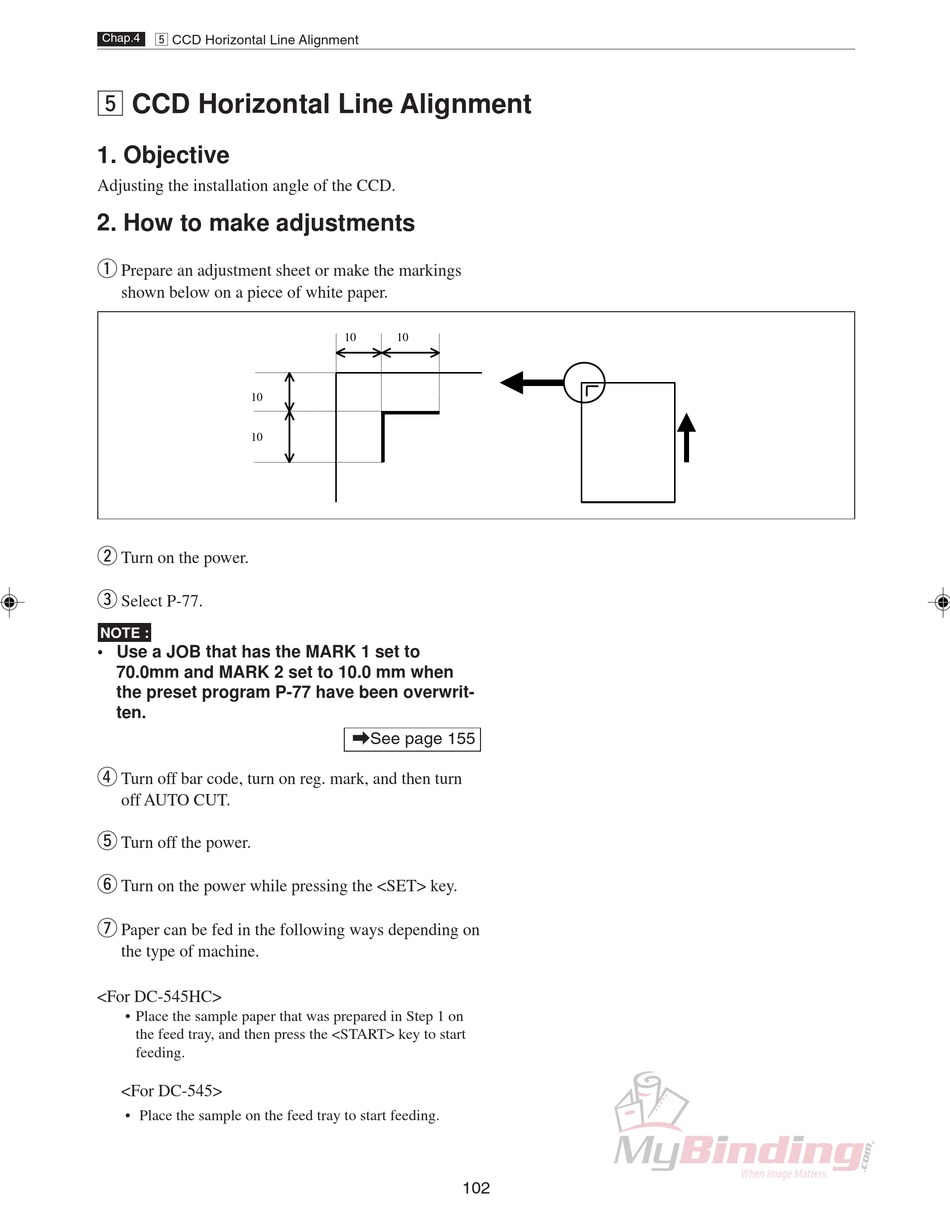

b CCD Horizontal Line Alignment
Chap.4
b CCD Horizontal Line Alignment

1. Objective

Adjusting the installation angle of the CCD.

2. How to make adjustments

q
Prepare an adjustment sheet or make the markings
shown below on a piece of white paper.
10
10
w
Turn on the power.
e
Select P-77.
NOTE :
• Use a JOB that has the MARK 1 set to
70.0mm and MARK 2 set to 10.0 mm when
the preset program P-77 have been overwrit-
ten.
r
Turn off bar code, turn on reg. mark, and then turn
off AUTO CUT.
t
Turn off the power.
y
Turn on the power while pressing the <SET> key.
u
Paper can be fed in the following ways depending on
the type of machine.
<For DC-545HC>
• Place the sample paper that was prepared in Step 1 on
the feed tray, and then press the <START> key to start
feeding.
<For DC-545>
• Place the sample on the feed tray to start feeding.
10 10
\See page 155
102
