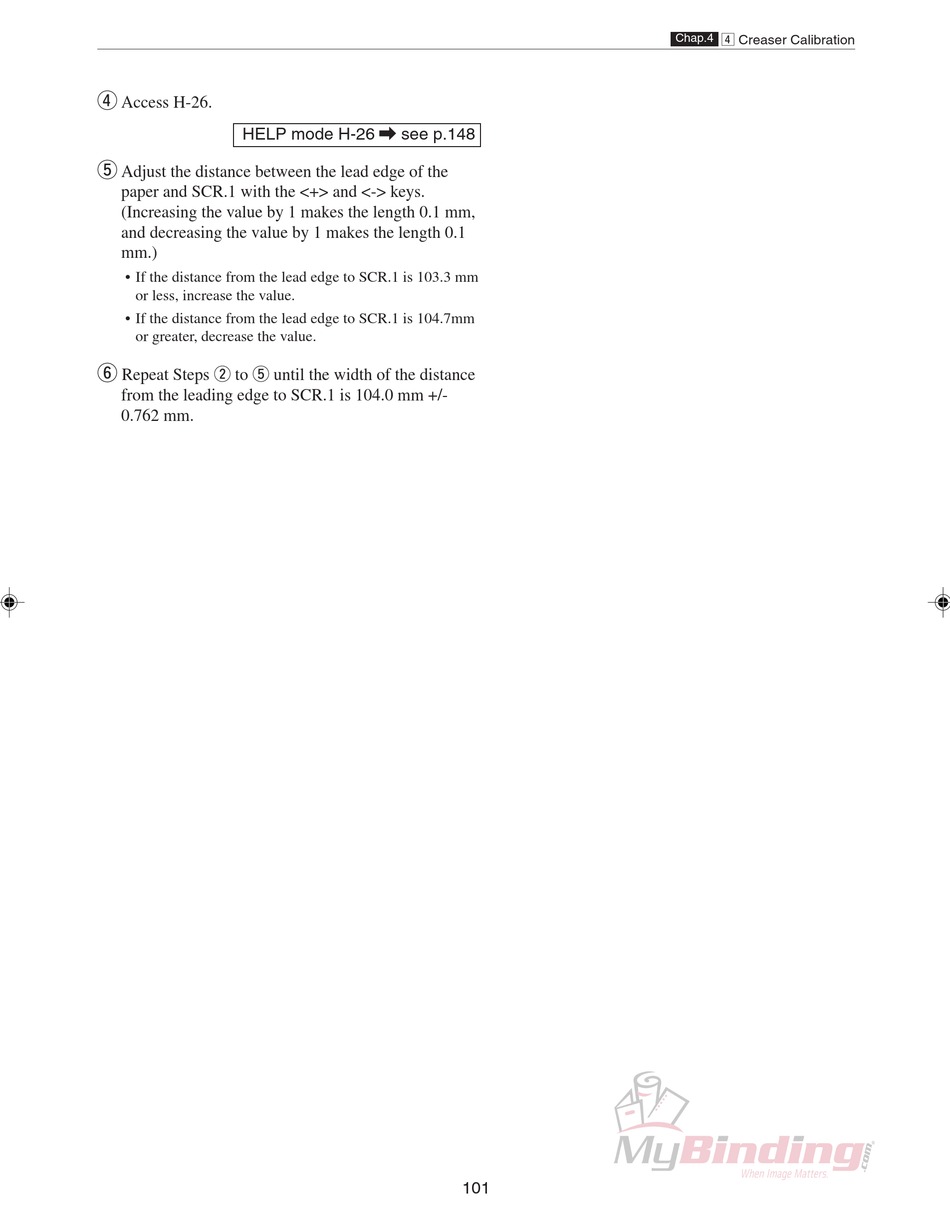

MyBinding DC-545HC Service Manual page 104

r
Access H-26.
HELP mode H-26 \ see p.148
t
Adjust the distance between the lead edge of the
paper and SCR.1 with the <+> and <-> keys.
(Increasing the value by 1 makes the length 0.1 mm,
and decreasing the value by 1 makes the length 0.1
mm.)
• If the distance from the lead edge to SCR.1 is 103.3 mm
or less, increase the value.
• If the distance from the lead edge to SCR.1 is 104.7mm
or greater, decrease the value.
y
Repeat Steps w to t until the width of the distance
from the leading edge to SCR.1 is 104.0 mm +/-
0.762 mm.
101
v Creaser Calibration
Chap.4
