MyBinding DC-545HC Service Manual page 165

(2) AF-100
DC-545
DC-545
MAIN P.W.B.
N4-V300*
N4-W124*
CN12
BROWN
1
WHITE
2
WHITE
3
GREEN
4
GREEN
5
GRAY
6
BLACK
7
RIGHT BLUE
8
YELLOW
9
PINK
10
RED
11
BLUE
12
PURPLE
13
ORANGE
14
NH14(JST)
CN11
1
2
3
4
5
6
7
8 YELLOW GREEN
9 WHITE
10
BLUE
11
12
13
14
15
16
17
18
19 BROWN
20
21
22
23
24
HIROSE24
FAN(BLOWER) ELEVATOR
N4-X105* N4-X106*
CN1
CN2
N4-W202*
BROWN
1
NH10
ORANGE
2
WHITE
3
GREEN
4
BLUE
5
RIGHT BLUE
6
YELLOW
7
YELLOW
8
PURPLE
9
ORANGE N4-W201*
10
RED
11
BLACK
12
WHITE
13
YELLOW
14
PINK
15
GREEN
16
BLUE
17
BROWN
18
NH18
N4-W209*
ELEVATOR ELEVATOR
LOWER SW UPPER SW
LA028 LA028
FEED MOTOR FAN(SUCTION)
N4-X104* N4-X105*
CN3
N4-W203*
NH5
FEED P.W.B.
N4-V303*
CN4
N4-W202*
NH15
N4-W205*
PAPER LEVEL COVER SW
N4-W207*
SENSOR
CA021
Chap.8
AF-100
SHUTTER
SOLENOIDO
N4-W204*
N4-X101*
RIGHT BLUE RED
RIGHT BLUE RED
WHITE WHITE
BLUE BLUE
FEED PPS
TRANSISTOR
N4-W206*
FEED PPS
PHOTO DIODE
N4-W109*
162

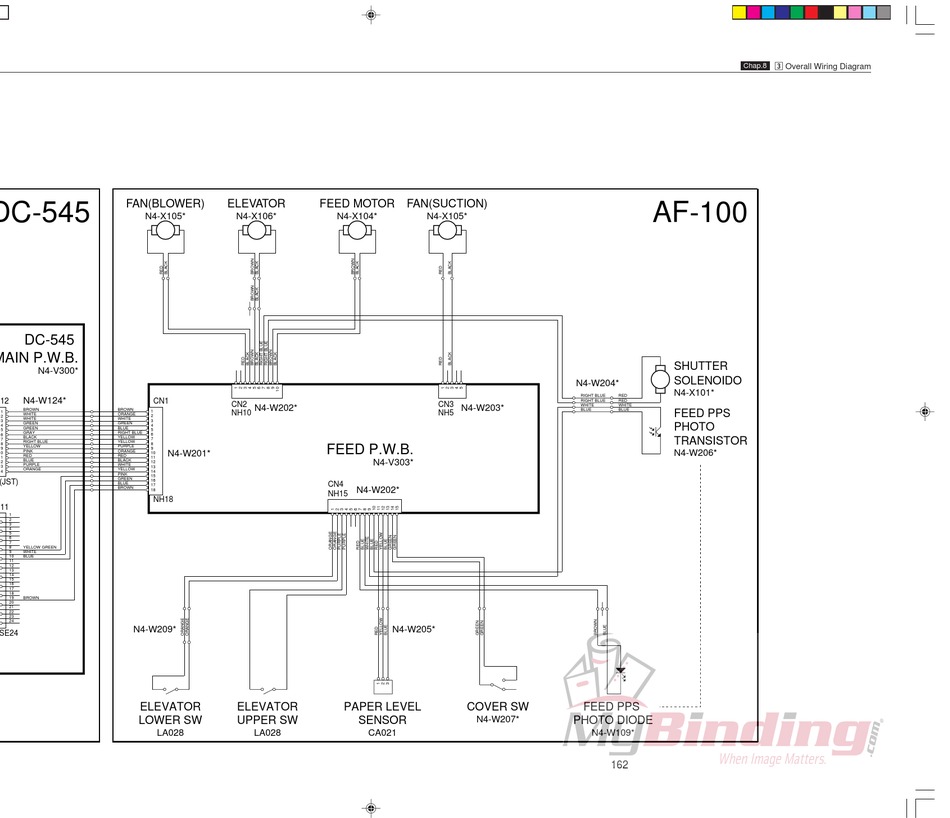

c Overall Wiring Diagram
