v Margin Slitter Section
Chap.3

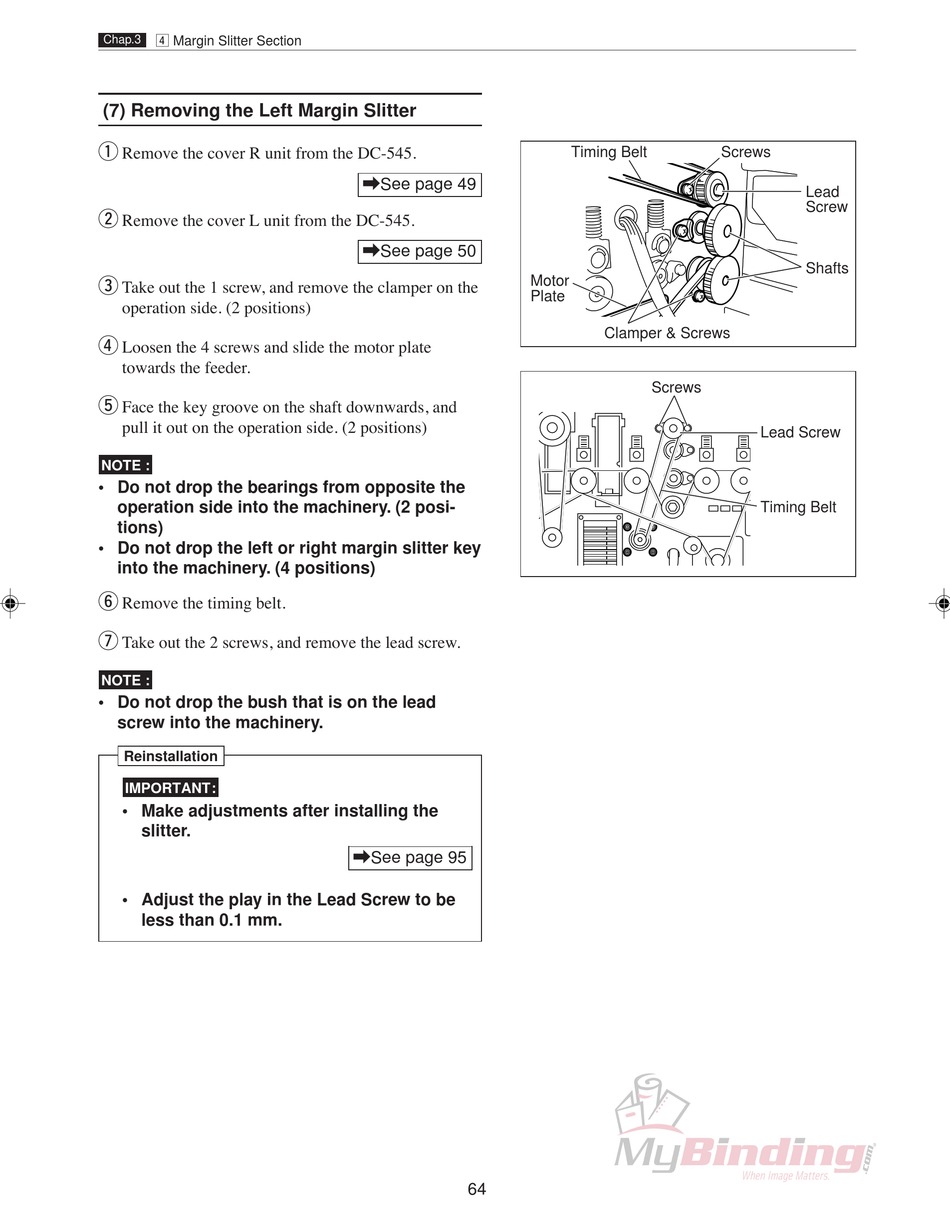

(7) Removing the Left Margin Slitter

q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the 1 screw, and remove the clamper on the
operation side. (2 positions)
r
Loosen the 4 screws and slide the motor plate
towards the feeder.
t
Face the key groove on the shaft downwards, and
pull it out on the operation side. (2 positions)
NOTE :
• Do not drop the bearings from opposite the
operation side into the machinery. (2 posi-
tions)
• Do not drop the left or right margin slitter key
into the machinery. (4 positions)
y
Remove the timing belt.
u
Take out the 2 screws, and remove the lead screw.
NOTE :
• Do not drop the bush that is on the lead
screw into the machinery.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
• Adjust the play in the Lead Screw to be
less than 0.1 mm.
\See page 49
\See page 50
\See page 95
64
Timing Belt
Motor
Plate
Clamper & Screws
Screws
Screws
Lead
Screw
Shafts
Lead Screw
Timing Belt
