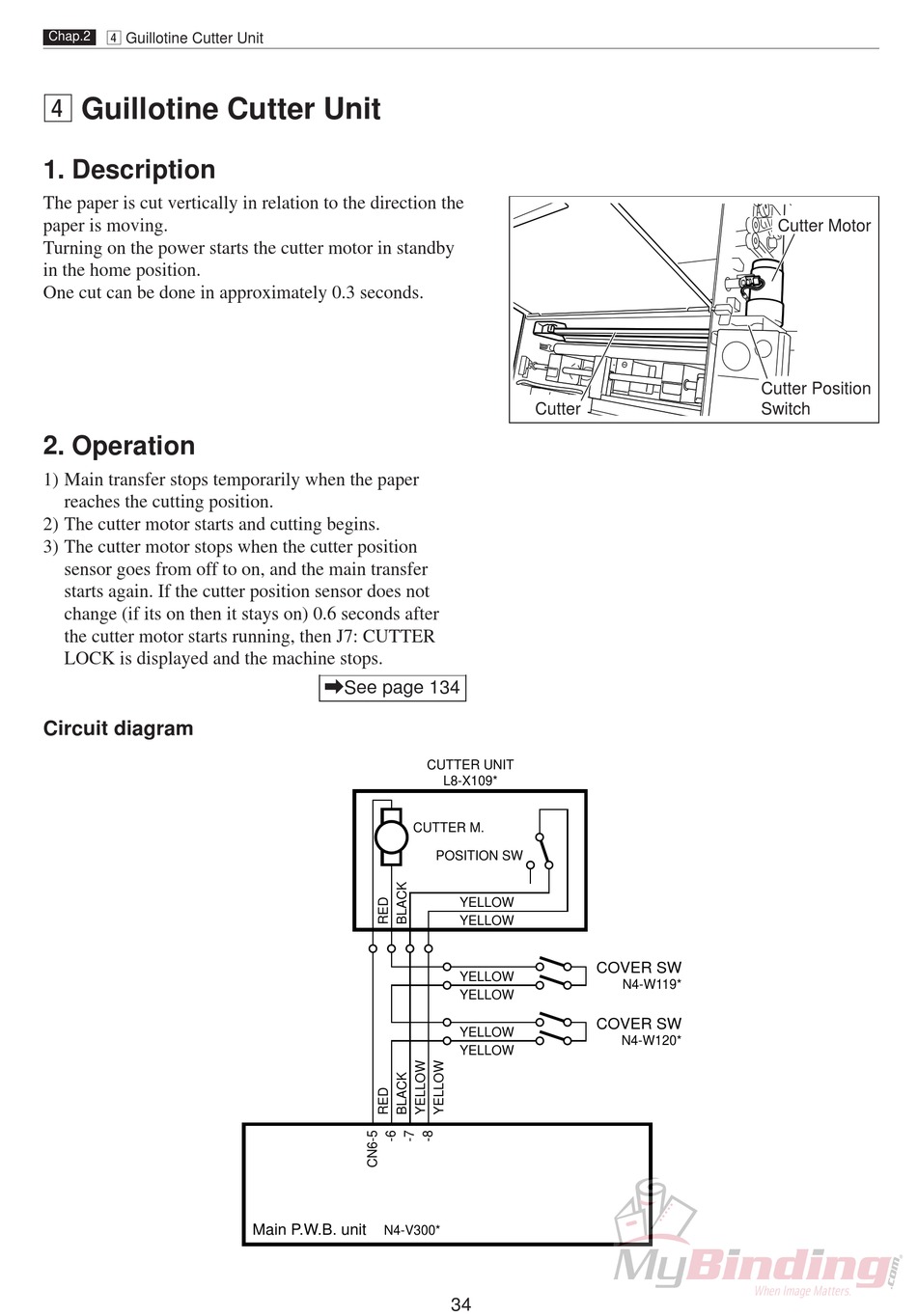

v Guillotine Cutter Unit
Chap.2
v Guillotine Cutter Unit

1. Description

The paper is cut vertically in relation to the direction the
paper is moving.
Turning on the power starts the cutter motor in standby
in the home position.
One cut can be done in approximately 0.3 seconds.

2. Operation

1) Main transfer stops temporarily when the paper
reaches the cutting position.
2) The cutter motor starts and cutting begins.
3) The cutter motor stops when the cutter position
sensor goes from off to on, and the main transfer
starts again. If the cutter position sensor does not
change (if its on then it stays on) 0.6 seconds after
the cutter motor starts running, then J7: CUTTER
LOCK is displayed and the machine stops.
Circuit diagram
\See page 134
CUTTER UNIT
CUTTER M.
Main P.W.B. unit
N4-V300*
Cutter
L8-X109*
POSITION SW
YELLOW
YELLOW
COVER SW
YELLOW
YELLOW
COVER SW
YELLOW
YELLOW
34
Cutter Motor
Cutter Position
Switch
N4-W119*
N4-W120*
