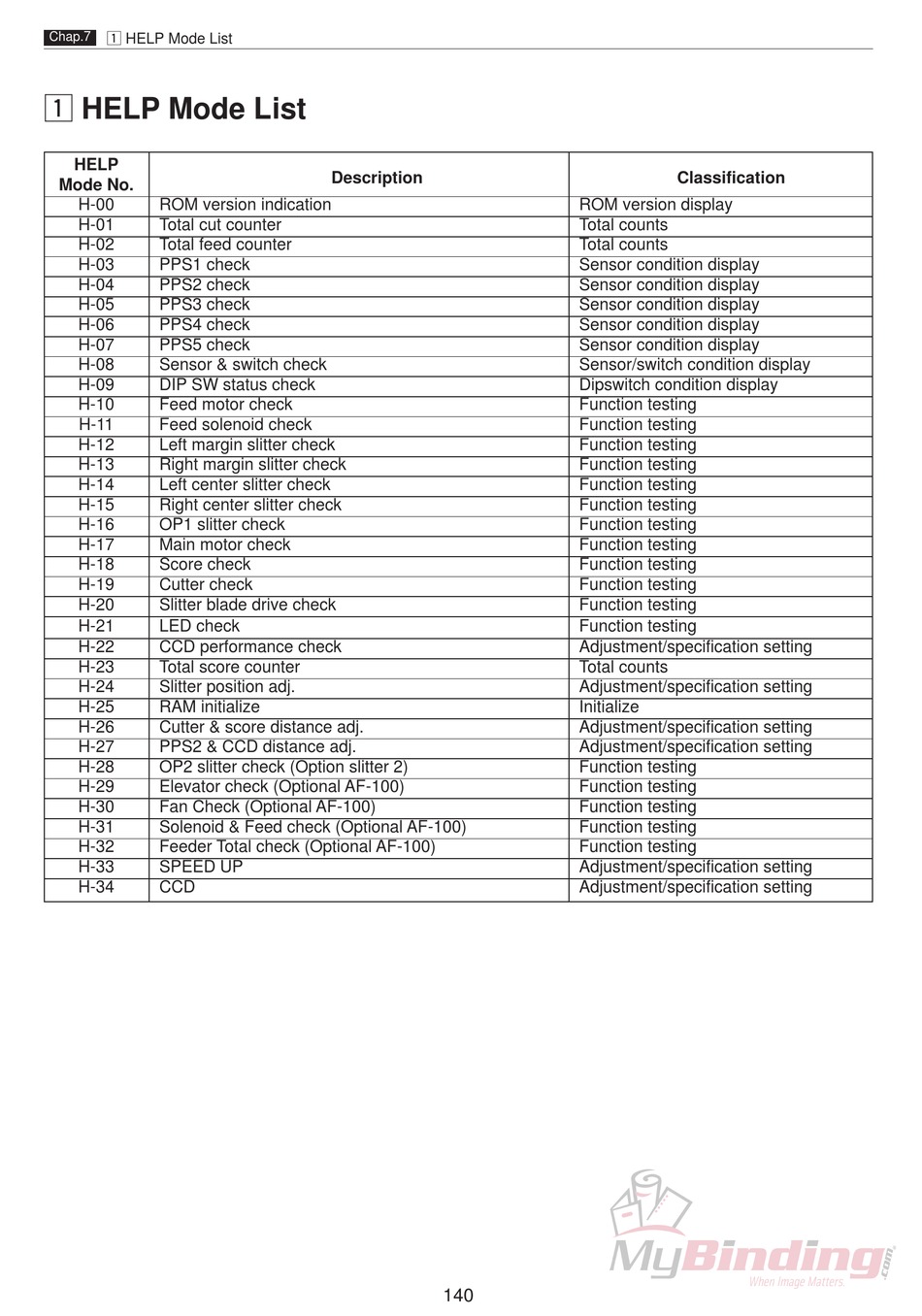

z HELP Mode List
Chap.7
z HELP Mode List
HELP
Mode No.
H-00 ROM version indication
H-01 Total cut counter
H-02 Total feed counter
H-03 PPS1 check
H-04 PPS2 check
H-05 PPS3 check
H-06 PPS4 check
H-07 PPS5 check
H-08 Sensor & switch check
H-09 DIP SW status check
H-10 Feed motor check
H-11 Feed solenoid check
H-12 Left margin slitter check
H-13 Right margin slitter check
H-14 Left center slitter check
H-15 Right center slitter check
H-16 OP1 slitter check
H-17 Main motor check
H-18 Score check
H-19 Cutter check
H-20 Slitter blade drive check
H-21 LED check
H-22 CCD performance check
H-23 Total score counter
H-24 Slitter position adj.
H-25 RAM initialize
H-26 Cutter & score distance adj.
H-27 PPS2 & CCD distance adj.
H-28 OP2 slitter check (Option slitter 2)
H-29 Elevator check (Optional AF-100)
H-30 Fan Check (Optional AF-100)
H-31 Solenoid & Feed check (Optional AF-100)
H-32 Feeder Total check (Optional AF-100)
H-33 SPEED UP
H-34 CCD
Description
140
Classification
ROM version display
Total counts
Total counts
Sensor condition display
Sensor condition display
Sensor condition display
Sensor condition display
Sensor condition display
Sensor/switch condition display
Dipswitch condition display
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Function testing
Adjustment/specification setting
Total counts
Adjustment/specification setting
Initialize
Adjustment/specification setting
Adjustment/specification setting
Function testing
Function testing
Function testing
Function testing
Function testing
Adjustment/specification setting
Adjustment/specification setting
