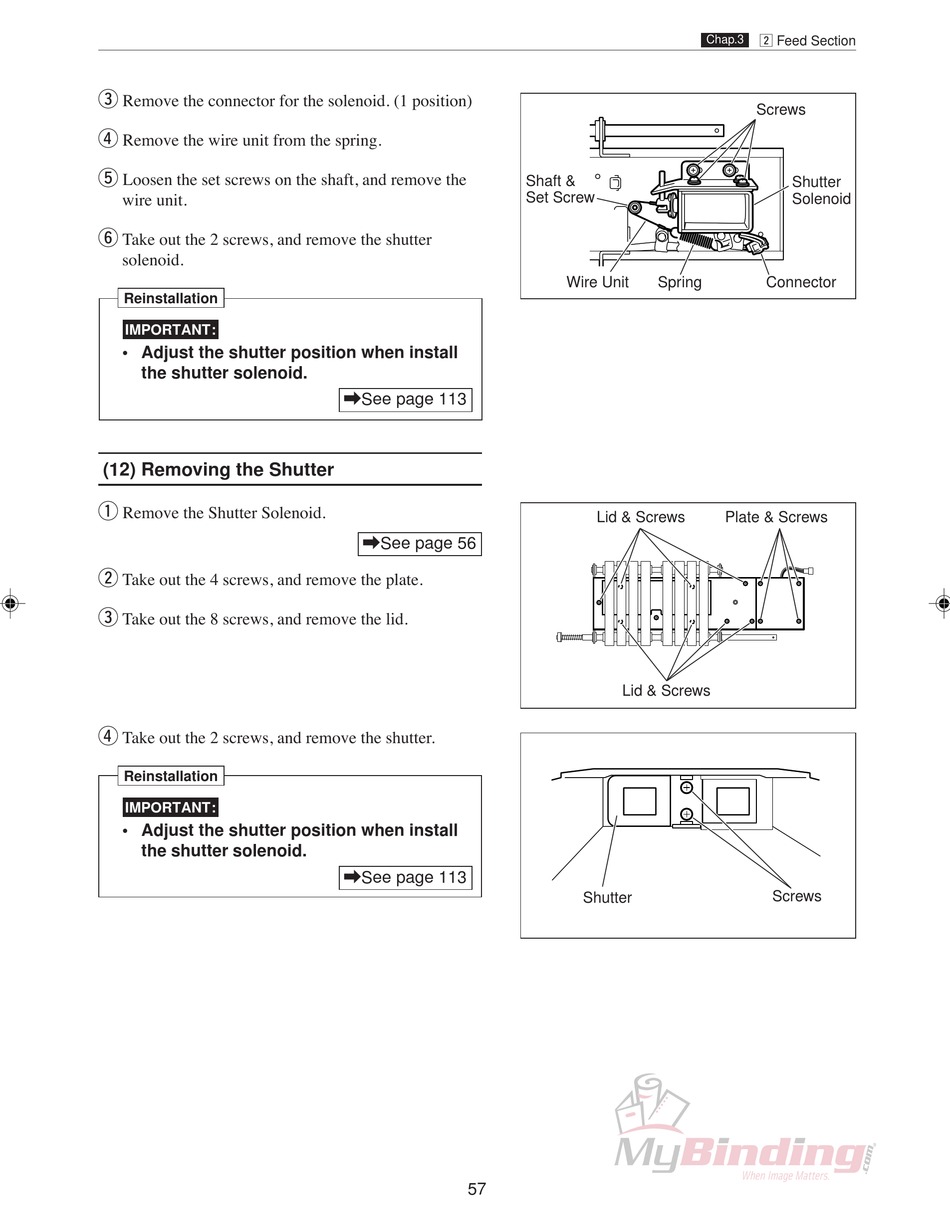

Removing The Shutter - MyBinding DC-545HC Service Manual

e
Remove the connector for the solenoid. (1 position)
r
Remove the wire unit from the spring.
t
Loosen the set screws on the shaft, and remove the
wire unit.
y
Take out the 2 screws, and remove the shutter
solenoid.
Reinstallation
IMPORTANT:
• Adjust the shutter position when install
the shutter solenoid.

(12) Removing the Shutter

q
Remove the Shutter Solenoid.
w
Take out the 4 screws, and remove the plate.
e
Take out the 8 screws, and remove the lid.
r
Take out the 2 screws, and remove the shutter.
Reinstallation
IMPORTANT:
• Adjust the shutter position when install
the shutter solenoid.
\See page 113
\See page 56
\See page 113
57
Shaft &
Set Screw
Wire Unit Spring
Lid & Screws
Lid & Screws
Shutter
x Feed Section
Chap.3
Screws
Shutter
Solenoid
Connector
Plate & Screws
Screws
