E5: Slitter Error; E6: Data Error - MyBinding DC-545HC Service Manual

z Troubleshooting Guide
Chap.6

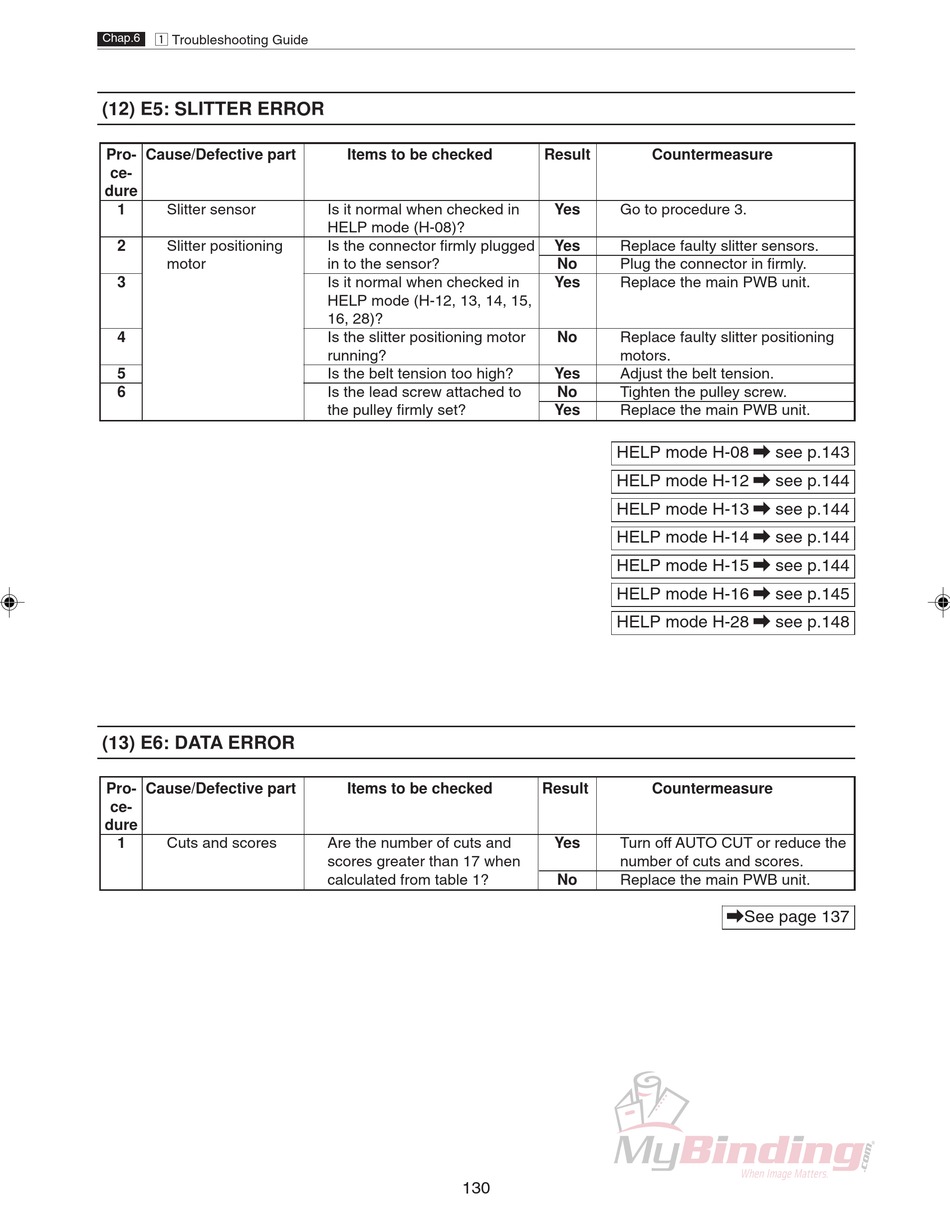

(12) E5: SLITTER ERROR

Pro- Cause/Defective part
ce-
dure
1 Slitter sensor
2 Slitter positioning
motor
3
4
5
6

(13) E6: DATA ERROR

Pro- Cause/Defective part
ce-
dure
1 Cuts and scores
Items to be checked
Is it normal when checked in
HELP mode (H-08)?
Is the connector firmly plugged
in to the sensor?
Is it normal when checked in
HELP mode (H-12, 13, 14, 15,
16, 28)?
Is the slitter positioning motor
running?
Is the belt tension too high?
Is the lead screw attached to
the pulley firmly set?
Items to be checked
Are the number of cuts and
scores greater than 17 when
calculated from table 1?
130
Result Countermeasure
Yes Go to procedure 3.
Yes Replace faulty slitter sensors.
No Plug the connector in firmly.
Yes Replace the main PWB unit.
No Replace faulty slitter positioning
motors.
Yes Adjust the belt tension.
No Tighten the pulley screw.
Yes Replace the main PWB unit.
HELP mode H-08 \ see p.143
HELP mode H-12 \ see p.144
HELP mode H-13 \ see p.144
HELP mode H-14 \ see p.144
HELP mode H-15 \ see p.144
HELP mode H-16 \ see p.145
HELP mode H-28 \ see p.148
Result Countermeasure
Yes Turn off AUTO CUT or reduce the
number of cuts and scores.
No Replace the main PWB unit.
\See page 137
