m Center Slitter Section
Chap.3

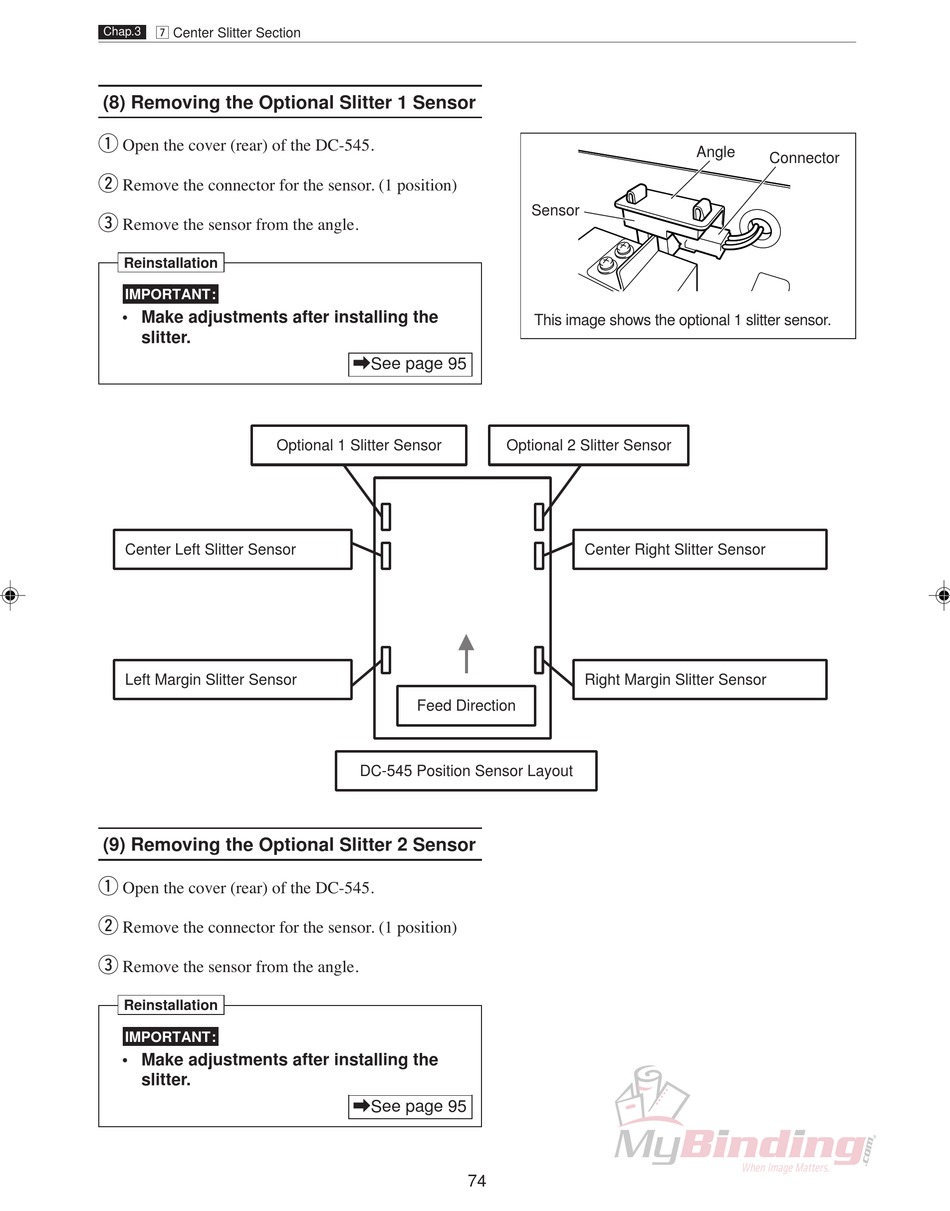

(8) Removing the Optional Slitter 1 Sensor

q
Open the cover (rear) of the DC-545.
w
Remove the connector for the sensor. (1 position)
e
Remove the sensor from the angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
Center Left Slitter Sensor
Left Margin Slitter Sensor

(9) Removing the Optional Slitter 2 Sensor

q
Open the cover (rear) of the DC-545.
w
Remove the connector for the sensor. (1 position)
e
Remove the sensor from the angle.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
slitter.
\See page 95
Optional 1 Slitter Sensor
Feed Direction
DC-545 Position Sensor Layout
\See page 95
Sensor
This image shows the optional 1 slitter sensor.
Optional 2 Slitter Sensor
Center Right Slitter Sensor
Right Margin Slitter Sensor
74
Angle
Connector
