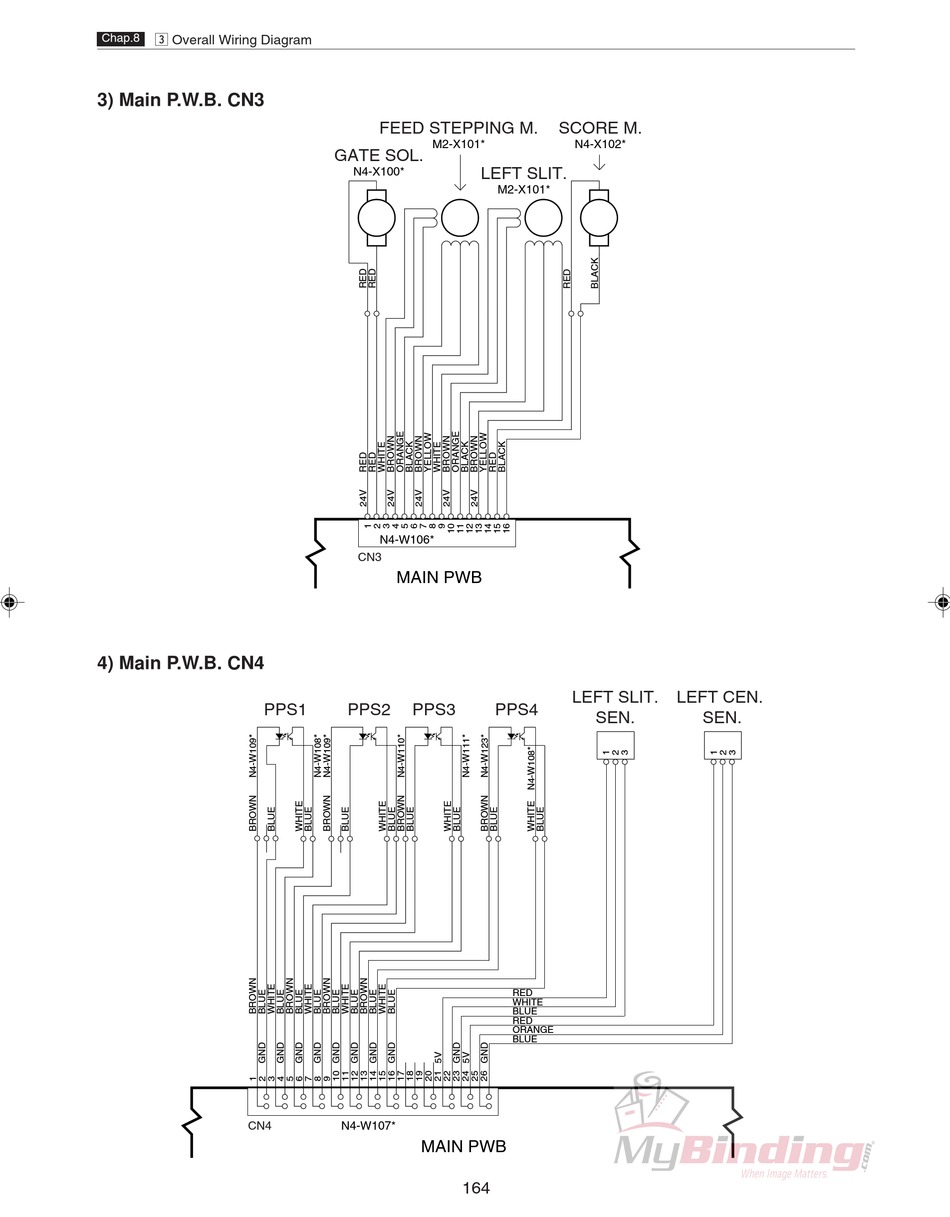

c Overall Wiring Diagram
Chap.8
3) Main P.W.B. CN3
4) Main P.W.B. CN4
CN4
FEED STEPPING M.
GATE SOL.
N4-X100*
N4-W106*
CN3
MAIN PWB
PPS1
PPS2
PPS3
N4-W107*
MAIN PWB
SCORE M.
M2-X101*
N4-X102*
LEFT SLIT.
M2-X101*
LEFT SLIT.
PPS4
RED
WHITE
BLUE
RED
ORANGE
BLUE
164
LEFT CEN.
SEN.
SEN.
Table of
Contents
Previous
Page
Next
Page
1
...
166
167
168
169
