z Paper Feed Unit
Chap.2

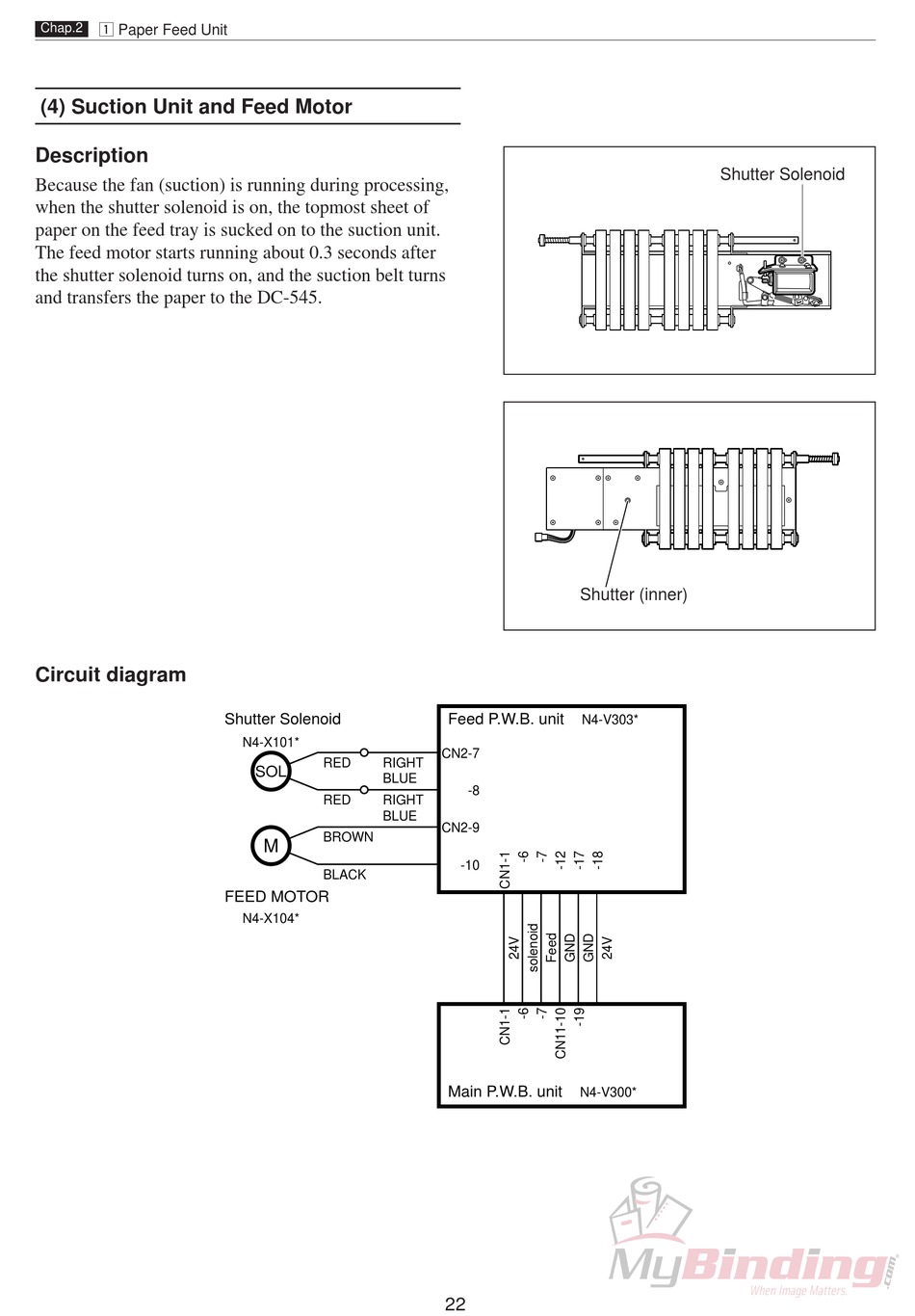

(4) Suction Unit and Feed Motor

Description
Because the fan (suction) is running during processing,
when the shutter solenoid is on, the topmost sheet of
paper on the feed tray is sucked on to the suction unit.
The feed motor starts running about 0.3 seconds after
the shutter solenoid turns on, and the suction belt turns
and transfers the paper to the DC-545.
Circuit diagram
Shutter Solenoid
N4-X101*
RED RIGHT
SOL
BLUE
RED RIGHT
BLUE
BROWN
M
BLACK
FEED MOTOR
N4-X104*
Shutter (inner)
Feed P.W.B. unit
N4-V303*
CN2-7
-8
CN2-9
-10
Main P.W.B. unit
N4-V300*
22
Shutter Solenoid
