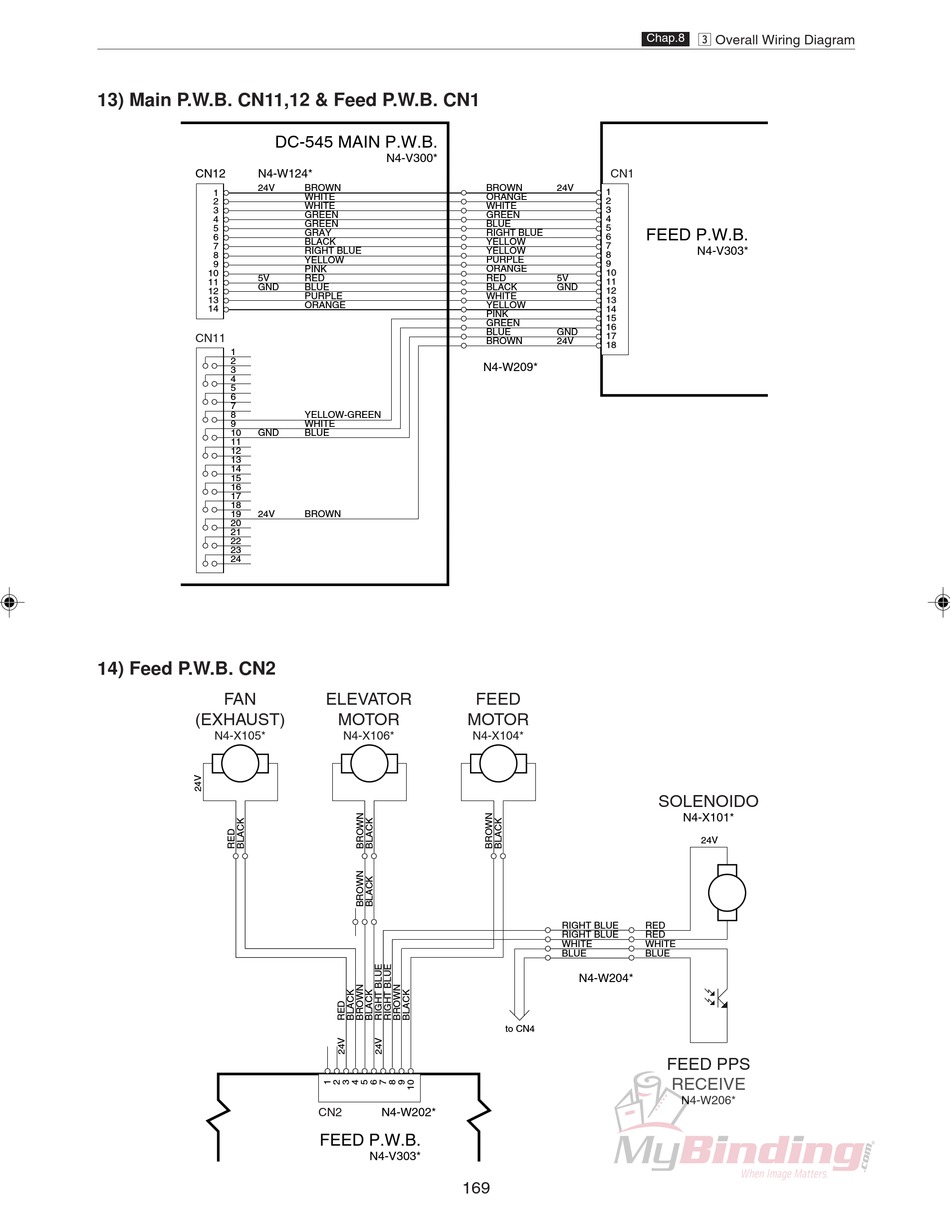

13) Main P.W.B. CN11,12 & Feed P.W.B. CN1
CN12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CN11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
14) Feed P.W.B. CN2
FAN
(EXHAUST)
N4-X105*
DC-545 MAIN P.W.B.
N4-V300*
N4-W124*
24V BROWN
WHITE
WHITE
GREEN
GREEN
GRAY
BLACK
RIGHT BLUE
YELLOW
PINK
5V RED
GND BLUE
PURPLE
ORANGE
YELLOW-GREEN
WHITE
GND BLUE
24V BROWN
ELEVATOR
MOTOR
N4-X106*
CN2 N4-W202*
FEED P.W.B.
N4-V303*
CN1
BROWN 24V
1
ORANGE
2
WHITE
3
GREEN
4
BLUE
5
RIGHT BLUE
6
YELLOW
7
YELLOW
8
PURPLE
9
ORANGE
10
RED 5V
11
BLACK GND
12
WHITE
13
YELLOW
14
PINK
15
GREEN
16
BLUE GND
17
BROWN 24V
18
N4-W209*
FEED
MOTOR
N4-X104*
RIGHT BLUE
RIGHT BLUE
WHITE
BLUE
N4-W204*
to CN4
169
c Overall Wiring Diagram
Chap.8
FEED P.W.B.
N4-V303*
SOLENOIDO
N4-X101*
24V
RED
RED
WHITE
BLUE
FEED PPS
RECEIVE
N4-W206*
