n Creaser Section
Chap.3

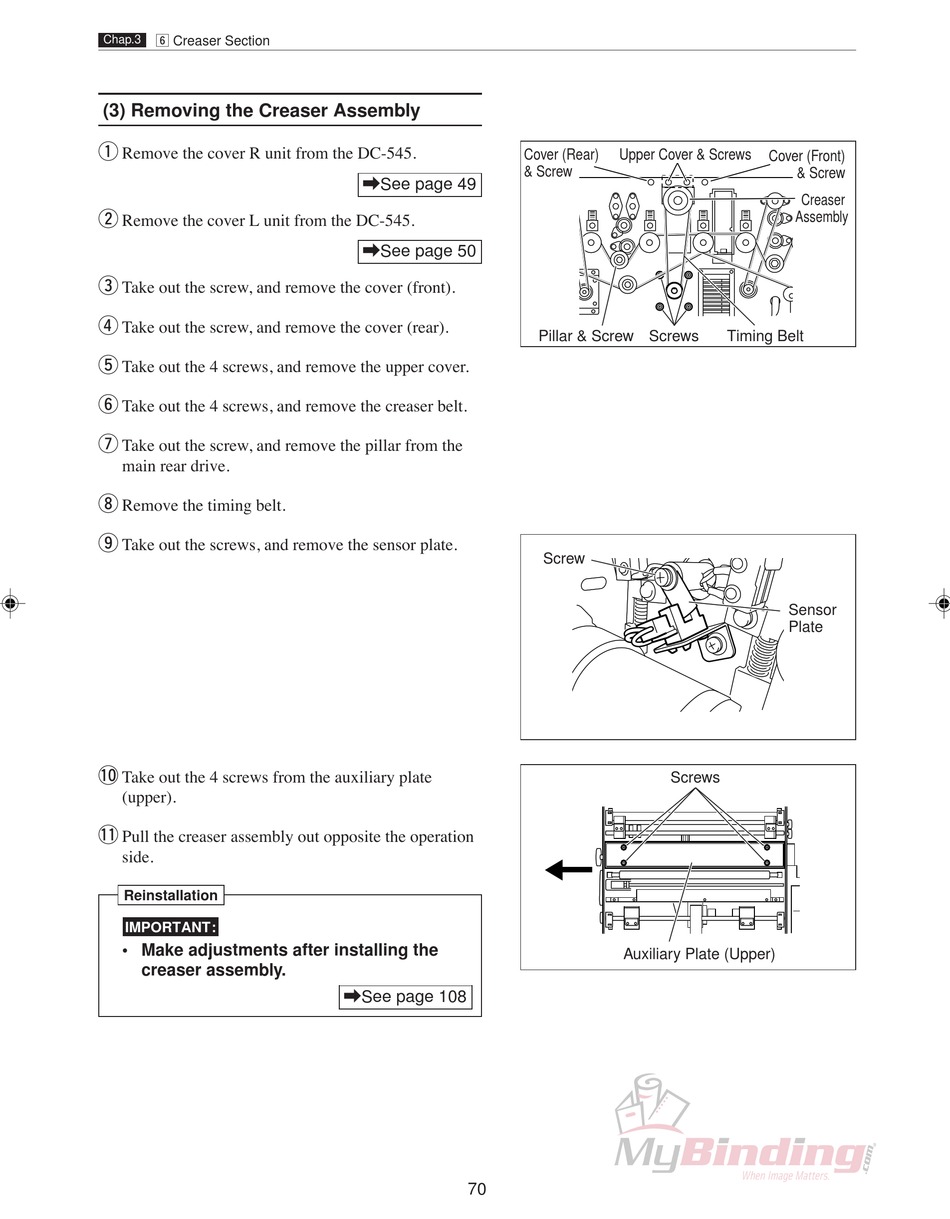

(3) Removing the Creaser Assembly

q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the screw, and remove the cover (front).
r
Take out the screw, and remove the cover (rear).
t
Take out the 4 screws, and remove the upper cover.
y
Take out the 4 screws, and remove the creaser belt.
u
Take out the screw, and remove the pillar from the
main rear drive.
i
Remove the timing belt.
o
Take out the screws, and remove the sensor plate.
!0
Take out the 4 screws from the auxiliary plate
(upper).
!1
Pull the creaser assembly out opposite the operation
side.
Reinstallation
IMPORTANT:
• Make adjustments after installing the
creaser assembly.
\See page 49
\See page 50
\See page 108
70
Cover (Rear) Upper Cover & Screws
& Screw
Pillar & Screw Screws
Screw
Screws
Auxiliary Plate (Upper)
Cover (Front)
& Screw
Creaser
Assembly
Timing Belt
Sensor
Plate
