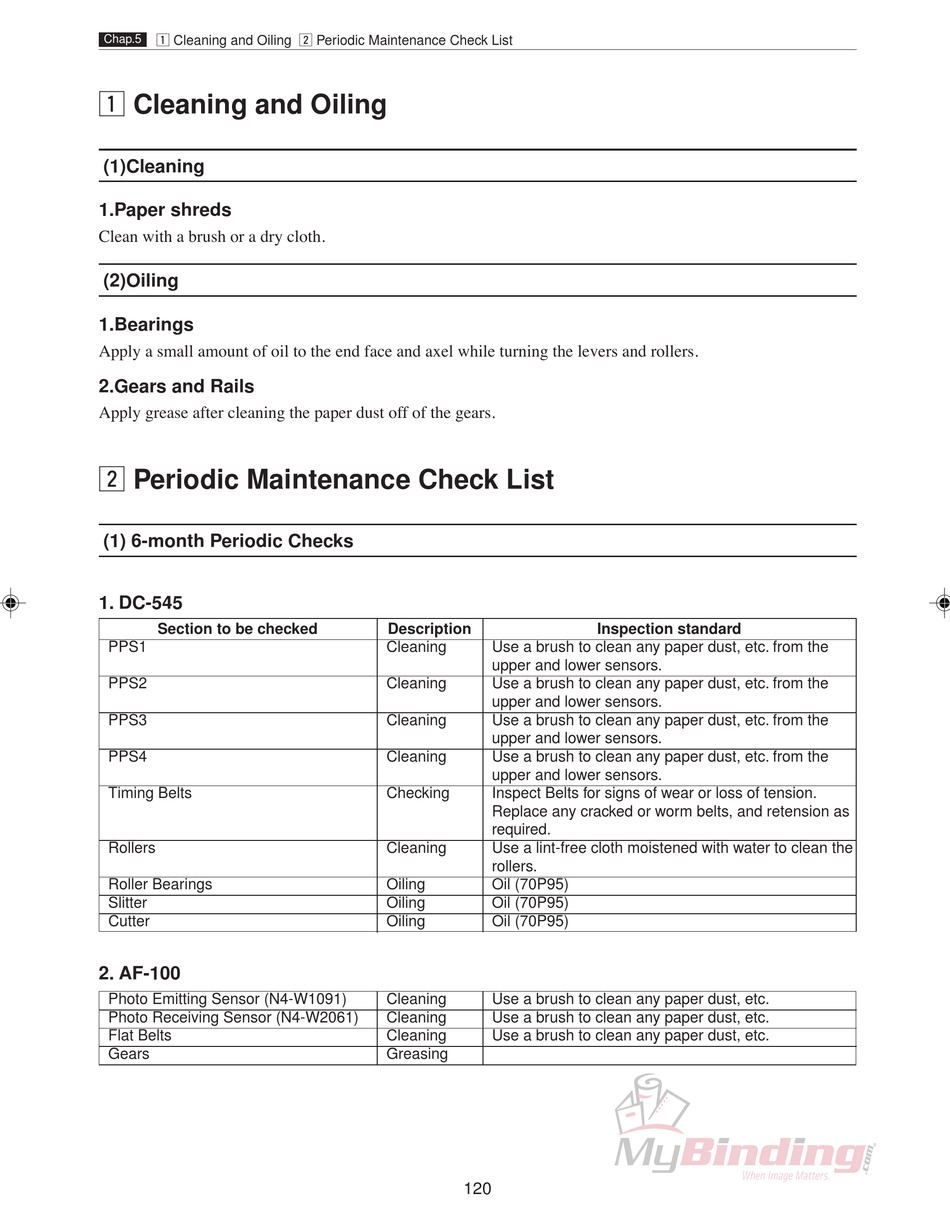

z Cleaning and Oiling x Periodic Maintenance Check List
Chap.5
z Cleaning and Oiling
(1)Cleaning
1.Paper shreds
Clean with a brush or a dry cloth.
(2)Oiling
1.Bearings
Apply a small amount of oil to the end face and axel while turning the levers and rollers.
2.Gears and Rails
Apply grease after cleaning the paper dust off of the gears.
x Periodic Maintenance Check List
(1) 6-month Periodic Checks
1. DC-545
Section to be checked
PPS1
PPS2
PPS3
PPS4
Timing Belts
Rollers
Roller Bearings
Slitter
Cutter
2. AF-100
Photo Emitting Sensor (N4-W1091)
Photo Receiving Sensor (N4-W2061)
Flat Belts
Gears
Description
Cleaning Use a brush to clean any paper dust, etc. from the
upper and lower sensors.
Cleaning Use a brush to clean any paper dust, etc. from the
upper and lower sensors.
Cleaning Use a brush to clean any paper dust, etc. from the
upper and lower sensors.
Cleaning Use a brush to clean any paper dust, etc. from the
upper and lower sensors.
Checking Inspect Belts for signs of wear or loss of tension.
Replace any cracked or worm belts, and retension as
required.
Cleaning Use a lint-free cloth moistened with water to clean the
rollers.
Oiling Oil (70P95)
Oiling Oil (70P95)
Oiling Oil (70P95)
Cleaning Use a brush to clean any paper dust, etc.
Cleaning Use a brush to clean any paper dust, etc.
Cleaning Use a brush to clean any paper dust, etc.
Greasing
120
Inspection standard
