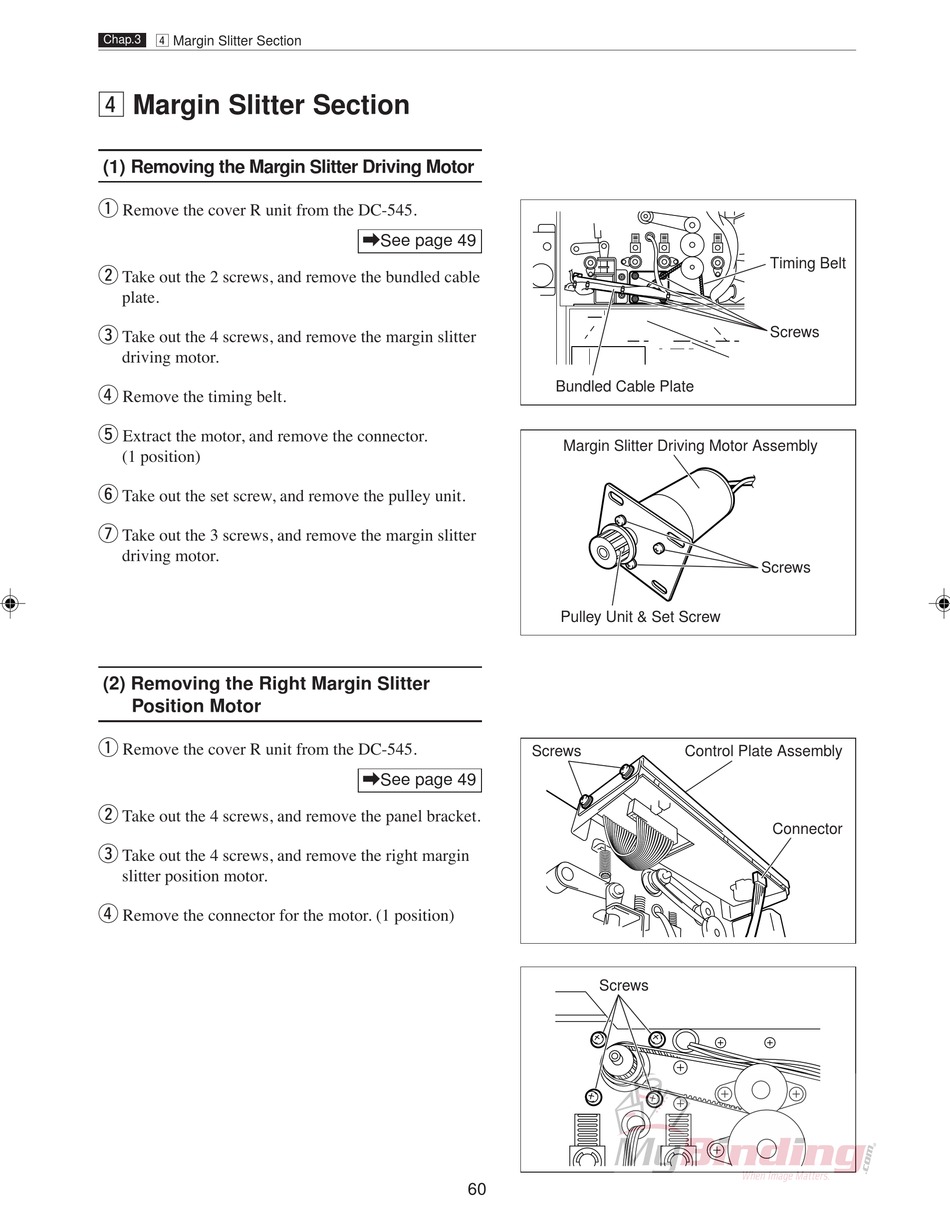

v Margin Slitter Section
Chap.3
v Margin Slitter Section

(1) Removing the Margin Slitter Driving Motor

q
Remove the cover R unit from the DC-545.
w
Take out the 2 screws, and remove the bundled cable
plate.
e
Take out the 4 screws, and remove the margin slitter
driving motor.
r
Remove the timing belt.
t
Extract the motor, and remove the connector.
(1 position)
y
Take out the set screw, and remove the pulley unit.
u
Take out the 3 screws, and remove the margin slitter
driving motor.
(2) Removing the Right Margin Slitter
Position Motor
q
Remove the cover R unit from the DC-545.
w
Take out the 4 screws, and remove the panel bracket.
e
Take out the 4 screws, and remove the right margin
slitter position motor.
r
Remove the connector for the motor. (1 position)
\See page 49
\See page 49
60
Bundled Cable Plate
Margin Slitter Driving Motor Assembly
Pulley Unit & Set Screw
Screws Control Plate Assembly
Screws
Timing Belt
Screws
Screws
Connector
